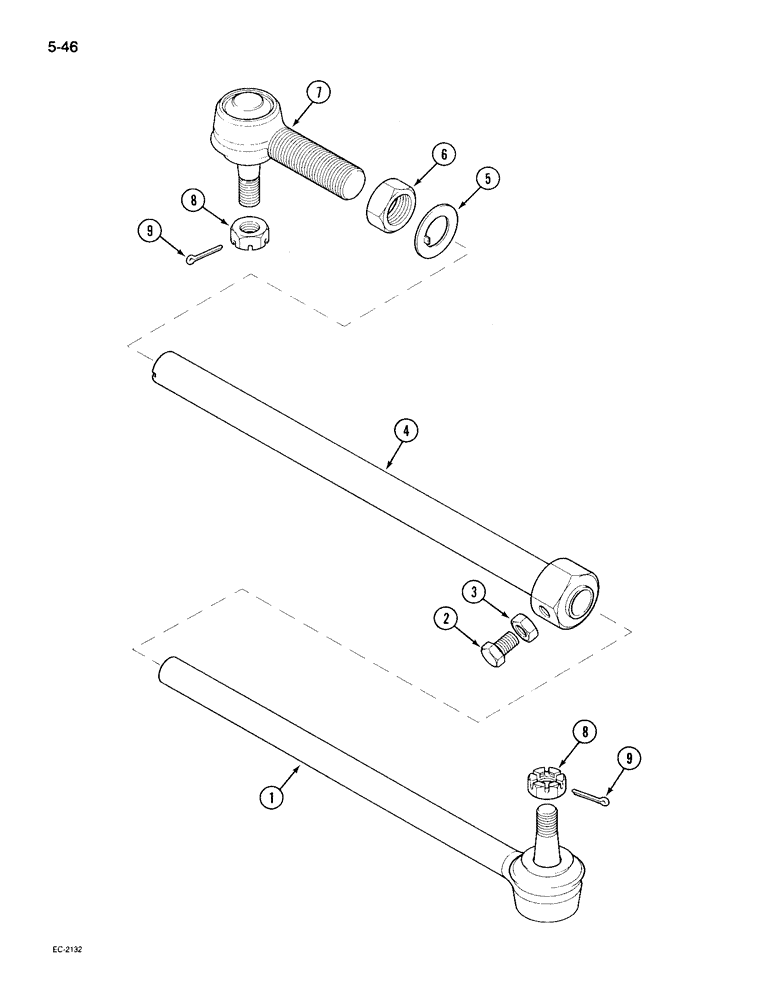

Запчасти Case IH 895 (5-46[2]) - TIE RODS, ADJUSTABLE FRONT AXLES, SWEPT BACK FRONT AXLE (05) - STEERING

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, adjustable (Replaced by 1538018C1), Includes: Refs. 1 - 7

2шт.

1

3129380R2

BALL JOINT

SOCKET - outer

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set

1шт.

3

3116410R1

LOCK NUT

NUT - lock

1шт.

4

3129379R1

TUBE,20.7 mm ID, 28 mm OD, 419 mm Length

ASSEMBLY - center

1шт.

5

3116411R1

LOCK WASHER

- tab

1шт.

6

3116412R1

LOCK NUT

NUT - lock

1шт.

7

3116407R3

BALL JOINT

SOCKET ASSEMBLY - inner

1шт.

8

25-139

SLOTTED NUT,9/16"-18, G5

NUT - hex slotted, 9/16 inch NF

2шт.

9

32-816

COTTER PIN,1/8" x 1"

PIN split (Cotter), 1/8" x 1"

2шт.
