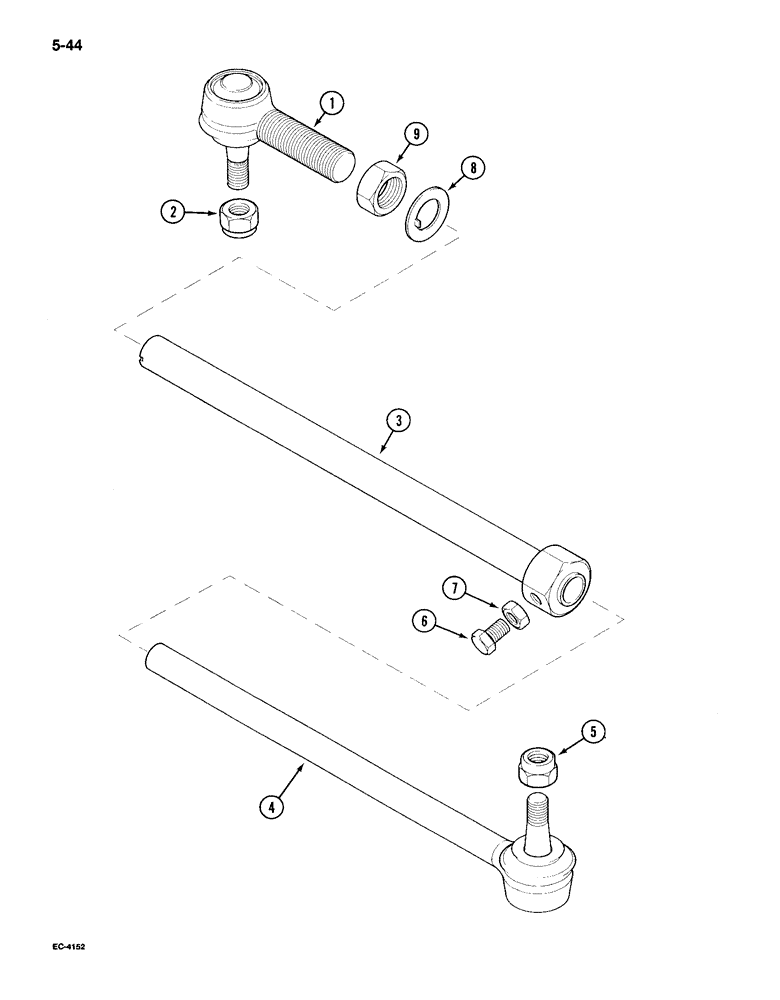

Запчасти Case IH 895 (5-44[2]) - TIE RODS, ADJUSTABLE FRONT AXLES, STRAIGHT FRONT AXLES 52-82 INCH (05) - STEERING

1538016C1

STEERING TIE-ROD

ROD ASSEMBLY - adjustable tie, Includes: Refs. 1 - 9

2шт.

1

1537872C1

BALL JOINT

SOCKET ASSEMBLY - inner, Includes: Ref. 2

1шт.

2

231-2409

LOCK NUT,9/16"-18, GB

NUT - 9/16-18 nyloc

2шт.

3

111526A1

STEERING TIE-ROD,20.75 mm ID, 28 mm OD, 412 mm Length

TUBE ASSEMBLY, 412 mm (16.22 in) Long

1шт.

4

1332805C2

BALL JOINT

SOCKET ASSEMBLY - outer, Includes: Ref. 5

1шт.

5

231-2409

LOCK NUT,9/16"-18, GB

NUT - 9/16-18 nyloc

2шт.

6

111527A1

SET SCREW

SCREW - locking

1шт.

7

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

1шт.

8

111528A1

WASHER

- tab

1шт.

9

111529A1

LOCK NUT

NUT - lock

1шт.
