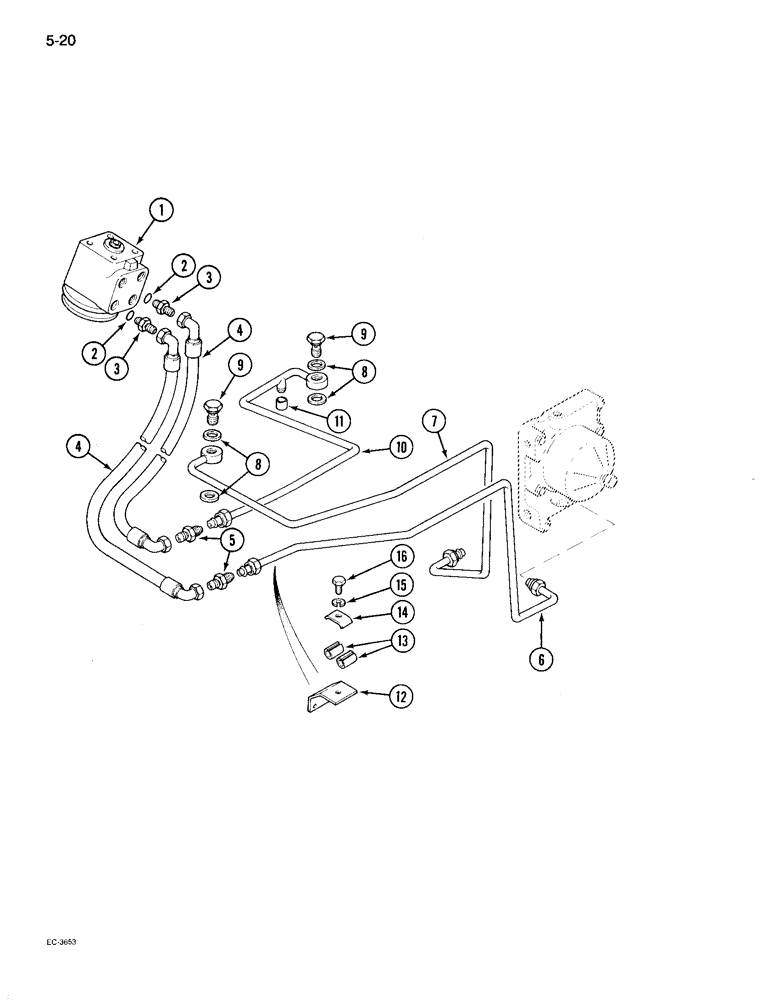

Запчасти Case IH 895 (5-20) - POWER STEERING TUBES, REAR, TWO WHEEL DRIVE TRACTORS WITH CAB, WITH TWO SPEED POWER SHIFT (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - integral, power steering (See Fig. 5-24)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss

2шт.

4

1502284C1

HOSE

- hydraulic, pressure and return

2шт.

5

1287927C2

FITTING,7.64 mm ID, 37.2 mm Length

UNION - tube

2шт.

6

99776C2

PIPE

TUBE ASSEMBLY - pressure,power steering

1шт.

7

1287929C3

PIPE,65 mm Length

TUBE ASSEMBLY - return, power shift

1шт.

8

109791A1

SEALING WASHER

SEAL - bonded

4шт.

9

1500102C2

SCREW,Hollow, Hex, 3/4" - 16 x 35mm

- hollow

2шт.

10

1287926C3

PIPE

TUBE ASSEMBLY - supply

1шт.

11

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch

1шт.

12

1500300C1

SUPPORT

BRACKET - power steering pipes, rear

1шт.

13

673171C1

RUBBER BUSHING

SLEEVE - rubber

2шт.

14

1500302C1

CLAMP

- tube

1шт.

15

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

16

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 20 mm

1шт.
