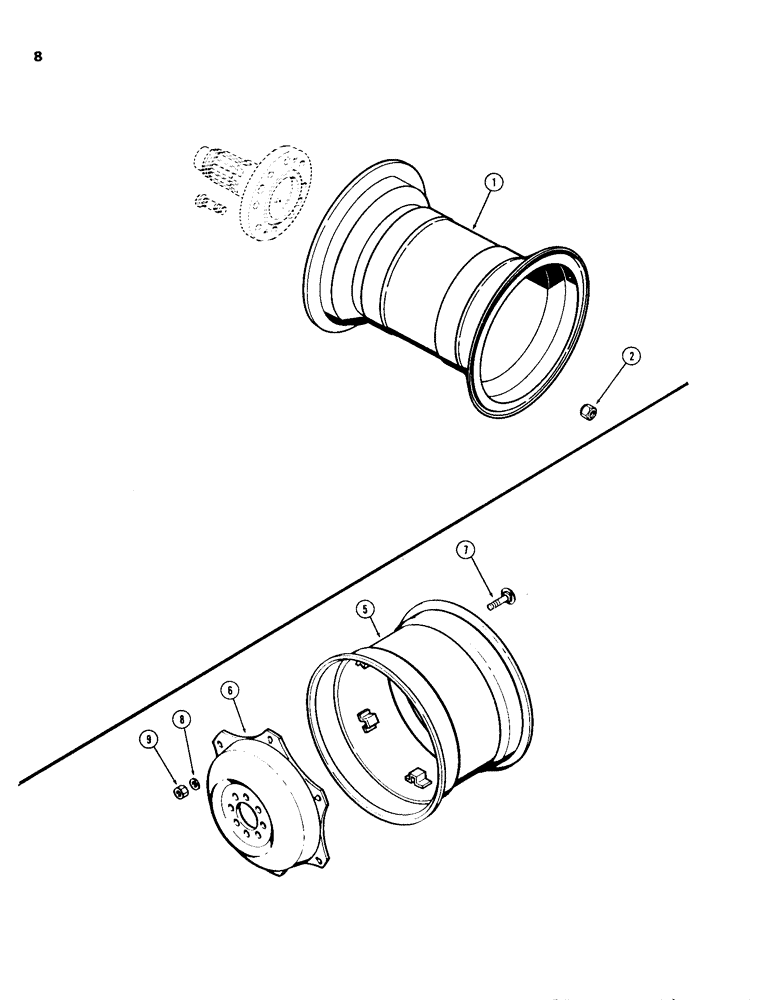

Запчасти Case IH 885 (08) - REAR WHEELS - 885 NARROW ORCHARD (06) - POWER TRAIN

1

A143945

WHEEL

rear, 16.1-16 LB D.C., takes 18.4 x 16.1 R1, R2 or R3 tires

2шт.

2

K617171

WHEEL NUT

wheel mounting, hex special, 5/8" NF

16шт.

5

A161257

RIM

rear wheel, W15L-24, takes 16.9 x 24 6 ply R1 tire, 885 California Orchard, 885 Michigan Orchard

2шт.

6

K301038

WHEEL

center, Replaces K907539, 885 California Orchard, 885 Michigan Orchard

2шт.

7

K611270

WHEEL BOLT,5/8" - 18 x 2.91", Gr 5

BOLT wheel mounting, special, 5/8 x 2-7/8" NF, 885 California Orchard, 885 Michigan Orchard

12шт.

8

K19475

WASHER

wheel bolt, 885 California Orchard, 885 Michigan Orchard

12шт.

9

129-565

SPECIAL NUT,5/8"-18, G5

hex, 5/8" NF, 885 California Orchard, 885 Michigan Orchard

12шт.
