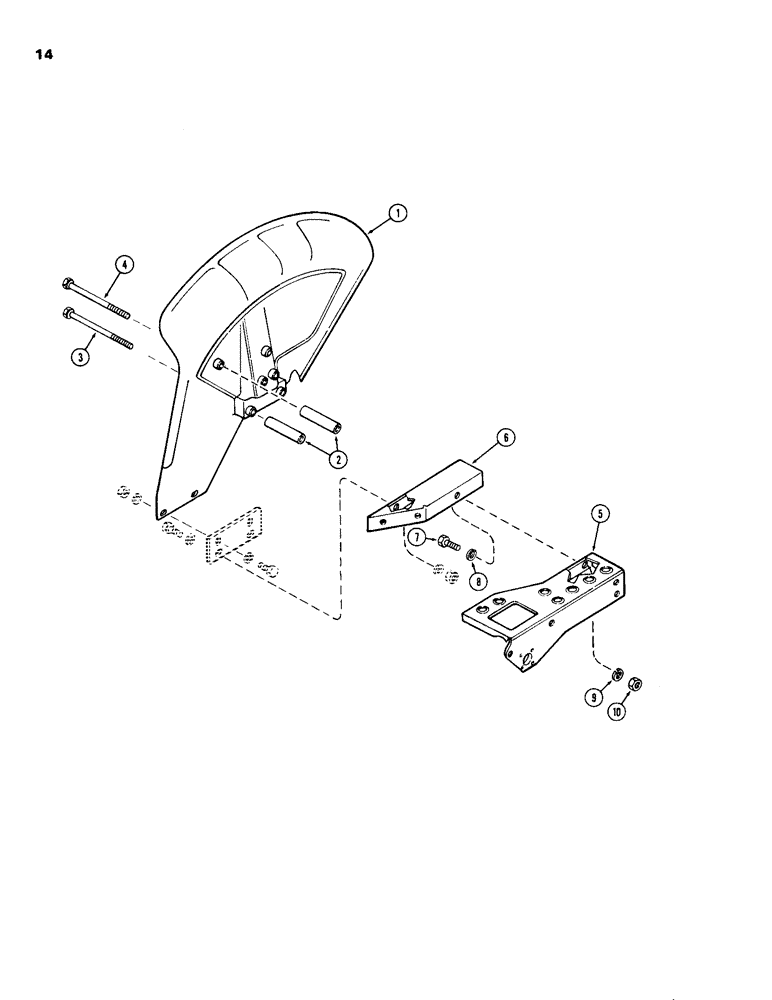

Запчасти Case IH 885 (14) - FENDER SPACING AND PLATFORM EXTENSION, 885 ORCHARD TRACTOR (09) - CHASSIS

1

A145182

FENDER rear RH, original equipment

1шт.

1

A145183

FENDER rear LH, original equipment

1шт.

2

A145139

SPACER fender

10шт.

3

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

hex, fender to axle housing, 3/8 x 5" NC

8шт.

4

113-180

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

hex, fender to DOM quadrant, 5/16 x 5-1/2" NC

2шт.

5

A145217

PLATFORM RH, original equipment to be modified

1шт.

5

A145218

PLATFORM LH, original equipment to be modified

1шт.

6

A145184

EXTENSION RH platform

1шт.

6

A145185

EXTENSION LH platform

1шт.

7

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Extensions to platform Hex, 1/4"-20 x 3/4", G5, Full Thd

6шт.

8

195-518

WASHER,1/4", SAE

extensions to platforms, 9/32 x 5/8 x 5/64", 7.1 x 15.9 x 2 mm

6шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, , Extensions to platforms 1/4"

6шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5, Extensions to platforms

6шт.
