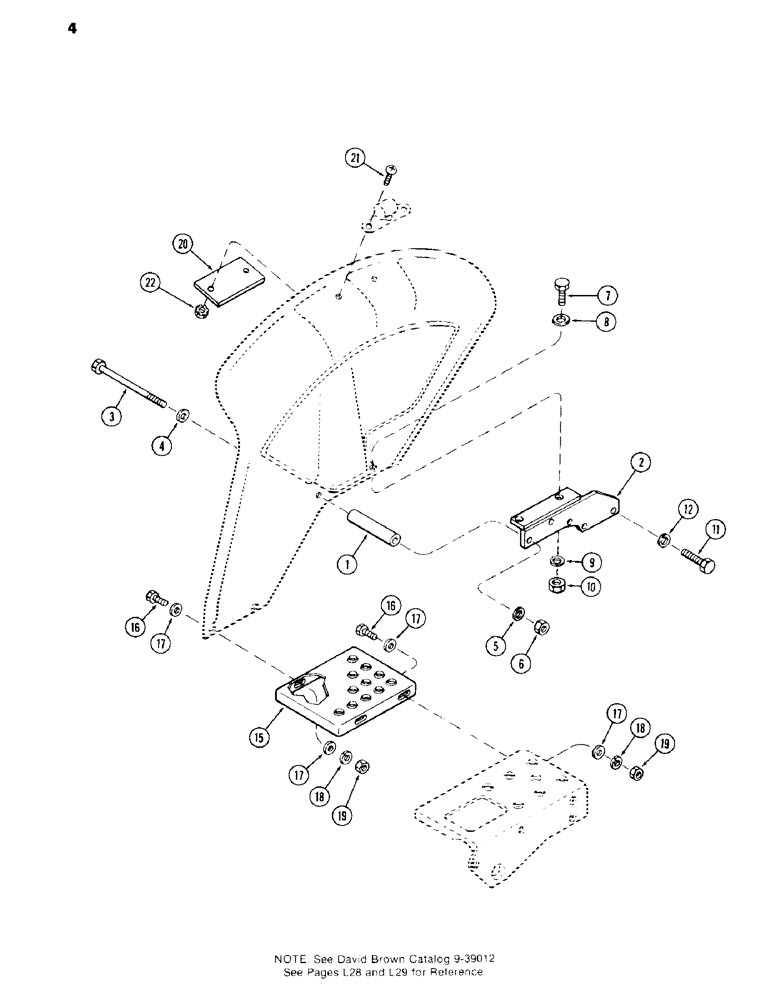

Запчасти Case IH 885 (4) - FENDER SUPPORTS AND EXTENSIONS

1

A145139

SPACER - fender

6шт.

2

A145255

SUPPORT ASSY. - fender, R.H.

1шт.

2

A145256

SUPPORT ASSY. - fender, L.H.

1шт.

3

113-259

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

Fender to support Hex, 3/8"-16 x 4 1/2", G5

6шт.

4

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 1/16", fender to support

6шт.

5

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Fender to support 3/8"

6шт.

6

129103

ARM

NUT - 3/8" N.C. hex., Serial Range: fender-support

6шт.

7

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Fender to support Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

8

195-533

WASHER,1/2", SAE

- 17/32 x 1-1/16 x 3/32", fender to support

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Fender to support 1/2"

4шт.

10

129-105

NUT,Hex, 1/2" - 13, Gr 5

Fender to support 1/2"-13, G5

4шт.

11

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Support to reduction housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

12

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Support to reduction housing 1/2"

4шт.

15

A145254

EXTENSION - platform

2шт.

16

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Extension to platform and fender to extension Hex, 1/4"-20 x 3/4", G5, Full Thd

8шт.

17

195-102

WASHER,1/4"

- 5/16 x 47/64 x 5/64"

16шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.

19

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

8шт.

20

A145629

DAMPER - fender

2шт.

21

173-206

X

SCREW - #10 x 1" N.C. rd. hd

4шт.

22

131-1142

LOCK NUT,Hex, #10 - 24, Gr A

NUT, LOCK, #10-24, GA

4шт.
