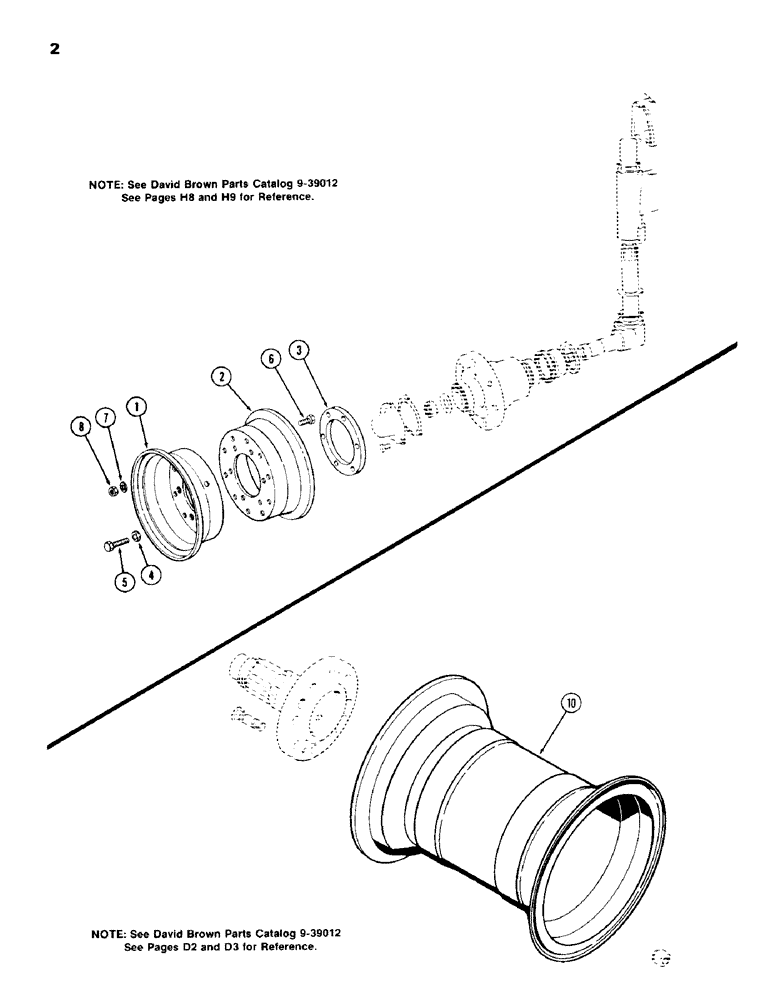

Запчасти Case IH 885 (2) - FRONT WHEELS

1

A143943

WHEEL

- half, front (5.50-10) (w/valve hole) (take 7.50 x 10 tire)

2шт.

See David Brown models 1410/1412 Figures H8 and H9 for reference

1шт.

2

A143944

WHEEL

- half, front (5.50-10) (w/o valve hole) (takes 7.50 x 10 tire)

2шт.

See David Brown models 1410/1412 Figures H8 and H9 for reference

1шт.

3

A145049

SPACER

- front wheel

2шт.

4

K626687

WASHER

- special

12шт.

5

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Wheel to hub Hex, 1/2"-13 x 2", G5

12шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Wheel halves Hex, 1/2"-13 x 1", G5, Full Thd

20шт.

7

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Wheel halves 1/2"

20шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

Wheel halves 1/2"-13, G5

20шт.

10

A143945

WHEEL

- rear (takes 18.4 x 16.1 tire)

2шт.

See David Brown models 1410/1412 Figures D2 and D3 for reference

1шт.
