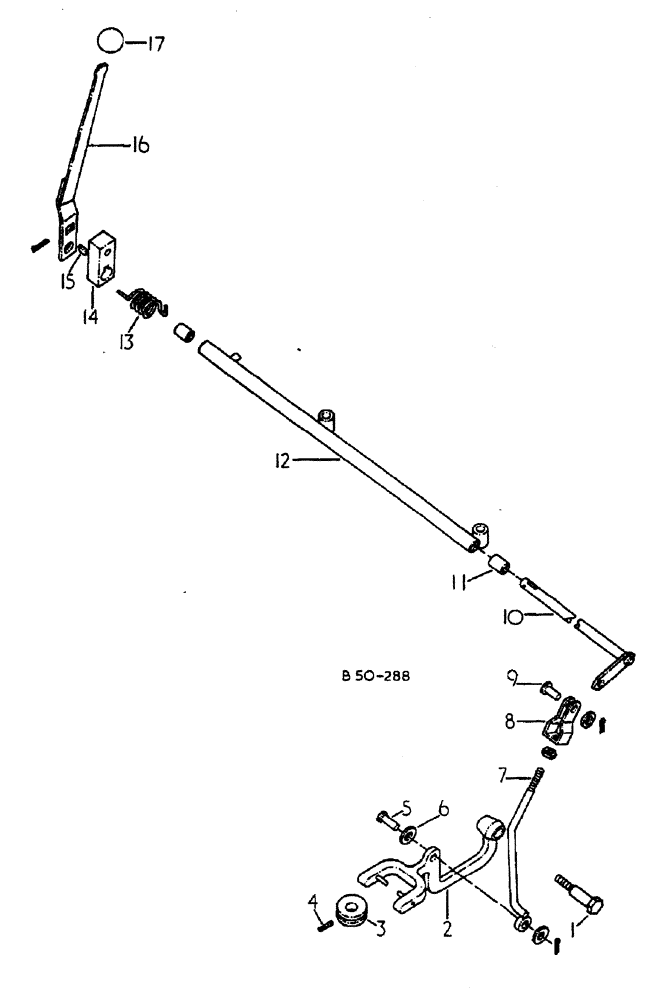

Запчасти Case IH 885 (07-070) - POWER TAKE OFF LEVER AND CONNECTIONS - 885 (04) - Drive Train

1

401754R1

BOLT,3/8" - 16 x 2.20"

BOLT, CONTROL ARM PIVOT SHAFT

1шт.

2

401749R2

LEVER ASSY.

CONTROL

1шт.

3

530813R2

GUIDE BUSHING

COLLAR, IPTO CONTROL

1шт.

4

25215R1

PIN,3/16" x 7/8", Coiled

1шт.

5

138084

SPLIT PIN/SAFETY PIN

3/8 X 1 CLEVIS, INCLUDES: PIN - 3/32 X 1 COTTER

1шт.

103374

COTTER PIN,3/32" x 1"

1шт.

6

120394

WASHER,3/8", SAE

5/16 ID X 688 X 051 PLAIN

2шт.

7

3129234R1

ROD ASSY.

IPTO CONTROL, INCLUDES: NUTS

1шт.

425-115

NUT,5/16"-24, G5

2шт.

8

3129237R1

CLEVIS

IPTO CONTROL

1шт.

9

24660R1

CLEVIS PIN,5/16" x .719"

5/16 X 719 X 562 CLEVIS, INCLUDES: NUT - 3/32 X 1 COTTER

1шт.

103374

COTTER PIN,3/32" x 1"

1шт.

10

3129240R1

SHAFT ASSY.

IPTO CONTROL CROSS OVER

1шт.

11

528839R1

BUSHING

2шт.

12

3129238R91

SUPPORT ASSY.

IPTO CONTROL SHAFT

1шт.

13

1500622C1

SPRING

IPTO LEVER RETURN, MACHINES W/CAB

1шт.

14

538719R1

PIVOT

HANDLE CONTROL, INCLUDES: PIN AND WASHER

1шт.

103385

COTTER PIN,1/8" x 1"

1шт.

21903R1

WASHER

17/32 X 3/4 060 C-Z, AS REQUIRED

1шт.

15

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

16

538720R1

LEVER ASSY.

IPTO ADJ, INCLUDES: BOLT, WASHER AND NUT

1шт.

16888R1

HARDWARE,Short NK, 5/16"-18 x 1 1/4", G2

BOLT, 5/16-18 X 1-1/4 ZND

1шт.

80681

LOCK WASHER,5/16"

1шт.

120376

NUT,5/16"-18, G5

1шт.

17

530090R1

KNOB

IPTO HAND LEVER

1шт.
