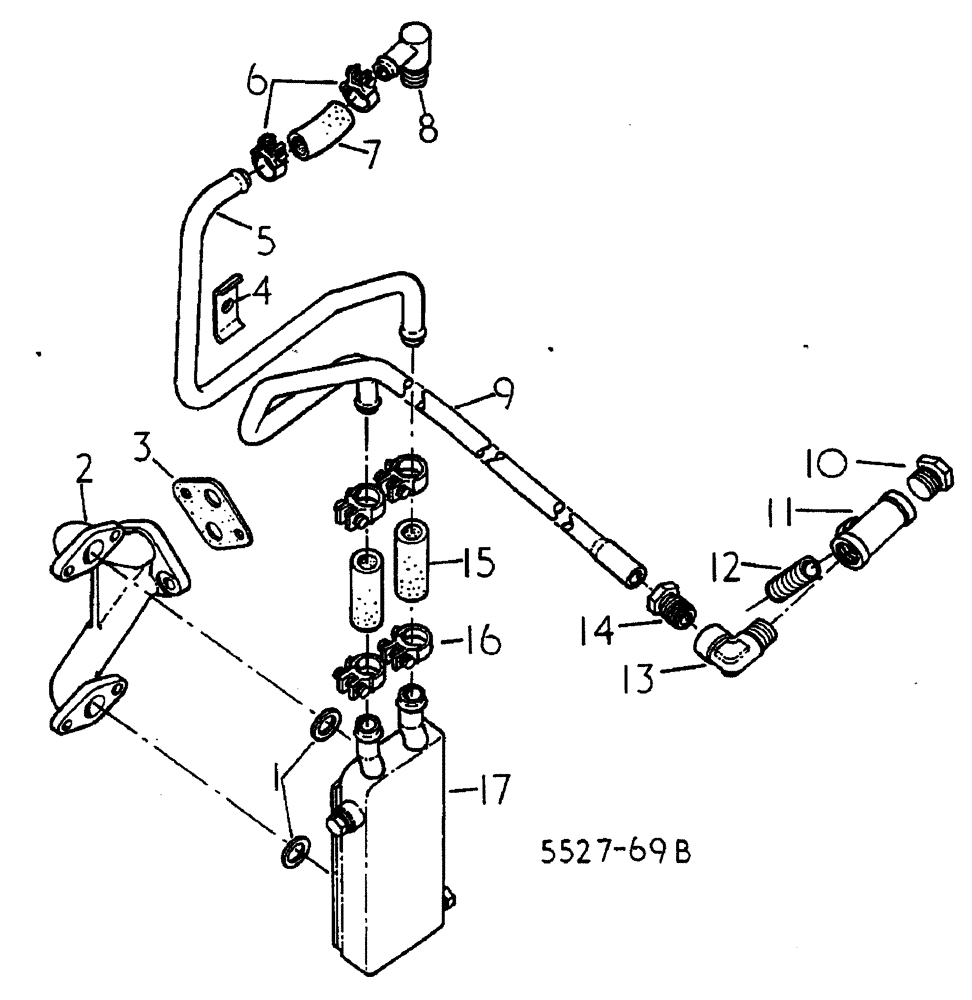

Запчасти Case IH 885 (12-098) - OIL COOLER Power

1

350684R1

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

2

3136403R1

ELBOW

MANIFOLD, OIL COOLER, INCLUDES: NUTS AND WASHERS

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

933620R1

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 1.1mm Thk

Disc

2шт.

3

3136404R1

GASKET

1шт.

4

3218744R1

CLAMP

TUBE, INCLUDES: BOLT, WASHER AND NUT

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

5

3228042R1

PIPE

OIL COOLER

1шт.

6

3143364R1

CLAMP,19mm - 23mm

HOSE

2шт.

7

3228045R1

HOSE

1шт.

8

3228044R1

ELBOW

1шт.

9

3228043R1

PIPE

OIL COOLER

1шт.

10

444630

PLUG,Hex Hd, 1/2"-14

PIPE

1шт.

11

144085

TEE,1/2" NPT, Fem

CONNECTING

1шт.

12

191032

PIPE,Nipple, 1/2" NPT x 1 1/2", Brass

1шт.

13

56445D

ELBOW,90 Degree x 1/2" NPT x 7/8"-18

1шт.

14

222-507

TUBE NUT,7/8"-18

1шт.

15

3136370R1

HOSE,16.00 mm ID x 65.00 mm

Connecting

2шт.

16

3143364R1

CLAMP,19mm - 23mm

HOSE

4шт.

17

3228132R1

COOLER

LUBRICATING OIL, INCLUDES: NUT AND WASHERS

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

4шт.
