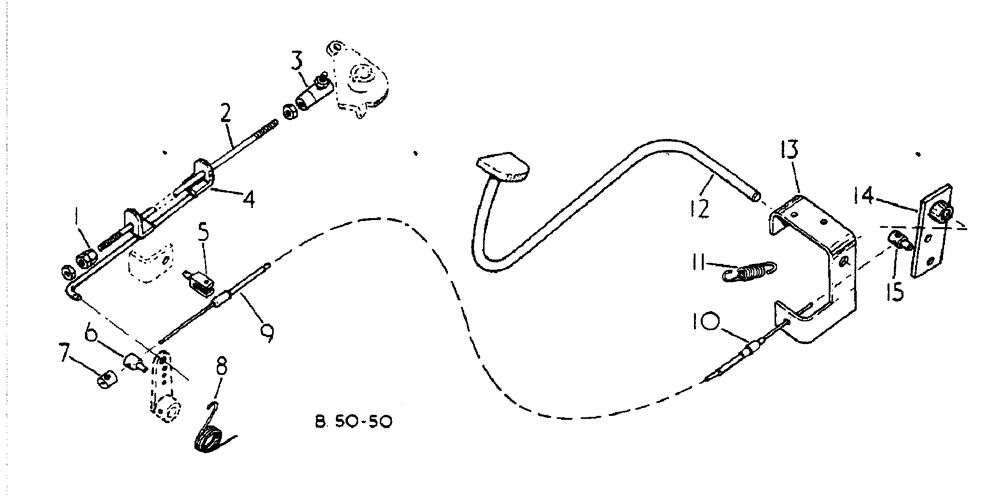

Запчасти Case IH 885 (12-030) - FOOT ACCELERATOR - MACHINES FITTED WITH CAB Power

1

528776R1

NUT

FOOT ACCELERATOR PICK-UP ROD SWIVEL, INCLUDES: NUT - 1/4-28

1шт.

114492

JAM NUT,Jam, 1/4"-28, G5

1шт.

2

528775R1

ROD

FOOT ACCELERATOR

1шт.

3

191474

BALL JOINT

1/4 UNF

1шт.

3

192227

BALL JOINT

1/4 UNF

1шт.

3

27258R1

BALL JOINT

1/4 UNF

1шт.

4

3121956R1

ROD ASSY.

BELL CRANK PULL, INCLUDES: PIN AND WASHER

1шт.

934606R1

COTTER PIN,M1.6 x 16

16 X 16 MM COTTER

1шт.

933347R1

WASHER,M8 x 16 x 1.6

8 8 X 17 X 1 6 MM

1шт.

5

534621R1

CLAMP

SWIVEL, INCLUDES: PIN, WASHER, SCREW AND NUT

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

120217

LOCK WASHER,#10

1шт.

454065

SCREW,Hex Hd, #10-32 x 3/4"

NO 10-32 X 3/4 HEX HD MACH

1шт.

453284

NUT,#10-32

NO 10-32 HEX

1шт.

6

3121958R1

PIVOT

FOOT ACCELERATOR CABLE, INCLUDES: WASHER AND PIN

1шт.

933346R1

WASHER,M6 x 12 x 1.6

6 4 X 12 5 X 1 6 MM

1шт.

934787R1

COTTER PIN,M1.6 x 10

1 6 X 10 MM COTTER

1шт.

7

3121959R1

STOP

FOOT ACCELERATOR CABLE END, INCLUDES: SCREW

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

NO 8-32 X 3/8 FILL SLT MACH

1шт.

8

539012R1

SPRING

TORSION

1шт.

9

3112807R2

CABLE

1шт.

10

677516R1

BUSHING

1шт.

11

704526R1

SPRING

ACCEL BELL CRANK ARM RETURN

1шт.

12

3121948R2

PEDAL

ASSY, FOOT ACCELERATOR

1шт.

13

3121950R2

BRACKET

ASSY, FOOT ACCELERATOR, INCLUDES: BOLTS AND NUTS

1шт.

181593

BOLT,Hex, 5/16" - 24 x 5/8", Gr 5

5/16-24 X 5/8 HEX HD

2шт.

120368

NUT,5/16"-24, G5

2шт.

14

3121953R1

ARM

ASSY, ACCELERATOR BELL CRANK

1шт.

15

396388R1

PIVOT

ACCELERATOR ARM, INCLUDES: PINS, WASHER AND SCREW

1шт.

17271R1

LOCK PIN,1/8" x 7/8", Slotted

1шт.

103361

PIN, SPLIT (COTTER)

PIN, COTTER 1/16 X 1/2

1шт.

446179

WASHER,#12

1/4 X 1/2 X 036

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 X 3/8 FIL HD SLT MACH

1шт.
