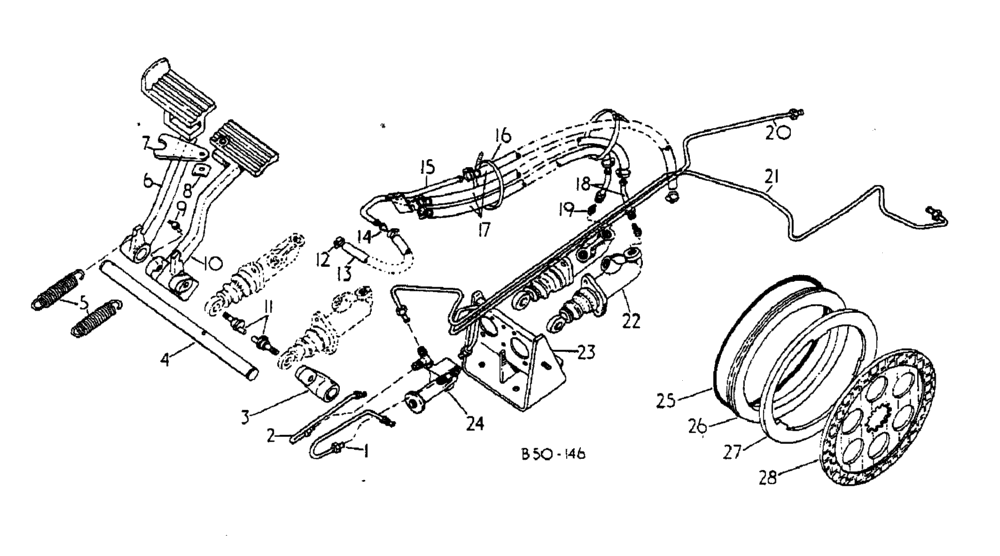

Запчасти Case IH 885 (04-002) - BRAKE CYLINDER AND CONNECTIONS (5.1) - BRAKES

1

530851R2

TUBE

equalizer, L. H.

1шт.

2

530852R1

TUBE

equalizer, R. H.

1шт.

3

3125228R1

ARM

R. H. brake pedal, Includes: pin

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1 1/2", Coiled

1шт.

4

3125229R1

SHAFT

pedal support

1шт.

5

3125230R1

SPRING

brake pedal return

2шт.

6

399741R4

PEDAL

R. H brake, Includes: pin

1шт.

617940R1

PIN,5/16" x 1 3/4", Coiled

5/16" x 1 3/4", Coiled

1шт.

7

43751DB

LATCH, PEDALS

PLATE, brake lock, Includes: rivet

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

small B HD solid, 1/4 x 1-1/4

1шт.

8

51293D

SPRING

brake pedal lock tension

1шт.

9

219-45

LUBE NIPPLE,65 Degree Elbow, 1/4" NPTF

FITTING, angle drive, 1/4 45 DEG

1шт.

10

3125226R91

PEDAL ASSY.

L. H. brake

1шт.

Bushing used to mount 3125226R91 pedal is 539834R1 per notes in catalogs

1шт.

11

399744R1

BOLT

BOLT, brake pedal adjusting, Includes: nuts and washers

2шт.

103026

NUT,3/8"-24, G5

2шт.

103321

LOCK WASHER,3/8"

2шт.

12

3125239R1

COLLAR

HOSE worm drive

8шт.

13

66368C2

HYDRAULIC HOSE,0.31" ID x 11.00"

SUPPLY brake reservoir

1шт.

14

537518R1

SCREEN

AND ORIFICE ASSEMBLY

1шт.

15

66369C1

TUBE ASSY.

brake reservoir, Includes: screw

1шт.

172292

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

8-32 x 3/8 C Z HD TAP

1шт.

16

289862R1

STRAP

2шт.

17

66372C2

HOSE

brake reservoir, Includes: clip

3шт.

527433R1

CLIP

brake reservoir

1шт.

18

66367C1

TUBE ASSY.,0.31" OD, 2.5" Length

SUPPLY brake CYL

2шт.

19

537849R2

SCREEN

AND ORIFICE ASSEMBLY, brake tube reservoir

2шт.

20

66094C1

BRAKE LINE

brake R. H.

1шт.

21

66093C1

BRAKE LINE

brake L. H.

1шт.

22

527542R92

CYLINDER

ASSEMBLY, brake master, Includes: hose, insulator and seal kit

2шт.

22

527542R92GV

BRAKE CYLINDER

Value, Brake, Master Cylinder Assy.

2шт.

(P/N 527542R92) - Seal Kit for Brake Master 3125824R1

1шт.

71925C1

HOSE

SPARE PART master brake CYL retaining

1шт.

71926C1

BELLOWS

INSULATOR, master brake CYL dust

1шт.

3125824R1

SEAL KIT

KIT, seal , as required

1шт.

23

3125224R1

BRACKET

ASSEMBLY, brake CYL mounting, Includes: screws, washers and nuts

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

181338

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5

4шт.

425-115

NUT,5/16"-24, G5

4шт.

103320

LOCK WASHER,5/16"

4шт.

24

530374R92

VALVE

ASSEMBLY, brake equalizer, Includes: washers, tees, screws and package - equalizer valve o-ring and seal - service

1шт.

530373R1

WASHER

VALVE equalizing

1шт.

9411128

TEE,7/16"-20, 37 Degree x 7/16"-20, O-Ring Run

ADJ STR THRO 90 DEG

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

2шт.

68434C3

SEAL PACKAGE

equalizer valve o ring and seal service

1шт.

25

343932R1

O-RING,0.139" Thk x 9.984" ID, -274, Cl 6, 90 Duro

10 x 10-1/4 x 1/8, brake piston

2шт.

26

114621C1

PISTON

brake

2шт.

27

399736R2

RING

brake

2шт.

28

114622C1

BRAKE DISC

brake centre

2шт.
