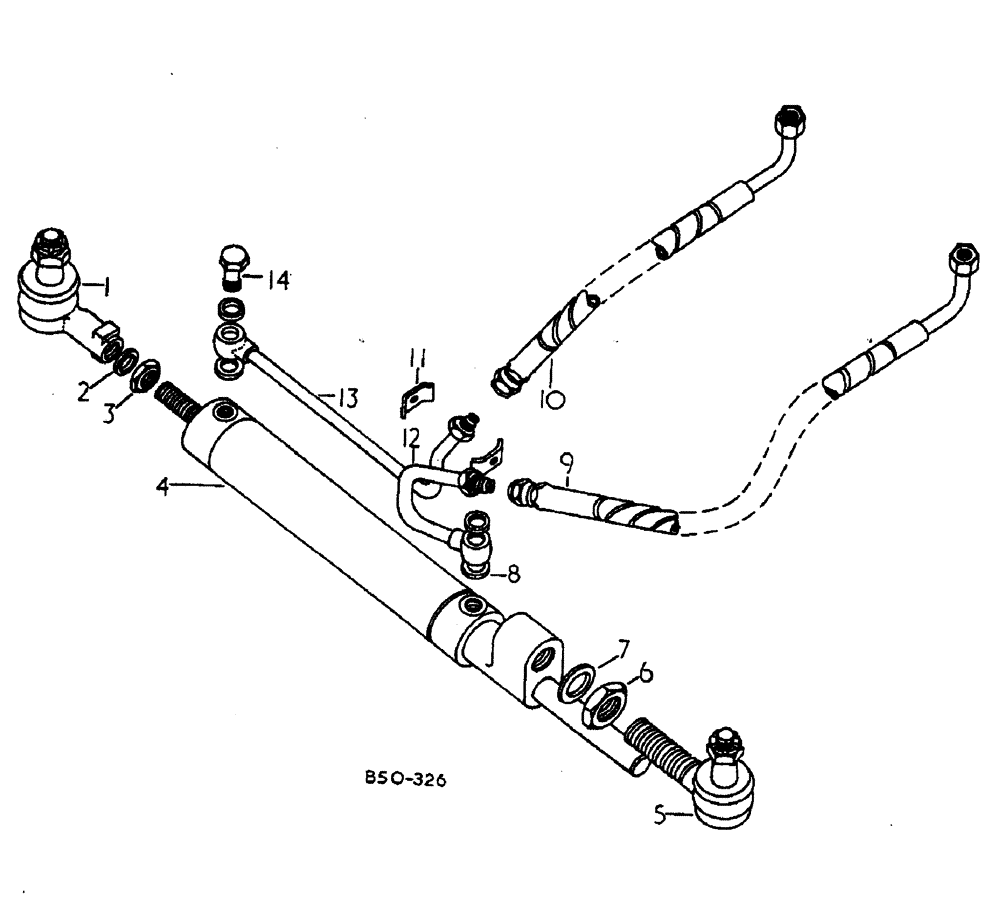

Запчасти Case IH 885 (10-064) - POWER STEERING - 4 WHEEL DRIVE - Z F AXLE (07) - HYDRAULICS

1

3146035R92

BALL JOINT

1шт.

2

934071R1

LOCK WASHER

J21 INTERNAL TOOTH

1шт.

3

933707R1

NUT,Thin, M20 x 1.5

M20 X 1 5 HEX JAM

1шт.

4

3146036R94

CYLINDER ASSY.

POWER STEERING

1шт.

5

3141529R91

BALL JOINT

1шт.

6

934070R1

THIN NUT,Thin, M30 x 1.5

M30 X 1 5 HEX JAM

1шт.

7

934072R1

LOCK WASHER,Serr, M31

J21 INTERNAL TOOTH

1шт.

8

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

9

3129985R1

HOSE ASSY.

HYD STEERING CYL R H

1шт.

10

3129984R1

HOSE ASSY.

HYD STEERING CYL L H

1шт.

11

3129983R1

CLAMP

TUBE, INCLUDES: BOLT, WASHER AND NUT

2шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

M6 X 25 HEX HD

1шт.

933833R1

LOCK WASHER,M6

1шт.

30281R1

NUT,M6, Cl 10

1шт.

12

3129982R1

TUBE ASSY.

STEERING CYL R H

1шт.

13

3129981R1

TUBE ASSY.

STEERING CYL L H

1шт.

14

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

2шт.
