Запчасти Case IH 885 (10-062) - STEERING CYLINDER - 4 WHEEL DRIVE (07) - HYDRAULICS

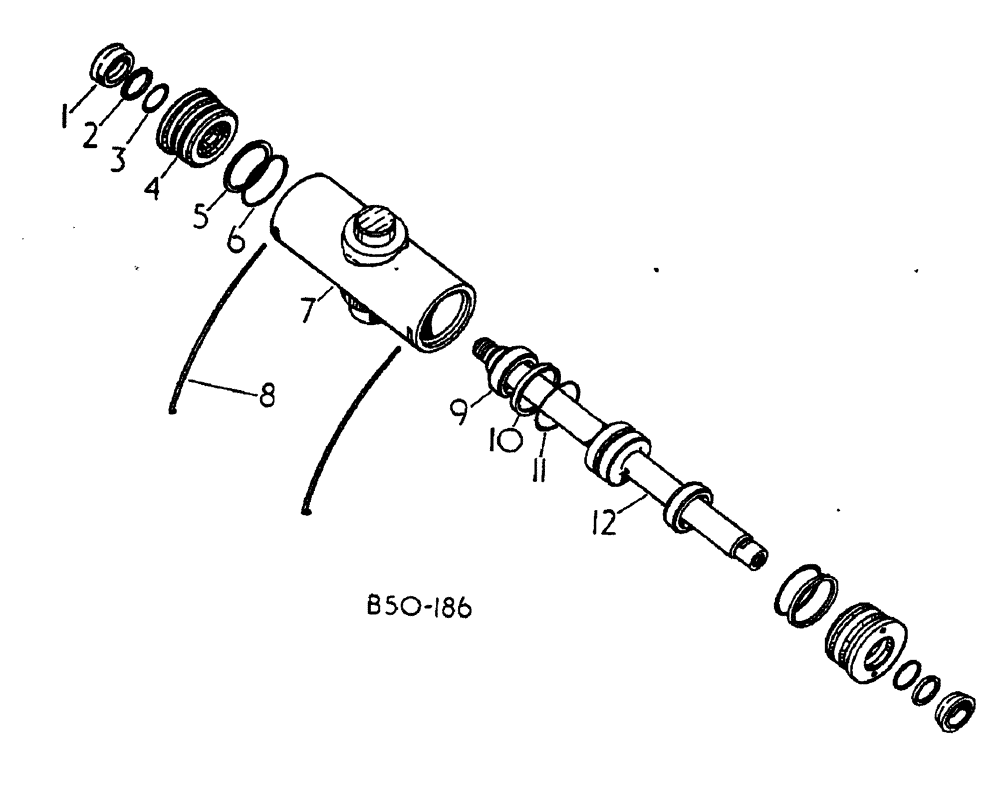

Схема запчастей Case IH 885 - (10-062) - STEERING CYLINDER - 4 WHEEL DRIVE (07) - HYDRAULICS
4
10
5
9
6
11
8
2
12
3
1
7

Артикул

Название

Примечание

Количество

3125346R91

CYLINDER ASSY.

HYD POWER STEERING

1шт.

1

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER, PISTON ROD

2шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

PISTON ROD BACK UP

2шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

4

400591R1

HEAD

REAR

2шт.

5

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

REAR HEAD BACK UP

2шт.

6

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2шт.

7

400587R1

HYD CYL SLEEVE

BODY ASSY.

1шт.

84336125R

REMAN-HYD CYLINDER

884 UP TO S/N 3083 (EUROPE) (1/79-12/81), 885 UP TO S/N 3083 (1/81-12/85), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

8

385133R1

RETAINING WIRE

RING, RETAINING

2шт.

9

984672C2

SPACER

CYLINDER

2шт.

10

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL, PISTON

1шт.

11

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2-1/16 X 2-1/4 X 3/32

1шт.

12

3156954R1

ROD, PISTON

1шт.

Выбрано товаров: 15
