Запчасти Case IH 885 (10-044) - UNLOADING AND FLOW CONTROL VALVE (07) - HYDRAULICS

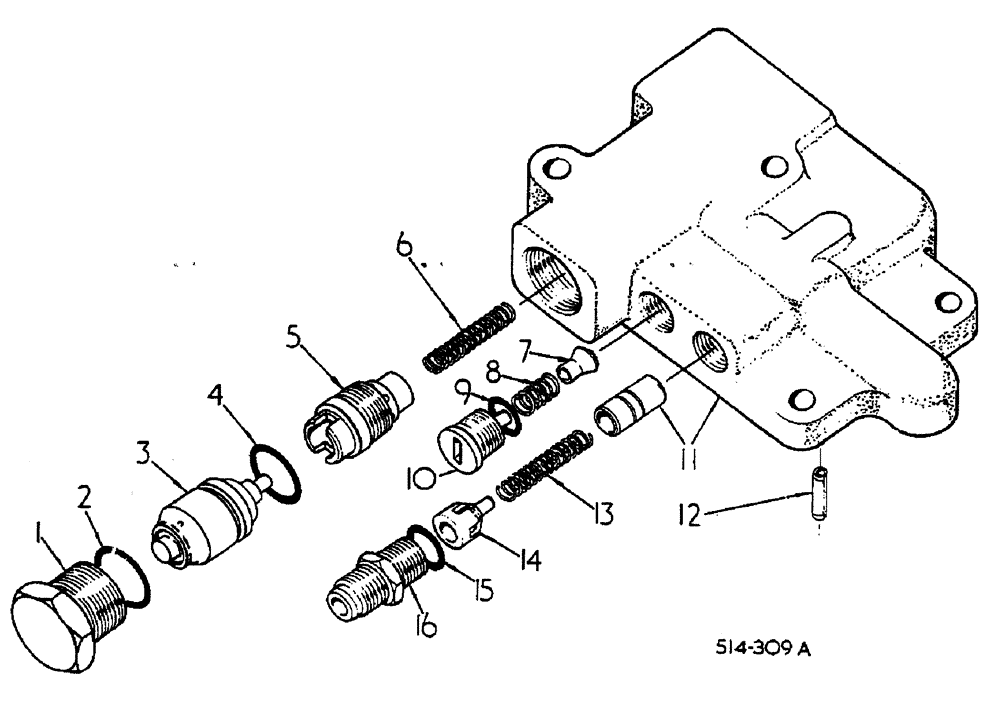

Схема запчастей Case IH 885 - (10-044) - UNLOADING AND FLOW CONTROL VALVE (07) - HYDRAULICS
2
16
4
14
8
6
7
5
3
15
11
1
10
9
13
12

Артикул

Название

Примечание

Количество

59098C92

CONTROL VALVE

ASSY, UNLOADING AND FLOW CONTROL

1шт.

1

545494R1

PLUG

UNLOADING VALVE

1шт.

2

296247R1

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

1 IN O D TUBE

1шт.

3

376762R11

PISTON ASSY.

UNLOADING VALVE

1шт.

4

238-6212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 6, 90 Duro

1шт.

5

530138R1

BODY

ASSY, UNLOADING VALVE

1шт.

6

530141R1

SPRING

UNLOADING

1шт.

7

389587R3

CHECK VALVE

POPPET

1шт.

8

535547R1

SPRING

CHECK POPPET

1шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

10

399851R1

PLUG

CHECK VALVE

1шт.

11

NSS

NOT SOLD SEPARAT

BODY AND SPOOL, UNLOADING AND FLOW CONTROL VALVE, NOT SERVICED

1шт.

12

617057R1

PIN,1/4" x 1", Coiled

1шт.

13

530142R1

SPRING

FLOW CONTROL VALVE

1шт.

14

58367C1

GUIDE

SPRING

1шт.

15

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD TUBE

1шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, 3/4-16 ZND 37 DEG HYD FLARED TUBE SHORT SWIVEL

1шт.

Выбрано товаров: 17
