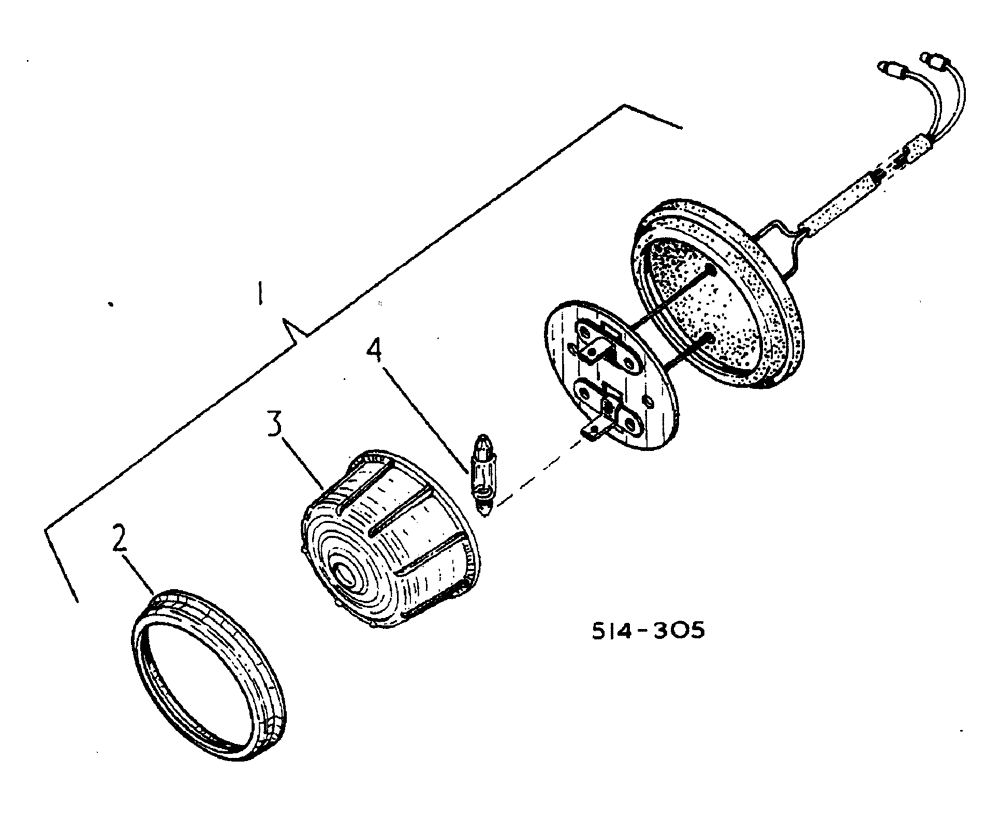

Запчасти Case IH 885 (08-022) - FENDER WIRING AND SIDE LIGHTS - TRACTORS WITH FLAT TOP FENDERS (06) - ELECTRICAL

1

3123172R91

INDICATOR LIGHT

SIDE, INCLUDES: SCREWS

2шт.

145193

BATTERY

10-16 X 1/2 SELF TAPPING

4шт.

2

3118023R1

BEZEL

1шт.

3

3118022R1

LENS

CLEAR

1шт.

4

710196R1

BULB,C5W, 12V, 5W

Festoon

1шт.

3113661R1

GROMMET

FENDER HARNESS, NOT ILLUSTRATED

2шт.

3123187R1

HARNESS

FENDER, NOT ILLUSTRATED

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY L H FENDER, NOT ILLUSTRATED

4шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY R H FENDER, NOT ILLUSTRATED

6шт.

705897R1

CONNECTOR, ELEC

CONNECTOR 1 WAY NO PLATE, NOT ILLUSTRATED

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR 2 WAY NO PLATE, NOT ILLUSTRATED

1шт.

3112888R1

PLUG

BLANKING SIDE LIGHT, NOT ILLUSTRATED

2шт.

3113657R1

PLUG

BLANKING SIDE LIGHT, NOT ILLUSTRATED

4шт.
