Запчасти Case IH 885 (08-016) - ELECTRICAL SWITCHES AND FUSES (06) - ELECTRICAL

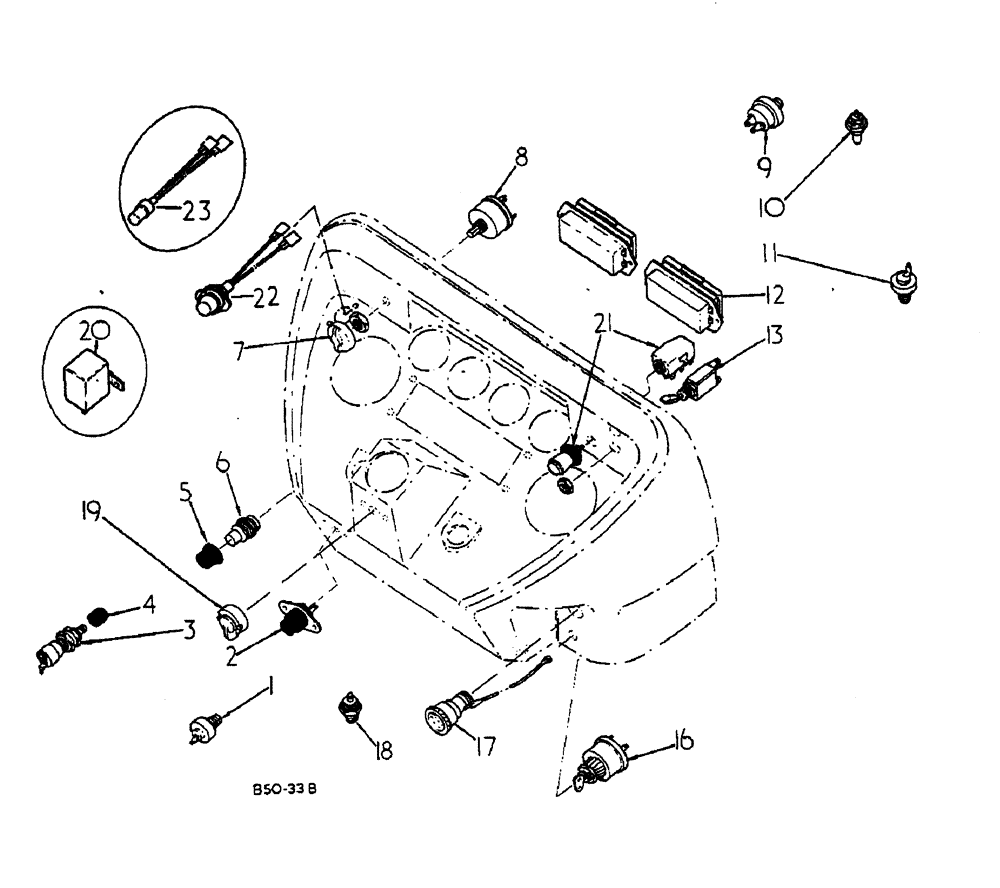

Схема запчастей Case IH 885 - (08-016) - ELECTRICAL SWITCHES AND FUSES (06) - ELECTRICAL
6
19
2
1
20
13
8
4
10
17
11
12
5
18
3
9
23
22
7
21
16

Артикул

Название

Примечание

Количество

1

3118643R1

SWITCH

TRANS OIL PRESSURE

1шт.

1

376855R92

SWITCH

TRANS OIL PRESSURE, OPTIONAL, UP TO 851

1шт.

1

444614

PLUG,Hex Hd, 1/8"-27, Brass

PIPE 1/8-27 NPTF

1шт.

1

444689

PLUG,Hex Soc, 1/8"-27, Brass

PIPE 1/8-27 NPTF, OPTIONAL, ON ORDERS FOR EITHER PLUG FURNISH ELBOW 1500561C1

1шт.

2

NSS

NOT SOLD SEPARAT

SWITCH ASSY, PUSH BUTTON, SEE COLD START ATTACHMENT ETHER

1шт.

3

529461R93

SWITCH ASSY

ASSY, PARK BRAKE WARNING

1шт.

4

534351R1

COVER

WARNING LIGHT SWITCH

1шт.

5

3121720R1

COVER ASSY

HORN SWITCH

1шт.

6

705266R91

HORN

HORN

1шт.

7

3121405R1

KNOB

LIGHT SWITCH

1шт.

8

3121404R1

LIGHT SWITCH

LIGHT-FLASHER, INCLUDES: WASHER AND NUT

1шт.

3123107R1

WASHER

LIGHT SWITCH

1шт.

3123108R1

NUT

LIGHT SWITCH

1шт.

9

3125978R1

RESTRICTION SWITCH

AIR CLEANER RESTRICTION INDICATOR

1шт.

10

3073787R91

TRANSMITTER

WATER TEMP, A C DELCO

1шт.

10

3127956R1

TEMPERATURE SENDER

WATER TEMP, ICKNIELD, OPTIONAL

1шт.

11

3129031R91

SWITCH

ASSY, OIL PRESSURE ENGINE

1шт.

12

NSS

NOT SOLD SEPARAT

BOX, FUSE, INCLUDES: SCREWS, NUTS, WASHERS, FUSE AND COVER

2шт.

159929

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

4шт.

120361

NUT,Hex Mach Screw, #10 - 24

4шт.

120217

LOCK WASHER,#10

4шт.

3118918R1

FUSE

10 AMP

4шт.

NLS

NO LONGER SERVICED

10 AMP, OPTIONAL

4шт.

3115813R1

FUSE

35 AMP

5шт.

3121403R1

FUSE

35 AMP, OPTIONAL

5шт.

3123157R1

COVER

FUSE BOX

2шт.

13

3121406R1

SWITCH

DIP

1шт.

14

NOT APPLICABLE

1шт.

15

NOT APPLICABLE

1шт.

16

3107556R92

SWITCH ASSY

ASSY, KEY, INCLUDES: WASHER LOCK

1шт.

534211R1

SPRING WASHER

LOCK

1шт.

17

3121407R92

LIGHTER, CIGARETTE

INCLUDES: CABLE

1шт.

3123432R1

CABLE

CIGAR LIGHTER TO EARTH, FLYING LEAD

1шт.

18

NOT APPLICABLE

1шт.

19

3072070R91

FLASHER SWITCH

FLASHER, INCLUDES: SCREWS AND NUTS

1шт.

132711

SCREW,Sl Rnd Hd, #6 - 32 x 3/4"

NO 6-32 X 3/4 ZND SLT RD HD MACH

2шт.

3121717R1

LOCK NUT

LOCKOUT

2шт.

20

3118909R2

FLASHER UNIT

1шт.

21

3118917R91

SWITCH ASSY

ASSY, HAZARD WARNING

1шт.

22

3125983R1

LIGHT ASSY.

PARK BRAKE WARNING, INCLUDES: SCREWS, NUTS AND WASHERS

1шт.

159336

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

NO 6-32 X 1/2 ZND PAN HD MACH

2шт.

134530

NUT,Hex, #6 - 32

2шт.

495-31016

WASHER,#6

156 X 375 X 036 ZND

2шт.

492-11006

LOCK WASHER,#6

1005 up, 1193 Deluxe cab up

2шт.

23

3125984R1

FLASHER UNIT

PARK BRAKE WARNING, INCLUDES: CLIP AND STRAP

1шт.

539015R1

CLIP

CABLE

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP 1005 UP 1193 DELUXE CAB UP

1шт.

3125854R1

SWITCH

PLOUGH LAMP, OPTIONAL, NOT ILLUSTRATED

1шт.

3121406R1

SWITCH

PLOUGH LAMP, INCLUDES: WASHER, NOT ILLUSTRATED

1шт.

496-21047

WASHER

PLAIN, 884/1376 UP, NOT ILLUSTRATED

1шт.
