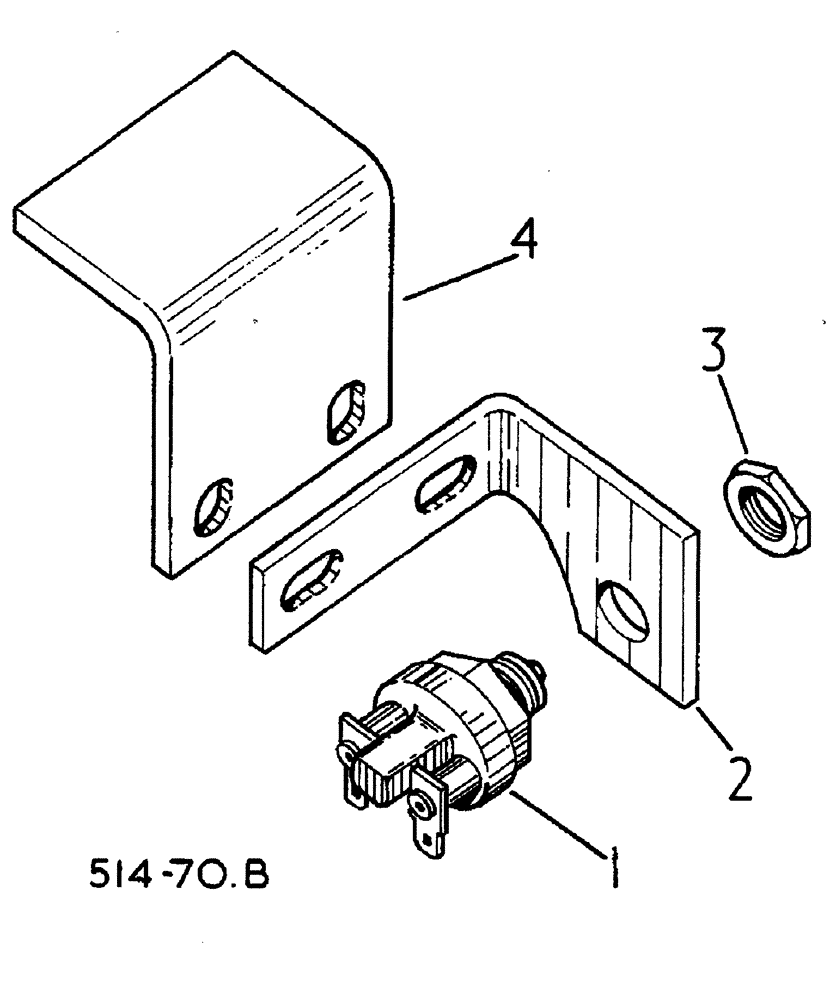

Запчасти Case IH 885 (08-004) - NEUTRAL SAFETY SWITCH - UP TO 885/2000 (06) - ELECTRICAL

1

3072122R93

SWITCH

NEUTRAL SAFETY

1шт.

2

531203R2

BRACKET

ASSY, SAFETY SWITCH MOUNTING, INCLUDES: SCREWS AND WASHERS

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

2шт.

95-11041

WASHER,3/8"

2шт.

3

3112570R1

NUT

SAFETY SWITCH LOCKING

1шт.

4

3121286R1

ANGLE

CLUTCH MACHINES FITTED WITH CAB

1шт.

3125981R91

HARNESS

ASSY, MAIN CABLE 1005 UP SERVICE PARTS ARE, CABLE HARNESS AND CONNECTIONS

1шт.

3115813R1

FUSE

35 AMP, CABLE HARNESS AND CONNECTIONS

3шт.

3121403R1

FUSE

35 AMP OPTIONAL, CABLE HARNESS AND CONNECTIONS

3шт.

3118918R1

FUSE

10 AMP, CABLE HARNESS AND CONNECTIONS

2шт.

3118918R1

FUSE

10 AMP OPTIONAL, CABLE HARNESS AND CONNECTIONS

2шт.

3123157R1

COVER

FUSE BOX, CABLE HARNESS AND CONNECTIONS

1шт.

3123158R1

PACKAGE

ALTERNATOR PLUG CONNECTIONS AS REQUIRED, CABLE HARNESS AND CONNECTIONS

1шт.

3123724R1

SLEEVE

CABLE HARNESS AND CONNECTIONS

1шт.

3129948R1

BOX, FUSE

PACKAGE, AS REQUIRED, CABLE HARNESS AND CONNECTIONS

1шт.

3123110R91

HARNESS

ASSY, MAIN CABLE, UP TO 884/1004, SERVICE PARTS ARE, CABLE HARNESS AND CONNECTIONS

1шт.

3115813R1

FUSE

35 AMP, CABLE HARNESS AND CONNECTIONS

3шт.

3121403R1

FUSE

35 AMP, OPTIONAL, CABLE HARNESS AND CONNECTIONS

3шт.

3118918R1

FUSE

10 AMP, CABLE HARNESS AND CONNECTIONS

2шт.

3118918R1

FUSE

10 AMP, OPTIONAL, CABLE HARNESS AND CONNECTIONS, INCLUDES: COVER , SLEEVE AND PACKAGE, ALTERNATOR PLUG CONNECTIONS

2шт.

3123157R1

COVER

FUSE BOX, CABLE HARNESS AND CONNECTIONS

1шт.

3123158R1

PACKAGE

ALTERNATOR PLUG CONNECTIONS, AS REQUIRED, CABLE HARNESS AND CONNECTIONS

1шт.

3123724R1

SLEEVE

CABLE HARNESS AND CONNECTIONS

1шт.

3129948R1

BOX, FUSE

PACKAGE, CABLE HARNESS AND CONNECTIONS

1шт.

3125768R1

HARNESS

ASSY, MAIN, CABLE HARNESS AND CONNECTIONS

1шт.

3125769R1

HARNESS

ASSY, FRONT, SUPER DE-LUXE CAB, CABLE HARNESS AND CONNECTIONS

1шт.

3123138R3

HARNESS

CAB LIGHTING, UP TO 884/1375, CABLE HARNESS AND CONNECTIONS

1шт.

3125877R1

HARNESS

CAB LIGHTING, 884/1376 UP, CABLE HARNESS AND CONNECTIONS

1шт.

3123139R2

CABLE

CAB HARNESS TO SIDE LIGHTS FLYING LEAD, CABLE HARNESS AND CONNECTIONS

1шт.

528301R1

CABLE ASSY.

BATT TO STARTER, CABLE HARNESS AND CONNECTIONS

1шт.

3123190R2

CABLE ASSY.

FLEXIBLE EARTH LEAD, CABLE HARNESS AND CONNECTIONS

1шт.

705896R1

CONNECTOR, ELEC

CONNECTOR TACHO, CABLE HARNESS AND CONNECTIONS

1шт.

705897R1

CONNECTOR, ELEC

CONNECTOR SPEEDO, CABLE HARNESS AND CONNECTIONS

1шт.

539015R1

CLIP

STEERING SUPPORT L H TOP, CABLE HARNESS AND CONNECTIONS

1шт.

153515R1

CLIP

MAIN HARNESS TO INST SHROUD, CABLE HARNESS AND CONNECTIONS, INCLUDES: SCREWS, NUTS AND WASHERS

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Cable Harness and Connections

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

Cable harness and connections

2шт.

492-11025

LOCK WASHER,1/4"

Cable harness and connections

2шт.

120392

WASHER,1/4", SAE

CABLE HARNESS AND CONNECTIONS

2шт.

3116240R1

CLIP

BATTERY CABLE, CABLE HARNESS AND CONNECTIONS, INCLUDES: SCREW, NUT AND WASHER

1шт.

450643

SCREW,Hex Hd, #8-32 x 3/8"

CABLE HARNESS AND CONNECTIONS

1шт.

225-10108

NUT,#8-32

Cable harness and connections

1шт.

492-11008

LOCK WASHER,#8

Cable harness and connections

1шт.

3123109R1

CABLE CLIP

TEMP SENDER, CABLE HARNESS AND CONNECTIONS

1шт.

100770H

CLIP

GRILLE SHROUD L H, CABLE HARNESS AND CONNECTIONS

1шт.

3113490R1

CLIP

STEERING SUPPORT L H CHANNEL, CABLE HARNESS AND CONNECTIONS

1шт.

537025R1

CLIP

HARNESS TO BATTERY SUPPORT, CABLE HARNESS AND CONNECTIONS

1шт.

316433C1

CLAMP

MAIN HARNESS, CABLE HARNESS AND CONNECTIONS, INCLUDES: SCREW AND WASHER

1шт.

179812

GEAR

CABLE HARNESS AND CONNECTIONS

1шт.

103320

LOCK WASHER,5/16"

Cable harness and connections

1шт.

316433C1

CLAMP

CLIP, MAIN HARNESS, CABLE HARNESS AND CONNECTIONS, INCLUDES: SCREW AND WASHER

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

Cable harness and connections

1шт.

103321

LOCK WASHER,3/8"

Cable harness and connections

1шт.

537025R1

CLIP

SAFETY START CABLE TO BATT TRAY, CABLE HARNESS AND CONNECTIONS

1шт.

3113490R1

CLIP

HARNESS TO MASTER CYL BRACKET, CABLE HARNESS AND CONNECTIONS

1шт.

366460R1

CABLE CLIP

FRONT COVER R H REAR, CABLE HARNESS AND CONNECTIONS

1шт.

537025R1

CLIP

STEERING SUPPORT R H TOP, CABLE HARNESS AND CONNECTIONS

1шт.

100770H

CLIP

INJECTION PUMP COVER, CABLE HARNESS AND CONNECTIONS

2шт.

3123195R1

CLAMP

CLIP, CABLE CAB REAR FRAME, CABLE HARNESS AND CONNECTIONS, INCLUDES: SCREWS

3шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X 1/2 TAPTITE HEX, WASHER HD, CABLE HARNESS AND CONNECTIONS

3шт.

537024R1

CLIP

RADIATOR GUARD L H SIDE, CABLE HARNESS AND CONNECTIONS

1шт.

3116918R1

CABLE CLIP

AIR CLEANER BRACKET TOP, CABLE HARNESS AND CONNECTIONS

1шт.

100770H

CLIP

GRILLE TIE BAR L H, CABLE HARNESS AND CONNECTIONS

1шт.

120392

WASHER,1/4", SAE

281 X 625 X 051, CABLE HARNESS AND CONNECTIONS

1шт.

3123195R1

CLAMP

CLIP, CABLE LEFT HAND TOP FRAME, CABLE HARNESS AND CONNECTIONS, INCLUDES: SCREWS

3шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X 1/2 TAPTITE HEX, WASHER HD, CABLE HARNESS AND CONNECTIONS

3шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL , CABLE HARNESS AND CONNECTIONS

3шт.

3123195R1

CLAMP

CLIP, CABLE WINDSCREEN TOP FRAME, CABLE HARNESS AND CONNECTIONS, INCLUDES: SCREWS

3шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X 1/2 TAPTITE HEX, WASHER HD, CABLE HARNESS AND CONNECTIONS

3шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL , CABLE HARNESS AND CONNECTIONS

3шт.

3123195R1

CLAMP

CLIP, CABLE - REAR TOP FRAME, CABLE HARNESS AND CONNECTIONS, INCLUDES: SCREWS

2шт.

401499R1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 1/2"

NO 10-24 X 1/2 TAPTITE HEX WASHER, HD, CABLE HARNESS AND CONNECTIONS

2шт.

1502019C1

SCREW,Hex Random Sl, #10 - 24 x 1/2"

10-24 X 1/2 HEX (RANDOM SLTD) OPTIONAL 884/1376 UP , CABLE HARNESS AND CONNECTIONS

2шт.

3123193R1

TAPE

SPARE PART HOSE, CABLE BINDING BULK LENGTH 15 24 METERS , CABLE HARNESS AND CONNECTIONS

1шт.

3123158R1

PACKAGE

ALTERNATOR SOCKET , CABLE HARNESS AND CONNECTIONS

1шт.

705548R1

GROMMET

WINDSCREEN TOP FILLET, CABLE HARNESS AND CONNECTIONS

2шт.

3118661R1

GROMMET

WINDSCREEN CORNER FILLET, CABLE HARNESS AND CONNECTIONS

2шт.

3112438R1

GROMMET

LIGHT TUBE SUPPORT, CABLE HARNESS AND CONNECTIONS

2шт.

537504R1

CABLE ASSY.

STRAP ASSY, BATT TO EARTH, CABLE HARNESS AND CONNECTIONS

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP BATTERY, CABLE HARNESS AND CONNECTIONS

2шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP HARNESS TO FUEL LINE, CABLE HARNESS AND CONNECTIONS

2шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP HARNESS TO FUEL PIPE, CABLE HARNESS AND CONNECTIONS

2шт.

3113490R1

CLIP

STEERING SUPPORT CHANNEL TOP, CABLE HARNESS AND CONNECTIONS

1шт.

3123431R1

CABLE

TACHO TO FUEL GAUGE EARTH, FLYING LEAD , CABLE HARNESS AND CONNECTIONS

1шт.

289862C1

CABLE TIE,3/16" x 7"

CABLE STRAP FOR USE W/IPTO CROSSOVER TUBE, CABLE HARNESS AND CONNECTIONS

1шт.
