Запчасти Case IH 885 (13-014) - REAR PANELS - 885 - MACHINES FITTED WITH CAB (05) - SUPERSTRUCTURE

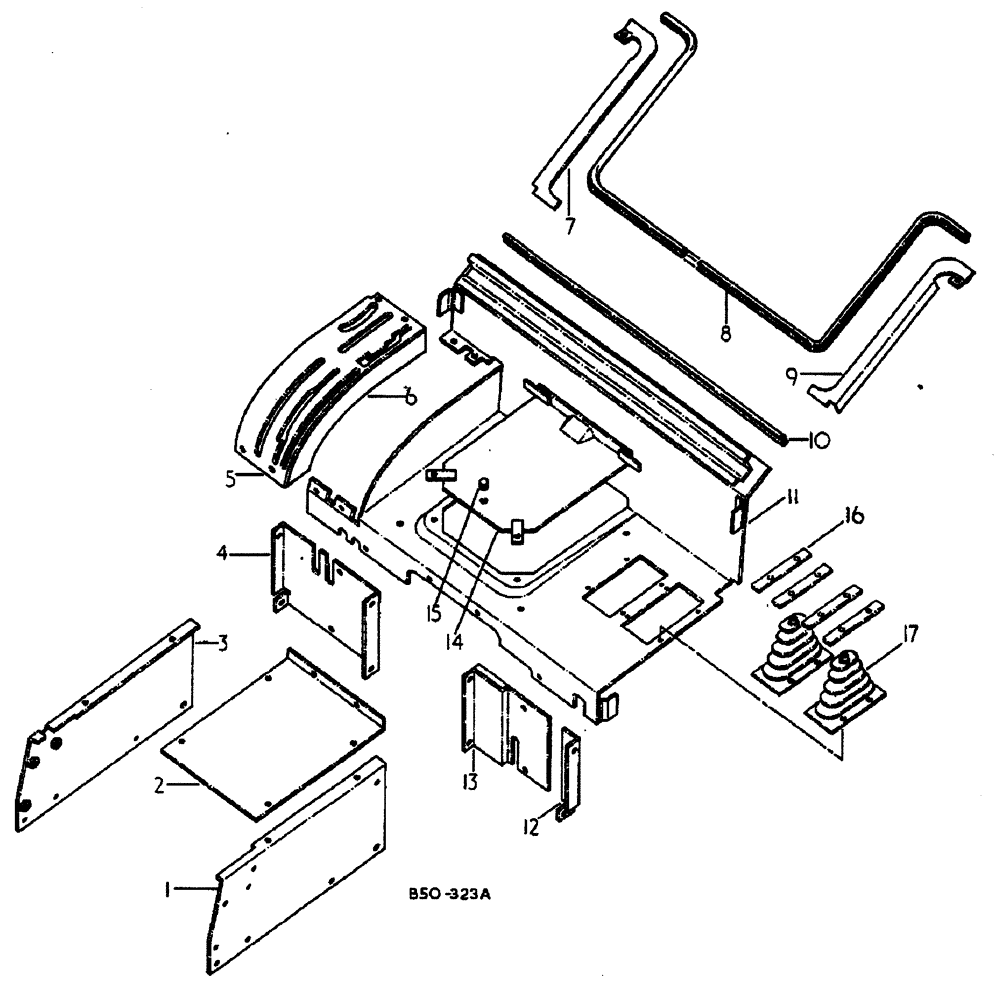

Схема запчастей Case IH 885 - (13-014) - REAR PANELS - 885 - MACHINES FITTED WITH CAB (05) - SUPERSTRUCTURE
15
12
16
5
4
2
7
6
3
17
9
11
1
10
13
14
8

Артикул

Название

Примечание

Количество

1

3116174R2

PLATE

ASSY, TRANS SIDE - L H, INCLUDES: NUTS, SCREWS AND WASHERS

1шт.

3112992R1

NUT

INSERT 1/4-20

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

103319

LOCK WASHER,1/4"

Plate to steering support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

Plate to platforms

4шт.

2

3116183R1

PLATE

TRANS COVER, INCLUDES: SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

103319

LOCK WASHER,1/4"

Plate to side plates, plate to seat platform

6шт.

3

3116176R1

PLATE ASSY.

SPARE PART TRANS SIDE - R H, INCLUDES: NUTS, SCREWS AND WASHERS

1шт.

3112992R1

NUT

INSERT 1/4-20

4шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

3шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

103319

LOCK WASHER,1/4"

Plate to steering support

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

Plate to platforms

4шт.

4

3116171R1

CHANNEL

REAR - R H, INCLUDES: NUT, SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

103319

LOCK WASHER,1/4"

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

CHANNEL TO SEAT PLATFORM, CHANNEL TO SIDE PLATES, CHANNEL TO PLATFORMS

4шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

Channel to fender

1шт.

5

3121582R2

HOUSING

HITCH CONTROL, INCLUDES: SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

6

3121583R2

INSULATOR

HITCH CONTROL HOUSING

1шт.

7

3118650R2

SUPPORT

SEAL - R H, INCLUDES: NUTS, SCREWS AND WASHERS

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, LOWER -865 MM

1шт.

8

3118678R1

SEAL

LOWER - BULK LENGTH 150 FT

1шт.

9

3118649R2

SUPPORT

SEAL - L H, INCLUDES: NUTS, SCREWS AND WASHERS

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

2шт.

120392

WASHER,1/4", SAE

2шт.

23985R1

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL, UPPER -1872 MM

1шт.

10

3118678R1

SEAL

UPPER - BULK LENGTH 150 FT

1шт.

11

3129290R1

PLATFORM

CPTE, SEAT, INCLUDES: NUTS, SCREWS AND WASHERS

1шт.

3118843R1

NUT

INSERT 1/4-20

12шт.

3112951R1

NUT

INSERT 5/16-18

3шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

109084

NUT,1/4"-20, G5

8шт.

103319

LOCK WASHER,1/4"

8шт.

120392

WASHER,1/4", SAE

8шт.

12

3116810R1

CHANNEL

REAR VERTICAL OUTER - L H, INCLUDES: NUT, SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

103319

LOCK WASHER,1/4"

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

281 ID X 625 OD X 051 PLN, REAR CHANNEL TO PLATFORM

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

103319

LOCK WASHER,1/4"

1шт.

109084

NUT,1/4"-20, G5

Rear channel to fenders

1шт.

13

3116927R2

CHANNEL

VERTICAL INNER - L H, INCLUDES: SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

Rear channel to seat platform, Rear channel to side plate, Rear channel to platforms

4шт.

14

3116161R1

PLATE

SPARE PART CPTE, HOUSING COVER, INCLUDES: SCREWS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

118773

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

103319

LOCK WASHER,1/4"

4шт.

15

538239R1

PLUG

GROMMET, HOUSING COVER PLATE

1шт.

16

1502032C1

STRIP

BOOT RETAINER, INCLUDES: SCREWS

4шт.

24382R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"

8шт.

17

1502031C1

BOOT

CONTROL LEVER

2шт.

Выбрано товаров: 76
