Запчасти Case IH 885 (07-094) - DIFFERENTIAL - 4 WHEEL DRIVE (04) - Drive Train

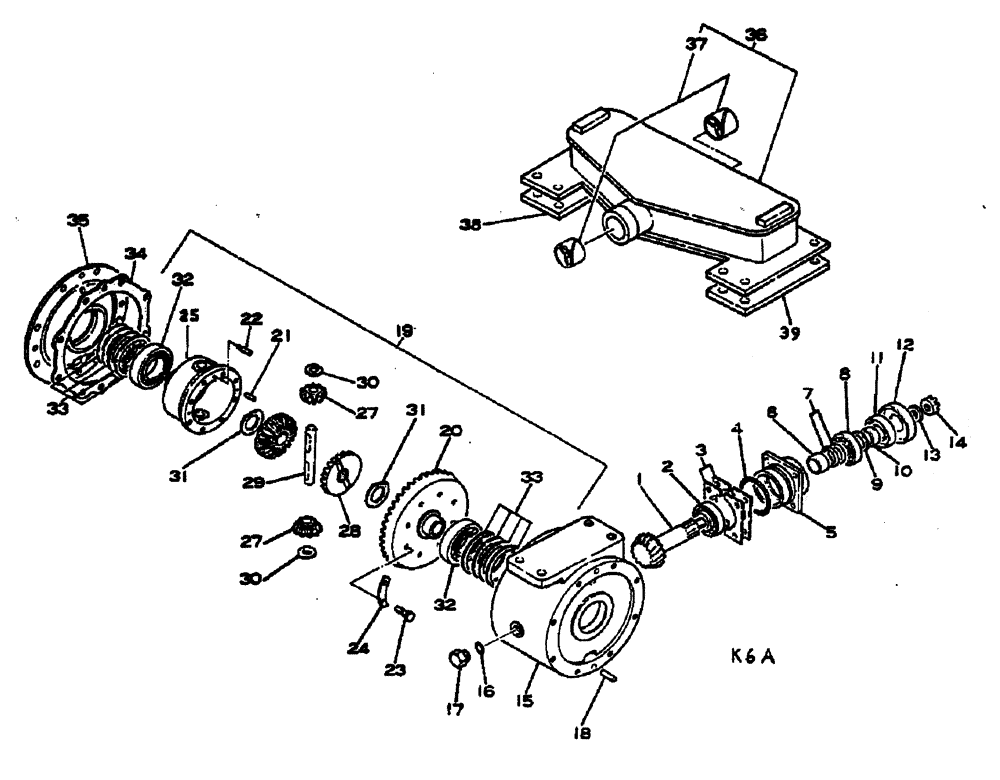

Схема запчастей Case IH 885 - (07-094) - DIFFERENTIAL - 4 WHEEL DRIVE (04) - Drive Train
29
32
30
10
1
15
16
11
27
24
27
31
34
14
32
2
30
3
31
9
5
20
25
38
22
18
21
13
12
39
4
23
36
19
28
6
35
33
7
37
17
6
33

Артикул

Название

Примечание

Количество

1

1014543C91

GEAR-SET

BEVEL, SHAFT PINION

1шт.

2

984144C2

BEARING

PINION FRONT

1шт.

3

984143C1

SHIM

0 02 -0 5MM

1шт.

3

984142C1

SHIM

0 008 -0 2MM, AS REQUIRED

1шт.

4

1014680C1

O-RING

1шт.

5

984633C2

RETAINER

PINION, INCLUDES: SCREWS AND WASHERS

1шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

4шт.

131099

LOCK WASHER,3/8"

4шт.

6

984636C2

COLLAR

1шт.

7

984621C2

SHIM

0 004 -0 1MM

1шт.

7

984622C2

SHIM

0 002 -0 05MM, AS REQUIRED

1шт.

8

984634C1

ROLLER BEARING,31.75 mm ID x 62.001 mm OD

PINION REAR

1шт.

9

22458R1

O-RING,1.489" ID x 1.629" OD x 0.07"

NO 029 X 1-1/2

1шт.

10

1004317C1

COLLAR

1шт.

11

1004318C1

OIL SEAL

1шт.

12

1002409C2

COVER

OIL SEAL

1шт.

13

1003725C1

WASHER

1шт.

14

1003759C1

NUT,5/8"-18

INCLUDES: PIN, COTTER

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

1шт.

15

1004729C2

CASE

DIFFERENTIAL

1шт.

16

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

17

9410360

PLUG

2шт.

18

974173C1

PIN

SPARE PART

4шт.

19

984164C93

GEAR

ASSY, DIFFERENTIAL

1шт.

20

1014543C91

GEAR-SET

BEVEL, SHAFT, PINION

1шт.

21

1014966C1

PIN

DOWEL

2шт.

22

973686C2

BOLT,28mm L

SET

1шт.

23

931542R1

BOLT

SPARE PART

8шт.

24

973687C1

LOCK WASHER

LOCK

4шт.

25

984117C2

CARRIER

DIFFERENTIAL

1шт.

26

984163C91

SET

SPARE PART GEAR CONSISTS OF

1шт.

27

984880C91

GEAR

ASSY, PINION, INCLUDES: GEARS AND BUSHINGS

2шт.

973690C4

GEAR WHEEL

2шт.

984881C1

BUSHING

2шт.

28

984078C1

GEAR

SIDE

2шт.

29

973692C3

PIN

PINION GEAR

1шт.

30

984882C1

THRUST WASHER

THRUST

2шт.

31

973694C2

THRUST WASHER

THRUST 0 085 -2 15MM

1шт.

31

974001C2

THRUST WASHER

THRUST 0 08 -2 0MM

1шт.

32

1014679C1

BEARING, BALL

2шт.

33

973697C1

SHIM

0 002 -0 5MM

1шт.

33

973698C1

SHIM

0 008 -0 2MM

1шт.

33

973699C1

SHIM

0 012 -0 3MM

1шт.

33

973700C1

SHIM

SPARE PART 0 02 -0 5MM, AS REQUIRED

1шт.

34

973639C2

GASKET

REAR AXLE

1шт.

35

984205C1

CARRIER

SPARE PART

1шт.

36

1057300C91

SUPPORT ASSY.

INCLUDES: SHAFT ASSY., SCREWS AND FITTING

1шт.

539128R1

SHAFT ASSY.

FRONT AXLE PIVOT

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

173352

FITTING

1/8-27 PTF 90 DEG

1шт.

37

984912C1

BUSHING

PIVOT

2шт.

38

1061954C1

SPACER

AXLE 4019 UP

1шт.

38

1014546C2

SPACER

UP TO AXLE 4018

1шт.

39

1004397C1

SPACER

SPARE PART AXLE, 687 UP, INCLUDES: SCREWS, NUT LOCKS L.H. FRONT, REAR AND R.H. FRONT, WASHERS, GASKET AND BOLTS

1шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

6шт.

752904R1

NUT

LOCK 5/8-11, L.H. FRONT, REAR AND R.H. FRONT

6шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

2шт.

131140

LOCK WASHER,5/8"

RH Rear

2шт.

1004382C1

GASKET

SPARE PART

1шт.

25496R1

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

BOLT, 3/8-16 X 7/8 PHC TYPE 8 AXLE 687 UP

4шт.

40

1061954C1

SPACER

AXLE 4019 UP

1шт.

40

1004398C1

SPACER

SPARE PART UP TO AXLE 4018

1шт.

40

1014546C2

SPACER

UP TO 686

1шт.

Выбрано товаров: 63
