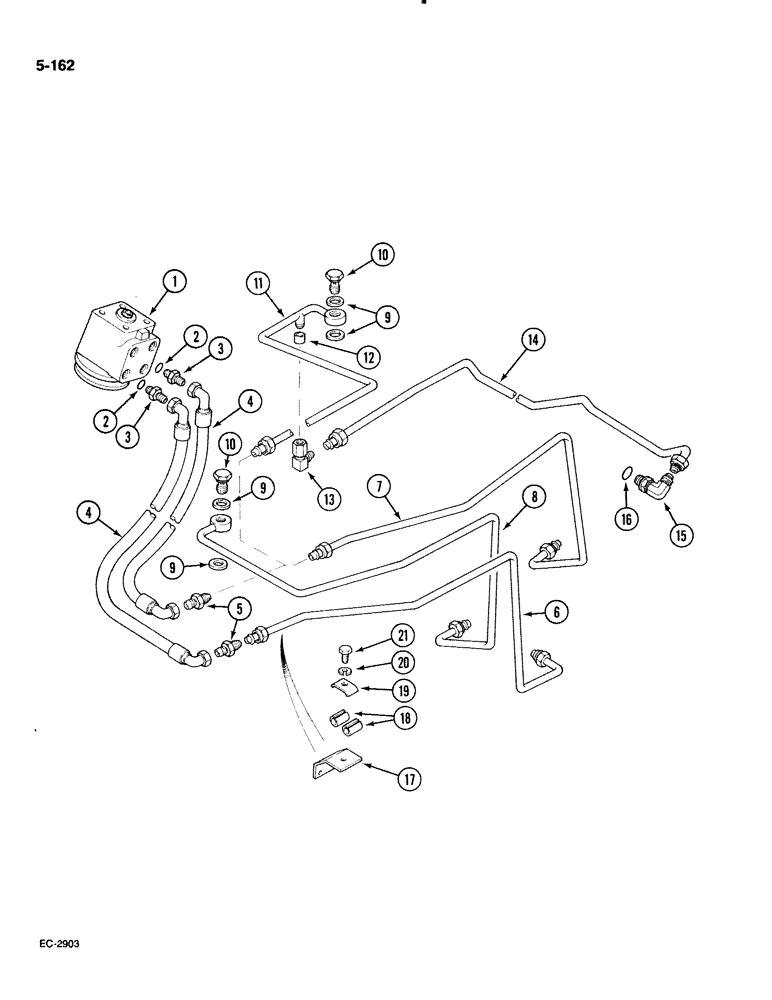

Запчасти Case IH 885 (5-162) - STEERING PIPES, REAR, WITH CAB, P.I.N. 18001 AND AFTER (05) - STEERING

1

88107C91

PUMP

VALVE - integral, power steering, See Figure 5-178

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

2шт.

3

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

2шт.

4

1502284C1

HOSE

- hydraulic, pressure and return

2шт.

5

1287927C1

FITTING

UNION - tube

2шт.

6

99776C1

PIPE

TUBE - power steering, pressure

1шт.

7

99802C1

PIPE

TUBE - power steering, return

1шт.

2 wheel drive without power shift

1шт.

8

1287929C3

PIPE,65 mm Length

TUBE - power shift return

1шт.

2 speed power shift, 4 wheel drive

1шт.

9

1328294C1

SEAL

- bonded

4шт.

2 speed power shift, 4 wheel drive

1шт.

10

1500102C2

SCREW,Hollow, Hex, 3/4" - 16 x 35mm

- hollow

2шт.

2 speed power shift, 4 wheel drive

1шт.

11

1287926C3

PIPE

TUBE - 2 speed power shift supply

1шт.

2 speed power shift, 4 wheel drive

1шт.

12

9403371

CAP,37 Degree, 9/16"-18

- 3/8 inch OD tube, 2 speed power shift

1шт.

13

99706C1

ELBOW

- 90 degree swivel, 4 wheel drive

1шт.

14

99489C3

PIPE

TUBE - drop box, 4 wheel drive

1шт.

15

99865C1

ELBOW

- 90 degree, 5/16 inch OD tube, 4 wheel drive

1шт.

17

1500300C1

SUPPORT

BRACKET - power steering pipes, rear

1шт.

18

673171C1

RUBBER BUSHING

SLEEVE - rubber

2шт.

19

1500302C1

CLAMP

- tube

1шт.

20

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

1шт.

21

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm, class 8.8

1шт.

16

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6, 4 wheel drive

1шт.
