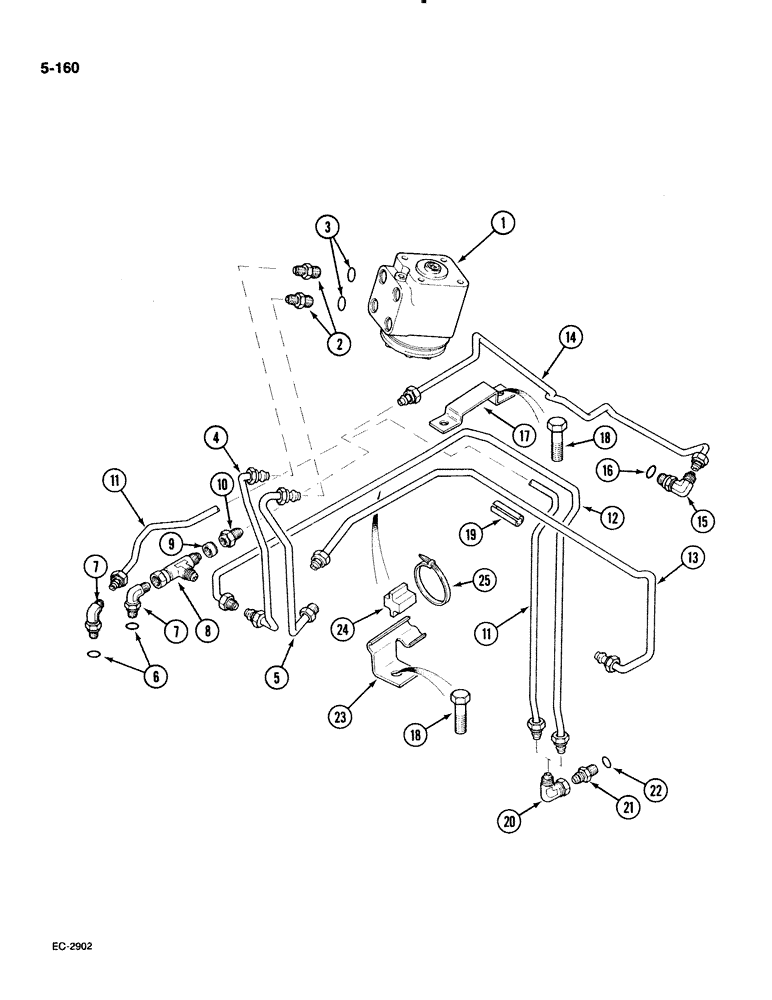

Запчасти Case IH 885 (5-160) - STEERING PIPES, REAR, WITHOUT CAB, P.I.N. 18001 AND AFTER (05) - STEERING

1

88107C91

PUMP

VALVE - integral, power steering, See Figure 5-178

1шт.

2

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - short, 1/2 inch OD tube

2шт.

3

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

2шт.

4

99798C1

PIPE

TUBE - power steering return

1шт.

5

99797C2

TUBE

- power steering pressure

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

2шт.

2 speed power shift, 4 wheel drive

1шт.

7

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

- 90 degree adjustable, 1/2 inch OD tube

2шт.

2 speed power shift, 4 wheel drive

1шт.

8

9410333

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

UNION - tee, swivel, 1/2 inch OD tube

1шт.

2 speed power shift, 4 wheel drive

1шт.

9

9403372

CAP,37 Degree, 3/4"-16

- 1/2 inch OD tube, 2 speed power shift

1шт.

10

99799C1

FITTING

UNION - reducer, 4 wheel drive

1шт.

11

99778C2

PIPE

TUBE - power steering return, rear

1шт.

2 speed power shift, 4 wheel drive

1шт.

12

99800C2

PIPE

TUBE - power steering return, rear

1шт.

2 wheel drive without 2SPS

1шт.

13

99777C3

PIPE

TUBE - power steering pressure, rear

1шт.

14

94365C3

PIPE

TUBE - transfer box

1шт.

2 wheel drive without 2SPS

1шт.

15

99865C1

ELBOW

- 90 degree, 5/16 inch OD tube, 4 wheel drive

1шт.

17

99953C1

CLAMP

BRACKET - pipe retaining, if fitted

1шт.

18

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

- hex, 3/8 NC x 7/8 inch, grade 5

1шт.

19

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve, If fitted 0.31" ID x 2.50"

2шт.

20

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 1/2 inch OD tube

1шт.

21

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - short, 1/2 inch OD tube

1шт.

22

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

1шт.

23

529638R1

BRACKET

- rear manifold, if fitted

1шт.

24

529637R2

GUIDE

- manifold tube, if fitted

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle, as fitted

2шт.

16

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, class 6, 4 wheel drive

1шт.
