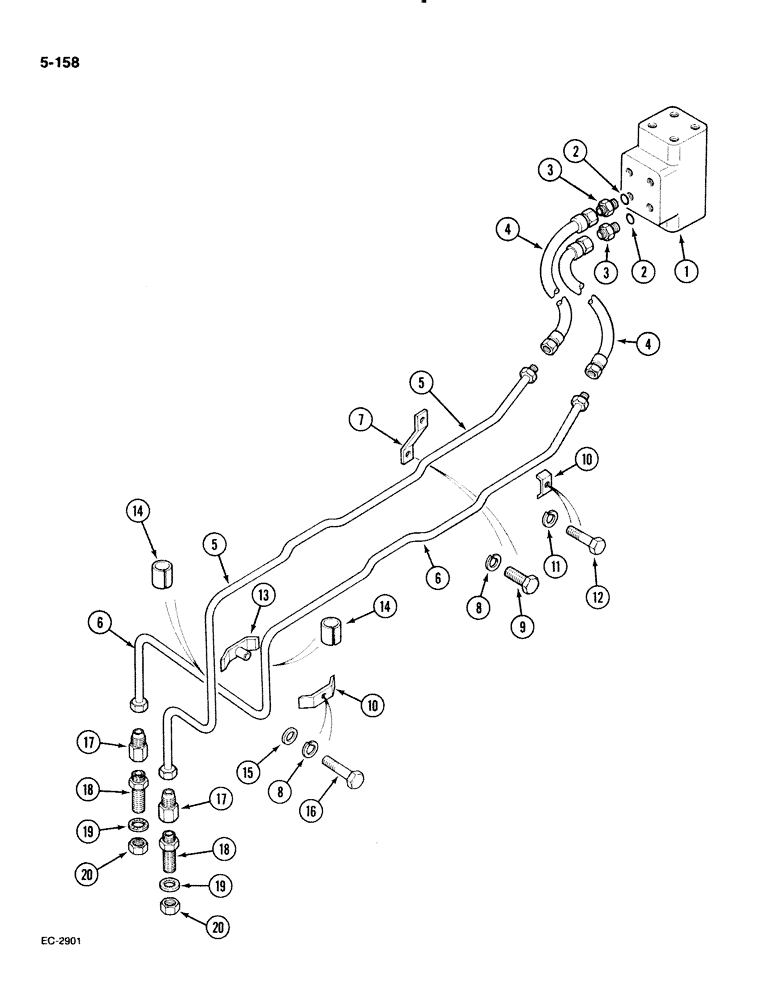

Запчасти Case IH 885 (5-158) - STEERING PIPES, FRONT, P.I.N. 18001 AND AFTER (05) - STEERING

1

88107C91

PUMP

VALVE - integral, power steering, See Figure 5-178

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

2шт.

3

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

2шт.

4

99784C1

HOSE

- flexible, without cab

2шт.

4

1502283C1

HOSE

- flexible, with cab

2шт.

5

99753C1

PIPE

TUBE - power steering, front left, with cab

1шт.

5

99753C1

PIPE

TUBE power steering, front left

1шт.

Without cab, 2 wheel drive with bar type rear axle or 4 wheel drive

1шт.

5

1536978C1

HYD TUBE

TUBE power steering, front left

1шт.

Without cab, 2 wheel drive with bar type rear axle or 4 wheel drive

1шт.

5

99486C1

PIPE

TUBE - power steering, front left

1шт.

Without cab, 2 wheel drive with bar type rear axle

1шт.

5

1282990C2

HYD TUBE

TUBE power steering, front left

1шт.

Without cab, 2 wheel drive with flange type rear axle, and high clearance or fabricated bolsters

1шт.

5

1536979C1

HYD TUBE,0.375" OD, 898.3, 326 mm Length

TUBE - power steering, front left

1шт.

Without cab, 2 wheel drive with flange type rear axle, and high clearance or fabricated bolsters

1шт.

6

99752C1

PIPE

TUBE - power steering, front right, with cab

1шт.

6

99752C1

PIPE

TUBE - power steering, front right

1шт.

Without cab, 2 wheel drive with bar type rear axle or 4 wheel drive

1шт.

6

99485C1

PIPE

TUBE - power steering, front right

1шт.

Without cab, 2 wheel drive with bar type rear axle

1шт.

6

1282991C2

HYD TUBE

TUBE - power steering, front right

1шт.

Without cab, 2 wheel drive with flange type rear axle, and high clearance or fabricated bolsters

1шт.

7

1500313C1

SUPPORT

BRACKET power steering pipe, front

1шт.

7

15377054C1

BRACKET power steering pipe, front

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

10

529644R1

CLAMP

- tube

2шт.

11

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

1шт.

12

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, M6 x 25 mm, class 8.8

1шт.

13

529644R11

CLAMP

- tube

1шт.

14

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

15

95-11028

WASHER,1/4"

- flat, 0.281 x 0.625 x 0.051 inch

1шт.

16

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch, grade 5

1шт.

17

99713C1

FITTING

UNION - adapter, with cab

2шт.

17

99713C1

FITTING

UNION - adapter

2шт.

Without cab, 4 wheel drive

1шт.

18

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION - bulkhead, 3/8 inch OD tube

2шт.

19

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

20

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - lock, bulkhead union, 3/8 inch

2шт.
