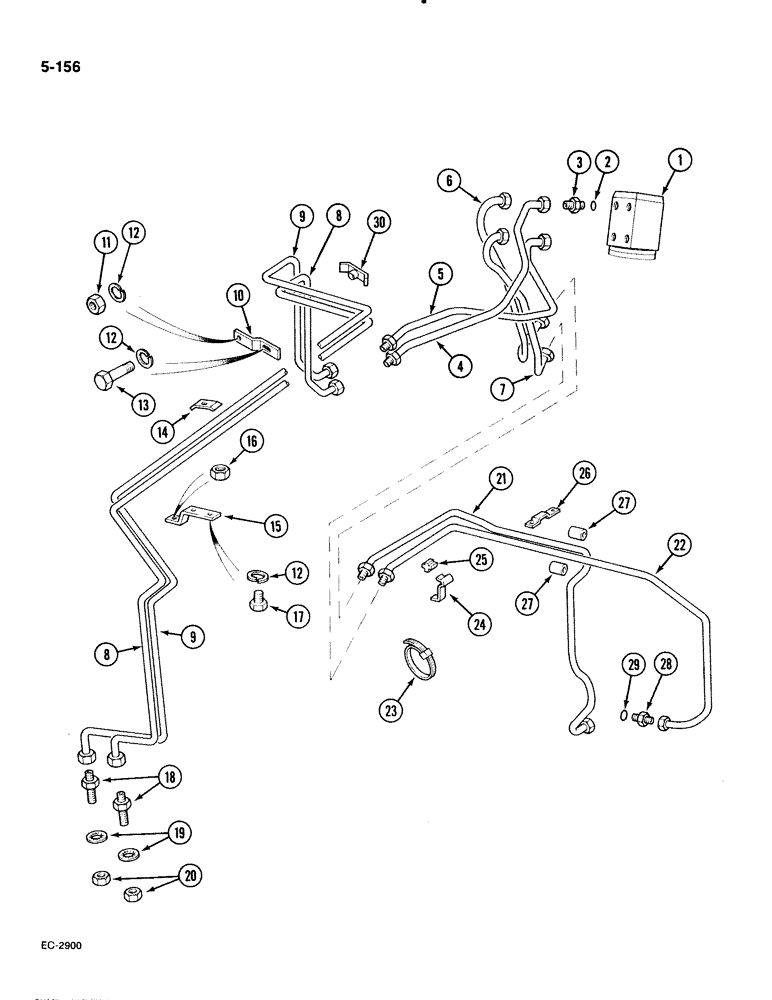

Запчасти Case IH 885 (5-156) - STEERING PIPES, PRIOR TO P.I.N. 18001 (05) - STEERING

1

67698C93

VALVE

- integral, power steering, See Figure 5-176

1шт.

2

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

4шт.

3

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

4шт.

4

3116267R1

TUBE ASSY.

TUBE - power steering, left

1шт.

5

3116268R3

TUBE ASSY.

TUBE - power steering, right

1шт.

6

3116272R2

TUBE ASSY.

TUBE - power steering return

1шт.

7

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE - power steering pressure

1шт.

8

3125264R1

TUBE ASSY.,9.53 mm OD, 1051.1, 654.5 mm Length

TUBE - power steering, front left

1шт.

Heavy duty front axle and fabricated bolster

1шт.

8

3125264R1

TUBE ASSY.,9.53 mm OD, 1051.1, 654.5 mm Length

TUBE - power steering, front left, 4 wheel drive

1шт.

8

99717C1

PIPE

TUBE - power steering, front left

1шт.

Adjustable front axle and cast bolster

1шт.

9

3125265R1

PIPE,9.53 mm OD, 1051.1, 654.5 mm Length

TUBE - power steering, front right

1шт.

Heavy duty front axle and fabricated bolster

1шт.

9

3125265R1

PIPE,9.53 mm OD, 1051.1, 654.5 mm Length

TUBE - power steering, front right, 4 wheel drive

1шт.

9

99718C1

PIPE

TUBE - power steering, front right

1шт.

Adjustable front axle and cast bolster

1шт.

10

529642R1

BRACKET

- front manifold

1шт.

11

109084

NUT,1/4"-20, G5

1шт.

12

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

13

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch, grade 5

1шт.

14

529644R11

CLAMP

- tube

1шт.

15

529646R1

BRACKET

- front manifold support

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

1шт.

17

179795

TILLAGE BLADE

- hex, 1/4 NC x 3/4 inch, grade 5

1шт.

18

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION - bulkhead, 3/8 inch OD tube

2шт.

19

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

20

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT - lock, bulkhead union, 3/8 inch

2шт.

21

3129257R1

TUBE ASSY.

TUBE - power steering return, rear

1шт.

22

1502293C1

TUBE

- power steering pressure, rear

1шт.

23

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle

2шт.

24

529638R1

BRACKET

- rear manifold

1шт.

25

529637R2

GUIDE

- manifold tube

1шт.

26

3129261R1

BRACKET

- pipe retaining

1шт.

27

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

28

57577C1

CHECK VALVE

VALVE - check

1шт.

29

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

30

384891R11

CLAMP

- tube

1шт.
