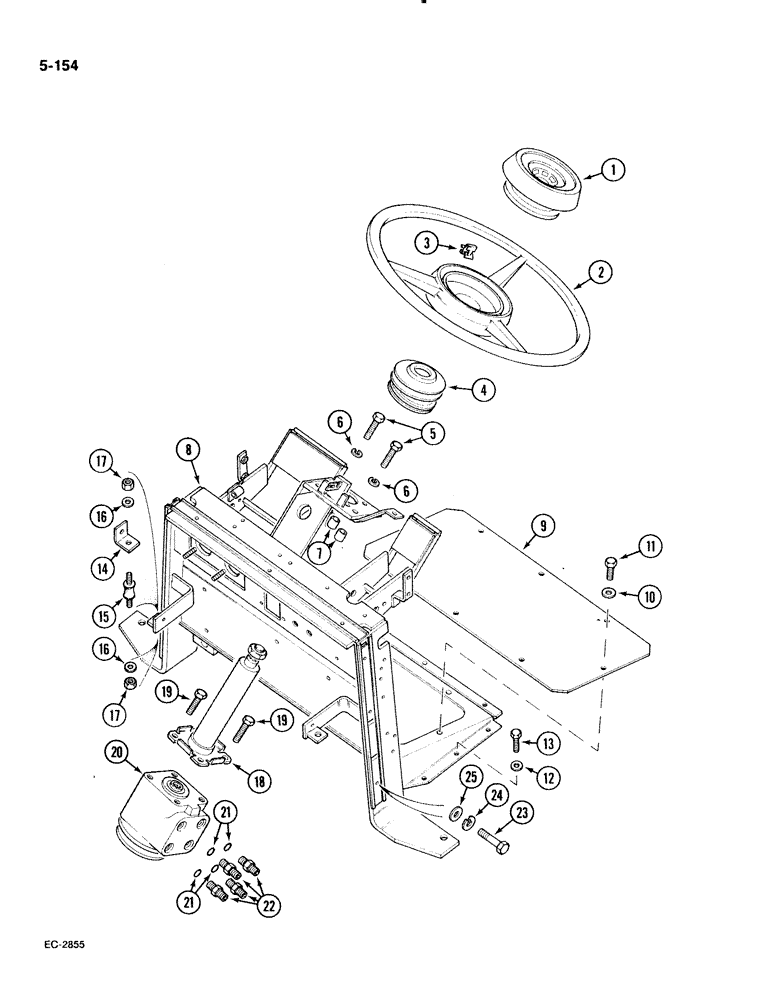

Запчасти Case IH 885 (5-154) - STEERING WHEEL, SUPPORT AND VALVE (05) - STEERING

1

68837C2

CAP

- steering wheel

1шт.

2

3123597R91

HANDWHEEL

WHEEL - steering, 408 mm dia., Includes: Ref. 3

1шт.

3

238-5149

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

(Replaces 3123598R1 clip) -149, 90 Duro, 2.8" ID x .103" Thk

3шт.

4

3399137R1

BELLOWS

BOOT - rubber, steering post

1шт.

5

138244

HEX SOC SCREW,3/8" - 16 x 1 1/2"

2шт.

6

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe, 3/8 x 1 inch

2шт.

8

3399466R5

SUPPORT

- steering

1шт.

9

3129869R1

PANEL

- steering support

1шт.

1536046C1

PANEL ASSY.

BOARD toe

1шт.

1536047C1

INSULATOR

INSULATION toe board

1шт.

1536048C1

LINING

INSULATION heel board

1шт.

1536049C1

INSULATOR

INSULATION center, foot well

1шт.

1536050C1

LINING

INSULATION, RH, foot well

1шт.

1536051C1

LINING

INSULATION, LH, foot well

1шт.

1536055C1

LINING

INSULATION console

1шт.

10

934675R1

WASHER,M8 x 16 x 1.6

Flat M8 x 16 x 1.6

8шт.

11

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

12

934673R1

WASHER,M8.4 x 25 x 2

- plain, 8 mm

10шт.

13

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

8шт.

13

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

14

3129867R1

SUPPORT

BRACKET - hood support

2шт.

15

3129866R1

SHOCK ABSORBER

BLOCK - isolating

2шт.

16

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

4шт.

17

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

4шт.

18

3129610R91

STEERING COLUMN

POST - power steering

1шт.

19

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

20

67698C93

VALVE

- integral, power steering, See Figure 5-176, Serial Range: -18001

1шт.

20

88107C91

PUMP

VALVE - integral, power steering, See Figure 5-178, Start Serial: 18001

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

4шт.

22

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

4шт.

23

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

- hex, M10 x 20 mm, class 8.8, ZND

4шт.

24

933965R1

LOCK WASHER,M10

2шт.

25

934674R1

WASHER,M10.5 x 30 x 2.5

- flat, 10.5 x 30 x 2.5 mm

4шт.

1537340C1

O-RING,44.12mm ID x 2.62mm Width

fits between Ref. 18 post and Ref. 20 valve

1шт.
