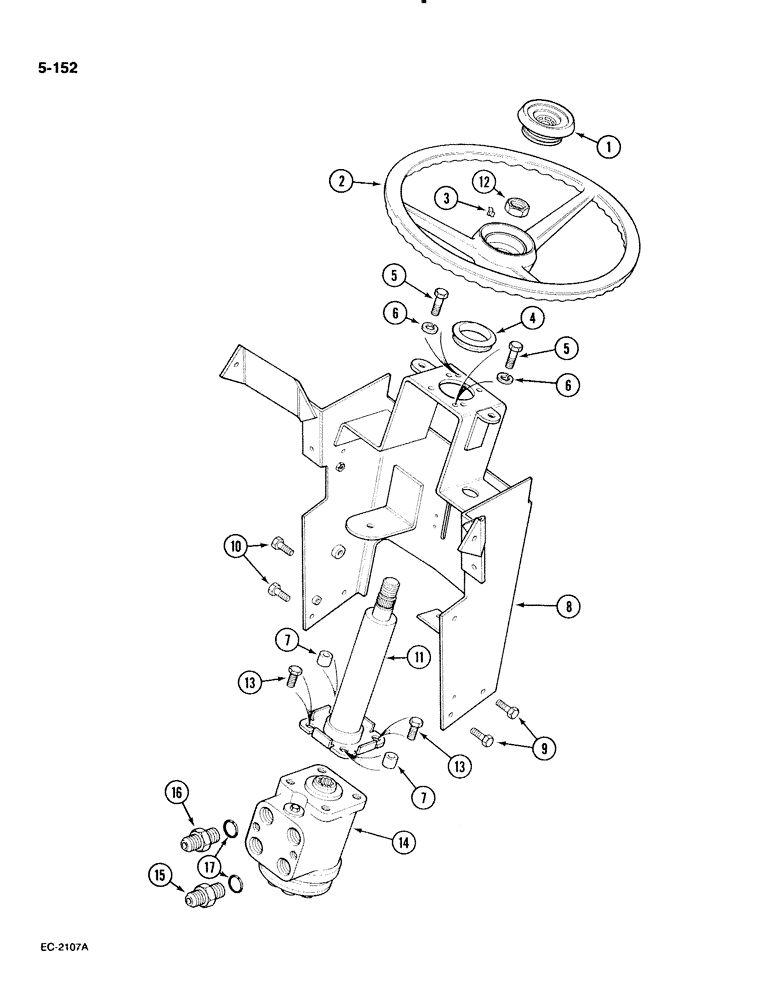

Запчасти Case IH 885 (5-152) - STEERING WHEEL, SUPPORT AND VALVE, WITHOUT CAB (05) - STEERING

1

68837C2

CAP

- steering wheel

1шт.

2

3123597R91

HANDWHEEL

WHEEL - steering, 408 mm dia., Includes: Ref. 3

1шт.

2

3123302R91

HANDWHEEL

WHEEL - steering, 408 mm dia, low dish, low profile tractor, Includes: Ref. 3

1шт.

3

238-5149

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

(Replaces 3123598R1 clip) -149, 90 Duro, 2.8" ID x .103" Thk

1шт.

4

3123366R1

PLUG

BOOT - rubber, steering shaft

1шт.

5

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

- hex, 3/8"-16 NC x 1-1/4", G5

2шт.

6

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe, 3/8 x 1 inch

2шт.

8

3121632R2

SUPPORT ASSY.

SUPPORT - steering, Serial Range: -18001

1шт.

8

99968C1

STEERING SUPPORT

SUPPORT - steering, Start Serial: 18001

1шт.

9

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

2шт.

11

3121187R91

SHAFT

- steering, with nut, Includes: Ref. 12

1шт.

12

F19646

LOCK NUT,13/16"-20, Thin

NUT - hex, steering shaft, 13/16 inch

1шт.

13

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

14

67698C93

VALVE

- integral, power steering, See Figure 5-176, Serial Range: -18001

1шт.

14

88107C91

PUMP

VALVE - integral, power steering, See Figure 5-178, Start Serial: 18001

1шт.

15

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch

2шт.

16

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION - straight, 3/8 to 1/2 inch, Serial Range: -18001

2шт.

16

9410203

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

UNION - short, 1/2 inch OD tube, Start Serial: 18001

2шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 inch OD tube, class 6

4шт.

88107C92

PUMP

steering, new

1шт.

366441A1R

REMAN-HYD PUMP

885 (NORTH AMERICA) (1/86-12/90), Reman for New PN 88107C92

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1537340C1

O-RING,44.12mm ID x 2.62mm Width

new, fits between shaft, Ref. 11, and valve, Ref. 14

1шт.
