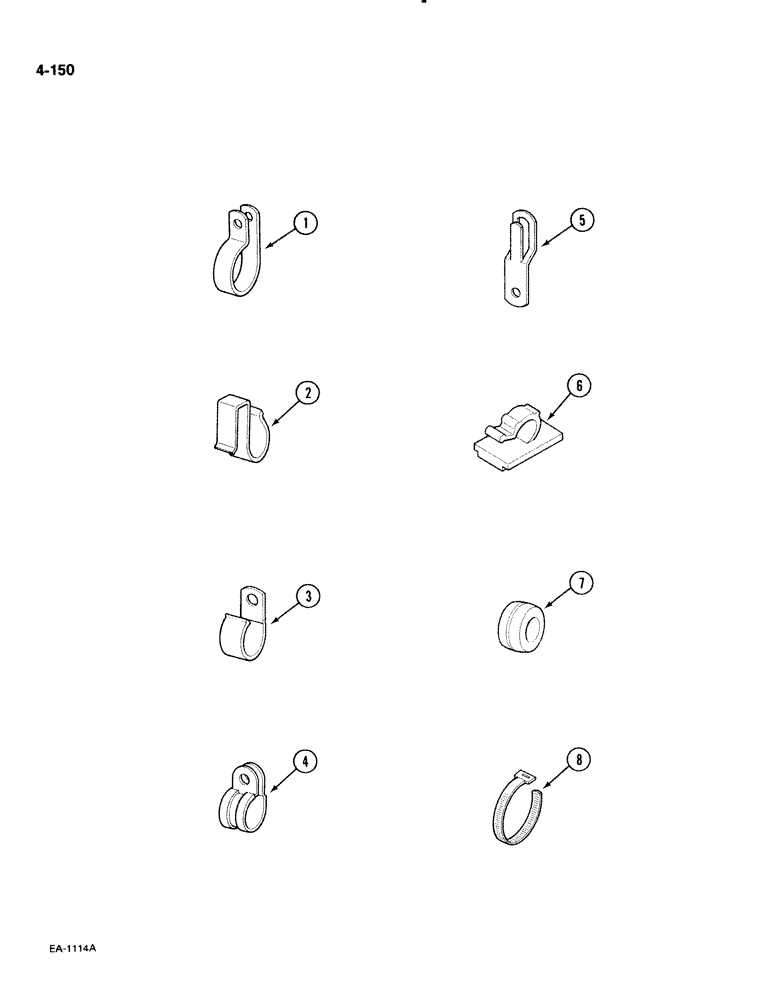

Запчасти Case IH 885 (4-150) - ELECTRICAL CLIPS, STRAPS AND GROMMETS (04) - ELECTRICAL SYSTEMS

1

3116240R1

CLIP

- 0.56 diameter, closed, battery cable, without cab

1шт.

2

3116918R1

CABLE CLIP

CLIP - edge, 0.25 max diameter, air cleaner bracket

1шт.

2

3123109R1

CABLE CLIP

CLIP - edge, 0.35 max diameter, temperature sender cable

1шт.

2

3125873R1

CLIP

- edge, 0.374 max diameter, front grille, without cab

2шт.

2

537024R1

CLIP

- edge, 0.46 max diameter, front grille support, with cab

1шт.

2

537024R1

CLIP

- edge, 0.46 max diameter, seat deck, left, without cab

1шт.

2

537025R1

CLIP

- edge, 0.55 max diameter, master cylinder bracket

1шт.

2

539015R1

CLIP

- edge, 0.75 max diameter, park brake flasher, without cab

1шт.

2

535303R1

CABLE CLIP

CLIP - edge, 0.95 max diameter, battery tray, without cab

1шт.

3

366460R1

CABLE CLIP

CLIP - 0.25 diameter, open, front cover, right, without cab

1шт.

3

100770H

CLIP

- 0.31 diameter, open, grille shroud, left, without cab

1шт.

3

316433C1

CLAMP

CLIP - 0.50 diameter, open, main harness, without cab

1шт.

3

316433C1

CLAMP

CLIP - 0.50 diameter, open, grille tie bar, left, with cab

1шт.

3

316433C1

CLAMP

CLIP - 0.50 diameter, open, grille shroud, with cab

2шт.

3

1500151C1

CLAMP

CLIP - 0.75 diameter, open, front harness to engine, with cab

2шт.

4

3125823R1

CLIP

- 0.75 diameter, battery tray, without cab

1шт.

5

708115R1

PLATE ASSY.

CLIP - spring type

1шт.

6

1500496C1

CABLE CLIP

CLIP - cable, 3.0 mm diameter, fuel tank, left, with cab

2шт.

6

1502353C1

CABLE CLIP

CLIP - cable, 6.5 mm diameter, instrument panel, with cab

2шт.

6

1502354C1

CABLE CLIP

CLIP - cable, 9.0 mm diameter, instrument panel, with cab

2шт.

7

3113661R1

GROMMET

- left and right fenders, without cab

2шт.

7

705548R1

GROMMET

- 0.25 x 0.56 inch, rear fender top, without cab

1шт.

7

3115463R1

GROMMET

- 0.50 x 0.88 inch, fender side sheet, without cab

1шт.

7

3123681R1

GROMMET

- 0.31 x 0.56 inch, rear flasher lamps, without cab

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, battery cable, without cab

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, battery support, without cab

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, battery tray, without cab

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, fuel pipe, without cab

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, steering support, without cab

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, front/cab harness, with cab

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, tachometer drive cable

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, oil pressure gauge tube

2шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, battery earth cable, without cab

1шт.

8

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle, front/starter harness, with cab

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle, air inlet pipe, with cab

2шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle, steering support, without cab

1шт.

8

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle, instrument shroud, without cab

1шт.
