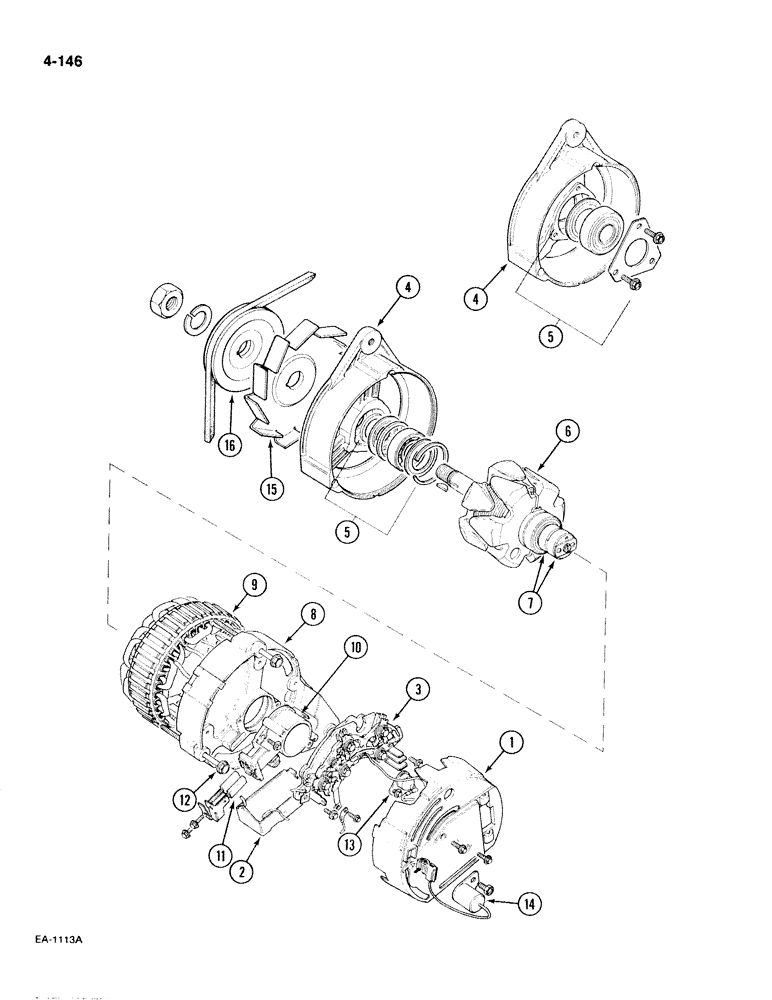

Запчасти Case IH 885 (4-146) - ALTERNATOR, LUCAS A115-45 AND A133-75 (04) - ELECTRICAL SYSTEMS

245538C91

ALTERNATOR

ALTERNATOR - Lucas, A115-45, without fan and pulley, Includes: Ref. 1 thru 14 and sundry parts kit, screw kit, spacer kits and terminal kit

1шт.

92293C1R

REMAN-ALTERNATOR

Reman For New PN 245538C91

1шт.

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

K956426

ALTERNATOR

Alternator

1шт.

104020A1GV

ALTERNATOR

Value, 12V, 26A

1шт.

104020A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 26 AMP Alternator

1шт.

104020A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 26 AMP Alternator

1шт.

104020A1RGV

ALTERNATOR

REMANUFACTURED 12 VOLT, 26 AMP ALTERNATOR

1шт.

84149C91

GENERATOR

ALTERNATOR - Lucas, A133-75, with fan, Includes Ref. 1 thru Ref. 15 P/N 84051C1 and fan washer

1шт.

Tractors with Sims cab prior to P.I.N. 18001

1шт.

1

245535C1

COVER

COVER - A115-45 alternator

1шт.

1

84105C1

COVER

COVER - A133-75 alternator

1шт.

2

84106C1

REGULATOR

REGULATOR - A133-75 alternator

1шт.

3

245537C1

RECTIFIER

RECTIFIER - alternator

1шт.

4

3116089R91

BRACKET

HOUSING - drive end, A115-45 alternator

1шт.

4

84107C1

BRACKET

SPARE PART HOUSING - drive end, A133-75 alternator

1шт.

5

3116096R91

BEARING ASSY

KIT - drive end bearing, A115-45 alternator

1шт.

5

84108C1

PACKAGE

KIT - drive end bearing, A133-75 alternator

1шт.

6

245540C1

ROTOR ASSY.

ROTOR - A115-45 alternator

1шт.

6

84109C1

ROTOR

SPARE PART ROTOR - A133-75 alternator

1шт.

7

245541C1

WHEEL BEARING KIT

KIT - bearing and slip ring

1шт.

7

245542C1

RING

RING - slip

2шт.

8

245543C1

BRACKET

BRACKET - slip ring end, A115-45 alternator

1шт.

8

84110C1

BRACKET

SPARE PART BRACKET - slip ring end, A133-75 alternator

1шт.

9

245544C1

STATOR

STATOR - A115-45 alternator

1шт.

9

84111C1

STATOR

STATOR - A133-75 alternator

1шт.

10

245545C1

BRUSH HOLDER

HOLDER, BRUSH BOX - brush

1шт.

11

245546C1

BRUSH SET

KIT - brush set, A115-45 alternator

1шт.

11

84112C1

BRUSH SET

KIT - brush set, A133-75 alternator

1шт.

12

245547C1

BOLT

SPARE PART BOLT - fixing, A115-45 alternator

3шт.

12

3122941R1

BOLT

BOLT - fixing, A133-75 alternator

3шт.

13

245886C1

RECTIFIER

RECTIFIER - surge protection, A115-45 alternator

1шт.

14

84115C1

ARMATURE

SPARE PART CAPACITOR - suppression, A133-75 alternator

1шт.

This is an Armature, Lucas 54217874 or UWB103. There is no Capacitor on 84149C91 Alternator.

1шт.

245548C1

PACKAGE

KIT - sundry parts, not illustrated

1шт.

245549C1

PACKAGE

KIT - screw, not illustrated

1шт.

245550C1

PACKAGE

KIT - spacer, not illustrated

1шт.

84114C1

PACKAGE

KIT - spacer, not illustrated

1шт.

84113C1

PACKAGE

KIT - terminal, not illustrated

1шт.

15

84051C1

FAN

FAN - A133-75 alternator, includes fan washer

1шт.

84150C1

SPACER

WASHER - fan, A133-75 alternator, not illustrated

1шт.

15

245533C1

FAN

KIT - fan, with spacer, 15 mm bore, A115-45 alternator

1шт.

16

245534C1

PULLEY

PULLEY - fan belt, 15 mm bore, A115-45 alternator

1шт.

1970879C1 pully will fit a 17mm shaft.

1шт.

16

91426C1

PULLEY

PULLEY - fan belt, 15 mm bore, A133-75 alternator

1шт.
