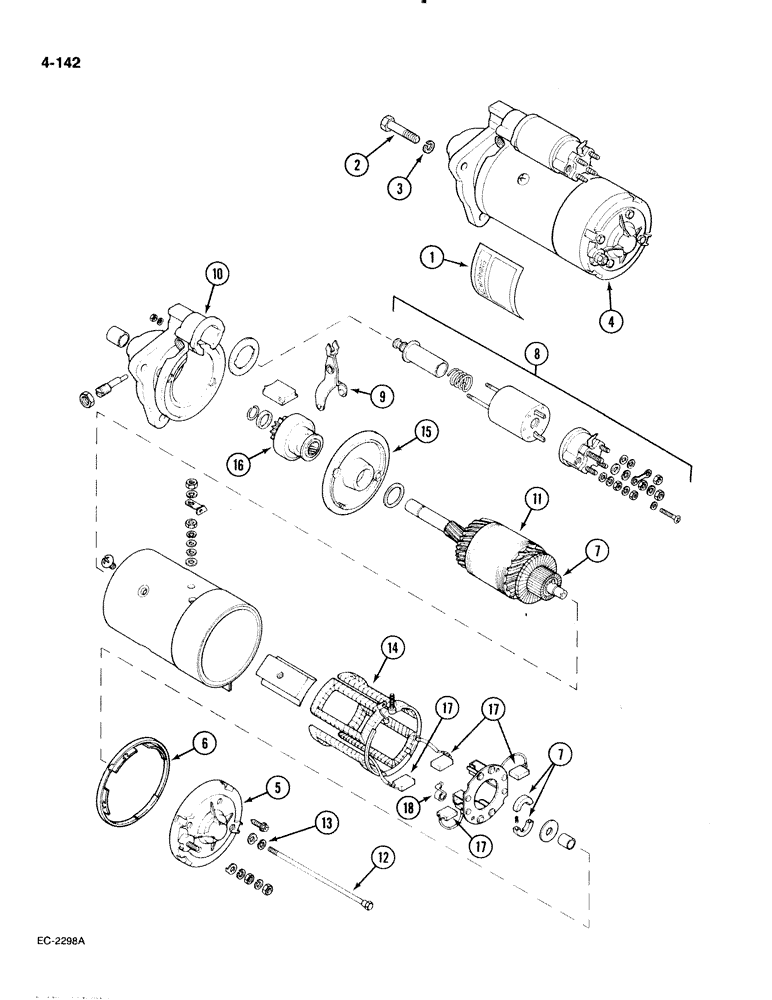

Запчасти Case IH 885 (4-142) - STARTER MOTOR, LUCAS (04) - ELECTRICAL SYSTEMS

1

321-3709

DECAL

DECAL - warning, starter motor, English

1шт.

2

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT - hex, 3/8"-16 NC x 1-1/4", G5

3шт.

3

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

537140R95

STARTER MOTOR

MOTOR - starting, Lucas No. 27508, Includes: Ref. 5 thru 18 and sundry parts kit, retention kit and sealing kit

1шт.

4

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

4

104200A1C

CORE-STARTER

Return Number

1шт.

5

3206511R91

BRACKET

KIT - commutator end frame

1шт.

6

3113026R91

PLATE ASSY.

PLATE - brush mounting

1шт.

7

3206531R91

BRAKE PACKAGE

KIT - brakes

1шт.

8

84060C1

SOLENOID SWITCH

SWITCH - solenoid

1шт.

9

84061C1

KIT

LEVER - solenoid engaging

1шт.

10

NSS

NOT SOLD SEPARAT

BRACKET - end mounting

1шт.

11

84059C1

ARMATURE

ARMATURE

1шт.

12

3129088R1

BOLT

BOLT - through

2шт.

13

3129089R1

WASHER

WASHER - spring

2шт.

14

84058C1

KIT

KIT - field coils

1шт.

15

3119902R91

SUPPORT

BEARING - intermediate

1шт.

16

84209C1

DRIVE ASSY.

DRIVE - complete assembly

1шт.

17

3118371R91

BRUSH, COMMUTATOR

BRUSH KIT - brushes

1шт.

18

3206523R91

SPRING KIT

KIT - brush springs

1шт.

3206529R91

KIT

KIT - sundry parts, not illustrated

1шт.

78986C1

PACKAGE

KIT - retention, not illustrated

1шт.

3206528R91

SEAL KIT

KIT - sealing, not illustrated

1шт.
