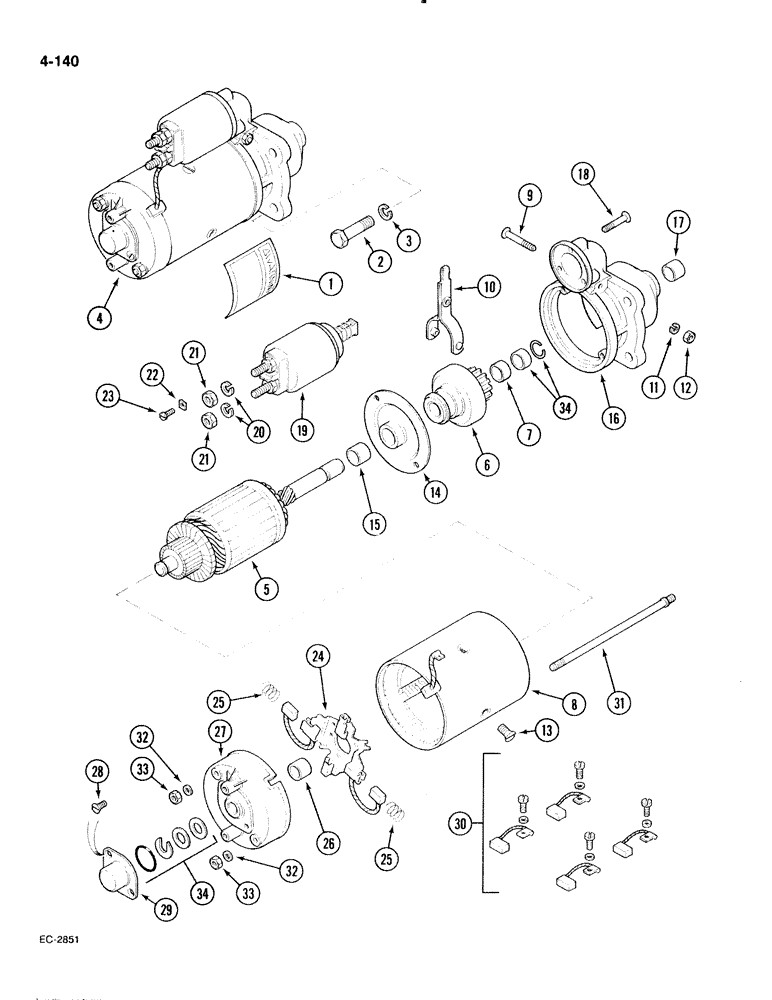

Запчасти Case IH 885 (4-140) - STARTER MOTOR, BOSCH (04) - ELECTRICAL SYSTEMS

1

321-3709

DECAL

DECAL - warning, starter motor, English

1шт.

2

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

BOLT - hex, 3/8"-16 NC x 1-1/4", G5

3шт.

3

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

529965R93

STARTING MOTOR

MOTOR - starting, Bosch, Includes: Ref. 5 - 34

1шт.

5

189330A5

STARTER MOTOR,12V, 2.8kW

KIT starter, Replaces: 3079252R1

1шт.

New starter is a bit larger than old, but will work. The mounting flanges of both old and new are the same size.

1шт.

5

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

5

189330A5R

REMAN-STARTER,12V, 2.8kW

Remanufactured Starter 12 volt, 2.8KW

1шт.

5

189330A5C

CORE-STARTER,12V, 2.8kW

Return Part Number, Starter 12 volt, 2.8KW

1шт.

5

104200A1R

REMAN-STARTER

Remanufactured Starter

1шт.

5

104200A1C

CORE-STARTER

Return Part Number

1шт.

6

3129631R1

DRIVE ASSY.

DRIVE - complete

1шт.

7

3079254R1

BUSHING

BUSHING - drive

1шт.

8

3079356R91

COIL

COIL - field winding, 1 to 4 complete

1шт.

9

3079251R1

BOLT

SCREW - engaging lever pivot

1шт.

10

3078965R1

LEVER

FORK - clutch drive engaging lever

1шт.

11

3079166R1

SPRING WASHER,M8.4 ID x 15 OD x .8 Thk

WASHER - lock, 8 mm

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

NUT, M8, Cl 10, Engaging lever

1шт.

13

3129639R1

SCREW

SCREW - field coil retaining

4шт.

14

3079253R91

HOUSING, BEARING

BEARING - intermediate

1шт.

15

3078967R1

BUSHING

BUSHING - bearing

1шт.

16

3129633R1

HOUSING

HOUSING - drive end

1шт.

17

3055738R1

BUSHING

BUSHING - drive end bearing

1шт.

18

3078974R1

SCREW

SCREW - solenoid switch retaining

3шт.

19

3078963R1

SOLENOID SWITCH

SWITCH - solenoid

1шт.

20

934075R1

LOCK WASHER,M10

LOCK WASHER, M10

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

NUT, (Solenoid Terminal) M10, Cl 8

2шт.

22

3132763R1

TERMINAL CONNECTOR

CLAMP - terminal

1шт.

23

931342R1

SCREW,Slotted Cheese, M4 x 0.7 x 6mm, Cl 8.8

SCREW - machine, pan slotted, M4 x 6 mm, class 8.8

1шт.

24

3079174R1

HOLDER

HOLDER - brush

1шт.

25

3079420R1

SPRING

SPRING - compression, brush

4шт.

26

3079170R1

BUSHING

BUSHING - commutator end

1шт.

27

3129632R91

END ASSY.

FRAME - commutator end

1шт.

28

3079426R1

SCREW

SCREW - fillister head, 5/16 inch

2шт.

29

3079177R1

CAP

CAP - commutator end frame

1шт.

30

3079359R1

KIT

KIT - brush set

1шт.

31

3079172R1

STUD

STUD - thru fixing

2шт.

32

3079176R1

WASHER

WASHER - plain, thru fixing stud

2шт.

33

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

NUT - hex, 6 mm, class 8

2шт.

34

3079173R91

KIT

KIT - terminal parts

1шт.
