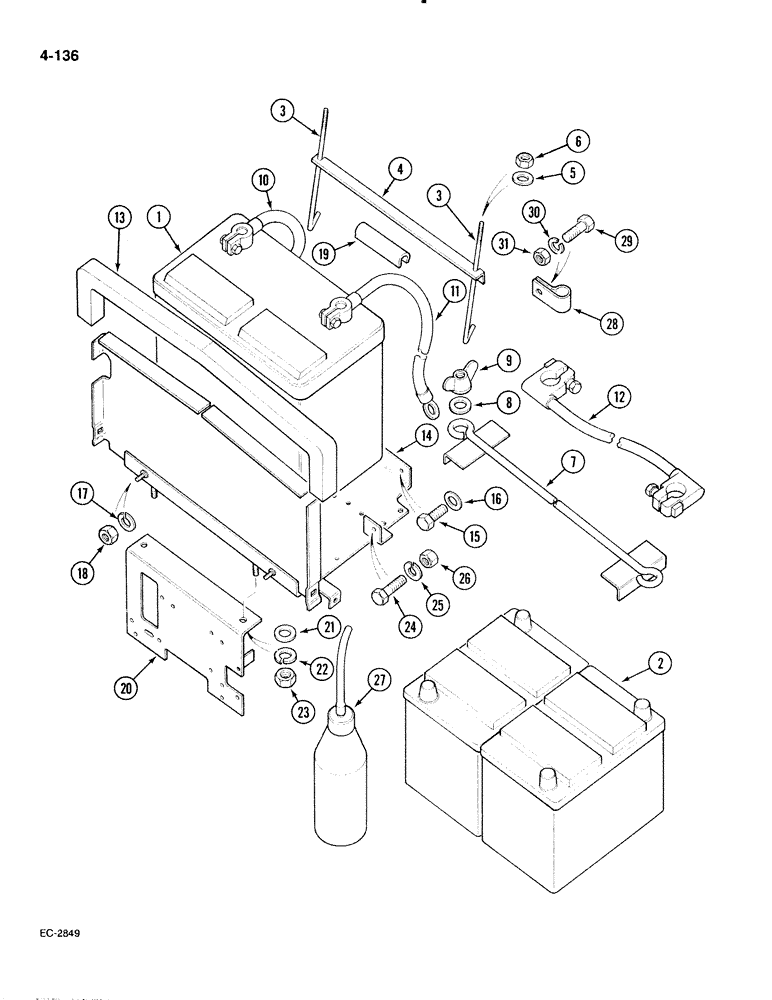

Запчасти Case IH 885 (4-136) - BATTERY, CABLES AND BATTERY TRAY, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

A186026

BATTERY, DRY

- dry charge, maintenance free, 12 volt

1шт.

2

D44177

DRY BATTERY

- heavy duty, 6 volt

2шт.

3

527605R3

ROD

- battery hold down

2шт.

4

3121178R1

BRACKET

- battery hold down, 12 volt

1шт.

5

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 0.344 x 0.688 x 0.051 inch, 12 volt battery

2шт.

6

120376

NUT,5/16"-18, G5

12 volt battery 5/16"-18, G5

2шт.

7

67845C1

SUPPORT

BRACKET - battery hold down, 2 x 6 volt

1шт.

8

27309R1

WASHER

- 0.344 x 0.688 x 0.051 inch, 2 x 6 volt battery

2шт.

9

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC, 2 x 6 volt battery

2шт.

10

537504R1

CABLE ASSY.

CABLE -, Serial Range: battery-ground

1шт.

11

1537299C1

CABLE

- battery to starter, Replaces: 528301R1

1шт.

12

370394R1

CABLE ASSY.

CABLE - battery, 2 x 6 volt

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - foam, 32.7 inch, cut from 73217C2

1шт.

13

73217C2

FILLING STRIP

SEAL - foam, bulk length, 4 foot roll (1.2 meter)

1шт.

14

3121626R1

TRAY ASSY.

TRAY - battery

1шт.

15

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

2шт.

16

120394

WASHER,3/8", SAE

WASHER - flat, 13/32 x 13/16 x 3/64 inch

2шт.

17

103319

LOCK WASHER,1/4"

WASHER, LOCK, , Power steering pipe clamp 1/4"

1шт.

18

109084

NUT,1/4"-20, G5

Power Steering Pipe Clamp, Not Illustrated 1/4"-20, G5

1шт.

19

3113841R1

MOLDING

MOULDING - edge

1шт.

20

3123057R2

SUPPORT ASSY.

SUPPORT - battery tray

1шт.

21

20893R1

WASHER

- plain, 0.344 x 1.00 x 0.105 inch

2шт.

22

120124

SCREW,Hex, M12 x 1.75 x 90mm, Cl 8.8, Full Thd

WASHER - lock, 5/16 inch

2шт.

23

120376

NUT,5/16"-18, G5

2шт.

24

179814

SPACER

- hex, 5/16 NC x 5/8 inch, grade 5

2шт.

25

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16 inch NC, grade 5

2шт.

27

B17086

ACID, BATTERY

ELECTROLYTE - battery

1шт.

28

3116240R1

CLIP

- 0.56 diameter, closed, starter motor cable

1шт.

29

450643

SCREW,Hex Hd, #8-32 x 3/8"

BOLT - hex, No. 8 x 3/8 inch

1шт.

30

492-11008

LOCK WASHER,#8

Washer, Lock, #8

1шт.

31

225-10108

NUT,#8-32

1шт.
