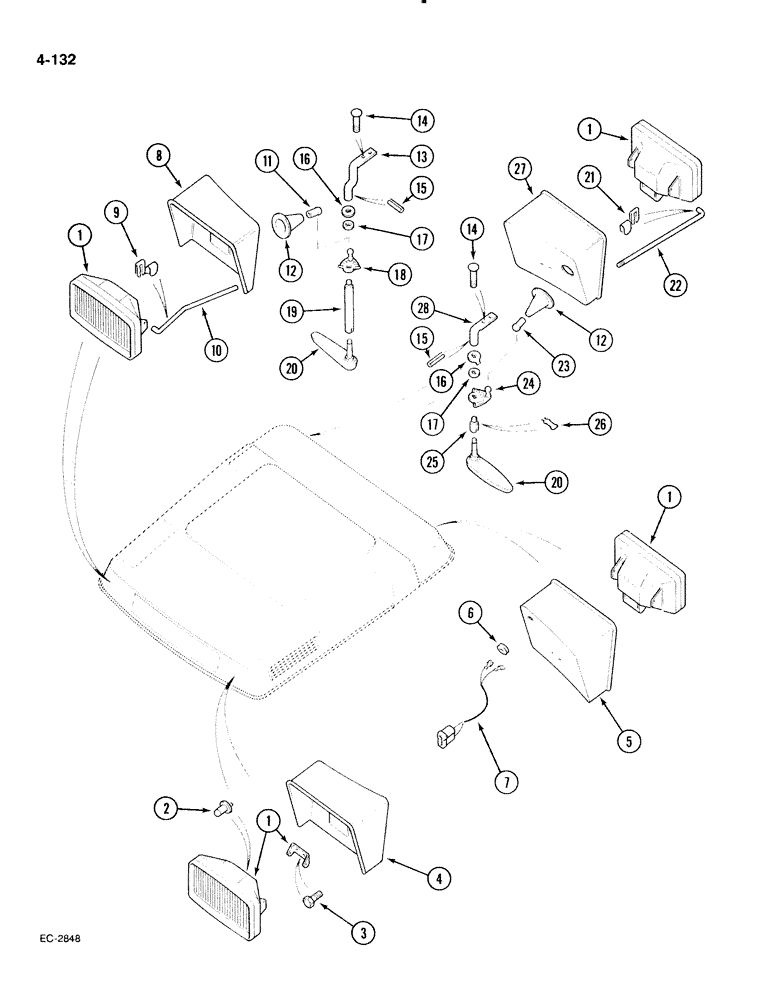

Запчасти Case IH 885 (4-132) - WORKLIGHTS (04) - ELECTRICAL SYSTEMS

1

1328615C1

LAMP, WORK

LIGHT - working spot

4шт.

2

3217310R1

BULB,H3, 12V, 55W

LAMP - halogen bulb, YC 12V/55W

1шт.

3

3234404R1

SCREW

- hex, hi-lo, 6.3 x 30 mm

8шт.

4

3233558R3

BASE

- light, front left

1шт.

5

3233556R3

BASE

- light, rear left

1шт.

6

3234152R1

GROMMET

4шт.

7

3399341R1

CABLE

- flying lead, worklight

4шт.

8

3233559R3

BASE

- light, front right

1шт.

9

3234397R1

CLIP

- left hand

1шт.

10

3234385R91

ROD ASSY.

ROD - right, front light, Includes: Ref. 11

1шт.

11

3233279R1

BALL JOINT

JOINT - ball

1шт.

12

3234153R1

GROMMET

INSULATOR - bellow

2шт.

13

3234401R1

SUPPORT

- right, front light

1шт.

14

24407R1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Cross Pan Hd, 1/4" x 1/2"

4шт.

15

30786R1

LOCK PIN,M2 x 14, Slotted

PIN - slotted spring, 2 x 14 mm

2шт.

16

3234405R1

WASHER, LOCK

SHIM

2шт.

17

3233281R1

WASHER,M14 ID x 20 OD x 1 Thk

WASHER - flat

2шт.

18

3234383R1

SEGMENT

- weldment

1шт.

19

3234403R1

PIN

- front right worklight

1шт.

20

3234375R91

HANDLE

- front and rear worklights

2шт.

21

3234398R1

CLIP

- right hand

1шт.

22

3234387R91

ROD ASSY.

ROD - rear right worklight, Includes: Ref. 23

1шт.

23

3233279R1

BALL JOINT

JOINT - ball

1шт.

24

3234389R1

BRACKET

SEGMENT - weldment

1шт.

25

3234406R1

PIN

- rear right worklight

1шт.

26

3234400R1

CLIP

- spring

1шт.

27

3233557R3

BASE

- light, rear right

1шт.

28

3234402R1

SUPPORT

- rear right light

1шт.
