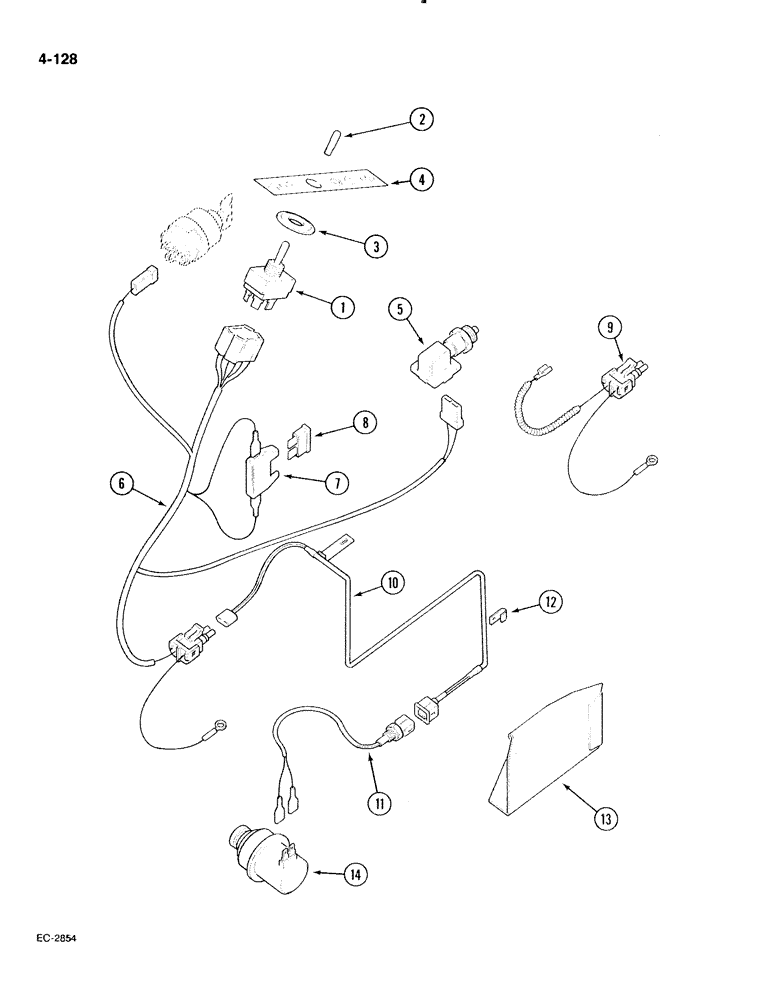

Запчасти Case IH 885 (4-128) - TWO SPEED POWER SHIFT CONTROL, P.I.N. 18001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

91858C1

TOGGLE SWITCH

SWITCH toggle, 2SPS control

1шт.

1

1536666154C1

SWITCH

1шт.

2

91833C1

BUTTON

KNOB toggle switch

1шт.

2

1536156C1

COVER

KNOB

1шт.

3

91920C2

ADAPTER

- 2 speed power shift switch, without cab

2шт.

4

98098C1

DECAL

- 2 speed power shift, with cab

1шт.

4

1330901C1

DECAL

- 2 speed power shift, without cab

1шт.

5

1964885C2

SWITCH

- plunger, fine thread, neutral starting, with cab use bracket 1970883C1, See Figure 6-214, without cab use bracket 1500214C1, See Figure 4-114

1шт.

5

83907C2

SWITCH

- plunger, coarse thread, neutral starting, with cab use bracket 3129802R1, See Figure 6-214, without cab use bracket 1331148C1, See Figure 4-114

1шт.

6

91850C4

HARNESS

- instrument panel, with cab, Includes: Ref. 7 and 8

1шт.

6

92218C2

HARNESS

CABLE - 2 speed power shift solenoid, without cab, Includes: Ref. 7 and 8

1шт.

7

1970917C1

HOLDER

- fuse, without cab

1шт.

8

A149800

FUSE,10 Amp

- auto type, 10 amp, red

1шт.

9

91917C2

CABLE

- 2 speed power shift solenoid, with cab

1шт.

10

99992C2

CABLE

- 2 speed power shift, without cab

1шт.

10

99991C1

CABLE

- two speed power shift, with cab

1шт.

11

99990C1

HARNESS

CABLE - solenoid, See Figure 8-376

1шт.

12

92071C1

CLAMP

CLIP - solenoid cable

1шт.

13

99952C2

SHIELD

- solenoid cable

1шт.

14

1958120C1

SOLENOID VALVE

VALVE - solenoid, See Figure 8-380

1шт.
