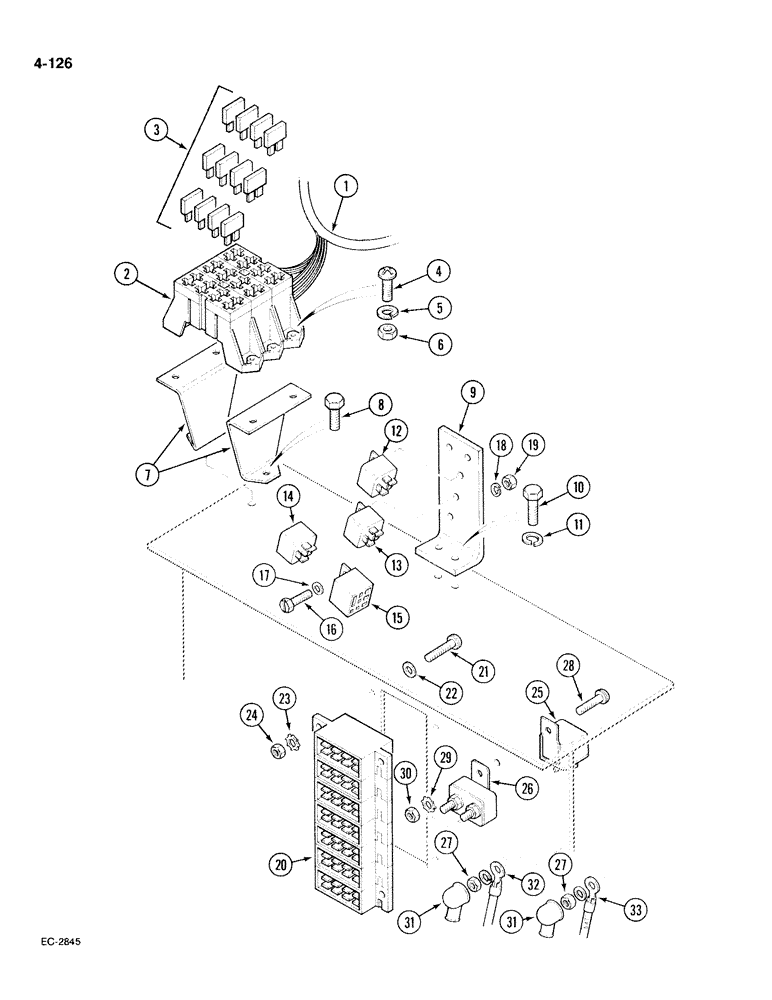

Запчасти Case IH 885 (4-126) - ELECTRICS, CAB BULKHEAD (04) - ELECTRICAL SYSTEMS

1

91850C4

HARNESS

instrument panel, Includes: Ref. 2

1шт.

1

1536001C3

HARNESS

wiring, new, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - fuse holder

1шт.

3

A149796

FUSE

- auto type, 3 amp, violet

1шт.

3

A149798

FUSE

- auto type, 5 amp, tan

1шт.

3

A149800

FUSE,10 Amp

- auto type, 10 amp, red

1шт.

3

A149801

FUSE,Lt Blue, 15 Amp

- auto type, 15 amp, light blue

1шт.

3

A149802

FUSE

- auto type, 20 amp, yellow

1шт.

3

A149803

FUSE,25 Amp

- 25 amp

1шт.

3

A149804

FUSE

- 30 amp

1шт.

4

30277R1

SCREW,Cross Pan Hd, M4 x 14

- pan, cross recess, M4 x 14 mm, class 4.8

4шт.

5

933832R1

LOCK WASHER,M4

WASHER - lock, 4 mm

4шт.

6

30267R1

NUT,M4, Cl 8

- hex, 4 mm, class 10

4шт.

7

91844C1

SUPPORT

BRACKET - fuse box

2шт.

8

814-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

- hex, M4 x 16 mm, class 4.8

2шт.

9

3129809R1

SUPPORT

BRACKET - reservoir support

1шт.

10

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, M6 x 20 mm, class 8.8

2шт.

11

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

12

3146359R1

RELAY

- miniature, with bracket, rear lights

1шт.

13

3146359R1

RELAY

- miniature, with bracket, cab power

1шт.

14

3221235R2

RELAY

- miniature, without bracket, 4 wheel drive

1шт.

15

NSS

NOT SOLD SEPARAT

BLOCK - relay mounting

1шт.

16

931340R1

SCREW,Slotted Cheese, M5 x 0.8 x 12mm, Cl 4.8

- machine, pan slotted, M5 x 12 mm, class 8.8

1шт.

17

934044R1

WASHER,M5.3 ID x 10 OD x 1 Thk

- flat, 5 mm

1шт.

18

933844R1

LOCK WASHER,M5

WASHER - lock, 5 mm

1шт.

19

933972R1

NUT

- hex, M5

1шт.

20

3399527R2

CONNECTOR, ELEC

CONNECTOR - bulkhead

1шт.

21

30479R1

SCREW,Cross Pan Hd, M5 x 16

- pan, cross recess, M5 x 16 mm, class 4.8

4шт.

22

933672R1

WASHER,M5 x 10 x 1

- plain, 5.5 x 10.0 x 1.0 mm

4шт.

23

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER - lock, external tooth, 5 mm

4шт.

24

934871R1

NUT,M5, Cl 5

- hex, 5 mm, class 5

4шт.

25

3146359R1

RELAY

- miniature, with bracket, front work lights

1шт.

26

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 amp, auto-reset, Includes: Ref. 27

1шт.

27

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

28

30278R1

SCREW,Cross Pan Hd, M5 x 14

- pan head, cross recess, M5 x 14 mm, class 4.8

1шт.

29

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER - lock, external tooth, 5 mm

1шт.

30

934871R1

NUT,M5, Cl 5

- hex, 5 mm, class 5

1шт.

31

1333006C1

BOOT

- rubber

2шт.

32

1328852C2

HARNESS

- cab

1шт.

33

92348C1

HARNESS

front

1шт.

33

1536960C1

HARNESS

front, used with M & A fuse boxes instead of Rists

1шт.

33a

1536961C1

HARNESS

wire, front, used with digital dash, not shown

1шт.
