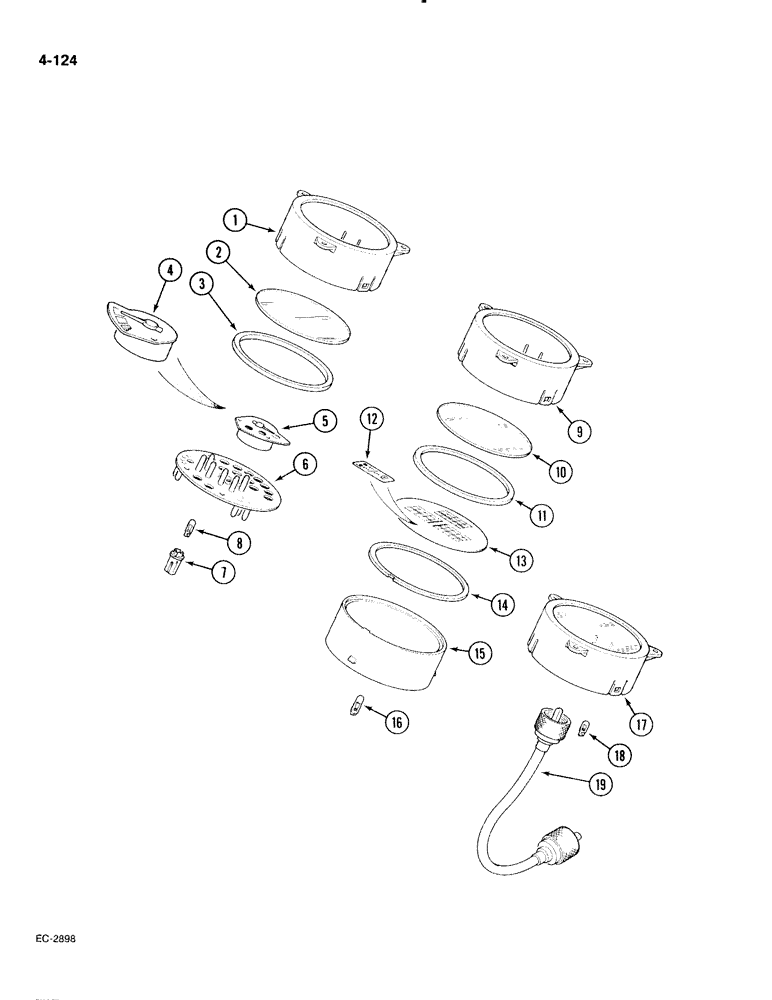

Запчасти Case IH 885 (4-124) - INSTRUMENTS (04) - ELECTRICAL SYSTEMS

1

107444C2

CLUSTER

- gauges and warning lights, Includes: Ref. 2 - 8

1шт.

2

1502004C1

LENS

- glass

1шт.

3

1500499C1

GASKET

- deco plate module

1шт.

4

1502009C1

FUEL GAUGE

GAUGE - fuel

1шт.

5

1502008C1

GAUGE ASSY.

GAUGE - temperature

1шт.

6

1502010C1

BOARD, PRINTED CIRCU

BOARD - printed circuit

1шт.

7

1502007C1

HOLDER

SOCKET - Lamp

14шт.

8

3141107R1

BULB,W5/1.2, 12V, 1.2W

14шт.

9

1500498C1

BEZEL

- deco plate module

1шт.

10

1502004C1

LENS

- glass

1шт.

11

1500499C1

GASKET

- deco plate module

1шт.

12

1093099R1

PRODUCT GRAPHIC

DECAL - IPTO speed chart, dual speed

1шт.

12

1093098R1

PRODUCT GRAPHIC

DECAL - IPTO speed chart, single speed

1шт.

13

1135218R1

DECAL

- speed chart, mph, flange type rear axle, See Figure 9-554

1шт.

13

1135203R1

DECAL

- speed chart, mph, bar type rear axle, See Figure 9-554

1шт.

14

1502005C1

SPACER

- deco plate module

1шт.

15

1500500C1

HOUSING

- deco plate module

1шт.

16

1500502C1

LAMP

- 12V/1.5W, wedge base

1шт.

17

1500485C2

TACHOMETER

1шт.

18

529233R1

LAMP

- 12V/3W, wedge type, capless

1шт.

19

1970911C1

FLEXIBLE DRIVE SHAFT

CABLE - tachometer

1шт.
