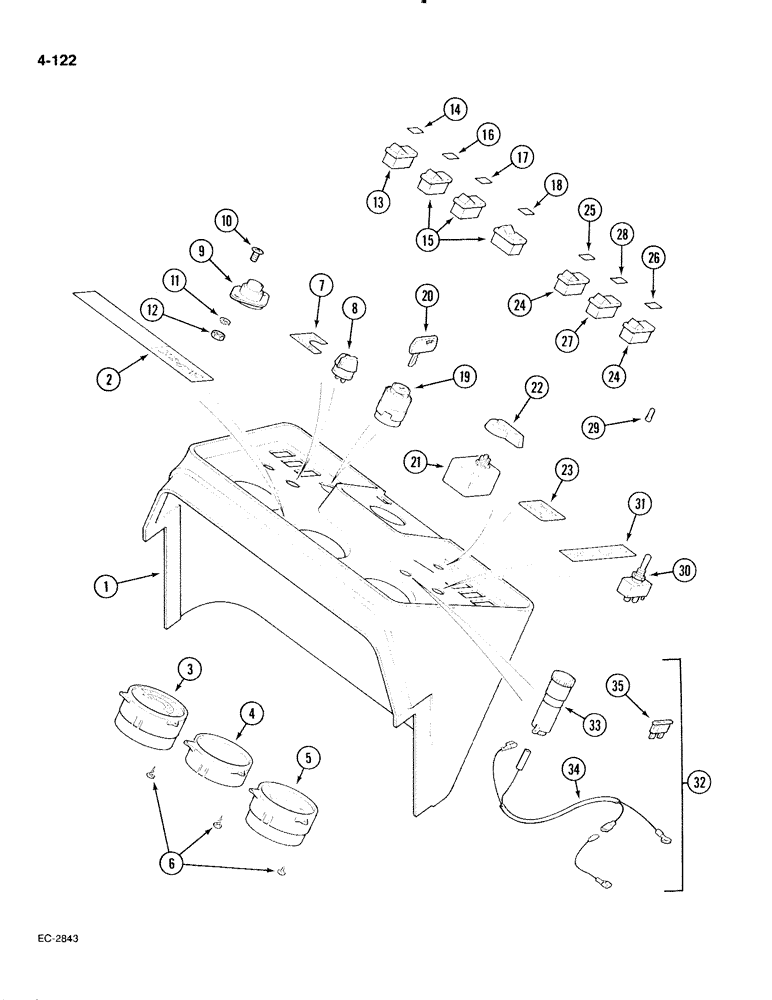

Запчасти Case IH 885 (4-122) - INSTRUMENTS AND SWITCHES, CAB (04) - ELECTRICAL SYSTEMS

1

1330755C1

PANEL

- instrument rear, See Figure 9-446, Includes: Ref. 2

1шт.

2

321-6770

DECAL

- warning, PTO overspeed, English

1шт.

3

107444C2

CLUSTER

- gauges and warning lights, See Figure 4-124

1шт.

4

NSS

NOT SOLD SEPARAT

MODULE - deco plat3, See Figure 4-124

1шт.

5

1500485C2

TACHOMETER

- See Figure 4-124

1шт.

6

905363R1

SELF-TAP SCREW,Pan Hd, M3.5 x 13

SCREW - round, cross recess, 3.5 x 13 mm

9шт.

7

1265116C1

PRODUCT GRAPHIC

DECAL - light switch, English, See Figure 9-552

1шт.

8

107200C2

LIGHT SWITCH

SWITCH - rotary, lights

1шт.

9

397940R93

SWITCH

- push button, horn

1шт.

10

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan, cross recess, No. 10 x 3/8 inch

2шт.

11

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER - lock, external tooth, No. 10

2шт.

12

26303R1

HARDWARE,#10-24

NUT - hex, No. 10

2шт.

13

91855C1

SWITCH

- headlight dip

1шт.

14

91856C1

SYMBOLS

DECAL - symbol, high beam, blue

1шт.

15

245909C1

SWITCH ASSY

SWITCH - rocker

3шт.

16

245913C1

DECAL

DECAL - symbol, rear worklight, green

1шт.

17

245912C1

LENS,GREEN

DECAL - symbol, front worklight, green

1шт.

18

82525C1

DECAL

DECAL - symbol, 4WD switch, green

1шт.

19

3399520R1

IGNITION SWITCH

SWITCH ignition, with key, Includes: Ref. 20

1шт.

19

A187613

IGNITION SWITCH

SWITCH ignition, optional, used with digital dash, A77313 key only

1шт.

20

107392C1

KEY

- ignition switch

1шт.

21

131066C91

SWITCH

- turn signal and flasher, Includes: Ref. 22

1шт.

22

71485C1

PACKAGE

KIT - switch handle and hardware

1шт.

23

98099C1

DECAL

- turn signal, See Figure 9-552

1шт.

24

245911C1

TOGGLE SWITCH

SWITCH - rocker

2шт.

25

1328477C1

LENS

DECAL - symbol, rear window wipe/wash, green

1шт.

26

245915C1

DECAL

DECAL - symbol, windshield wiper and washer

1шт.

27

3231782R1

SWITCH

- rocker

1шт.

28

91857C1

SYMBOLS

DECAL - symbol, ether start switch, yellow

1шт.

29

3141107R1

BULB,W5/1.2, 12V, 1.2W

Rocker switch illumination W5/1.2, 12V, 1.2W

1шт.

30

91858C1

TOGGLE SWITCH

SWITCH - toggle, 2 speed power shift, See Figure 4-128

1шт.

31

98098C1

DECAL

- 2 speed power shift, See Figure 9-554

1шт.

32

81465C91

KIT

- cigar lighter parts, Includes: Ref. 33 - 35

1шт.

33

3121407R92

LIGHTER, CIGARETTE

LIGHTER - cigar

1шт.

34

91896C1

HARNESS

- cigar lighter

1шт.

35

A149800

FUSE,10 Amp

- auto type, 10 amp, red

1шт.

1536858C1

HARNESS wire, for instrument panel

1шт.

1536001C3

HARNESS

wire, modified Dip switch

1шт.
