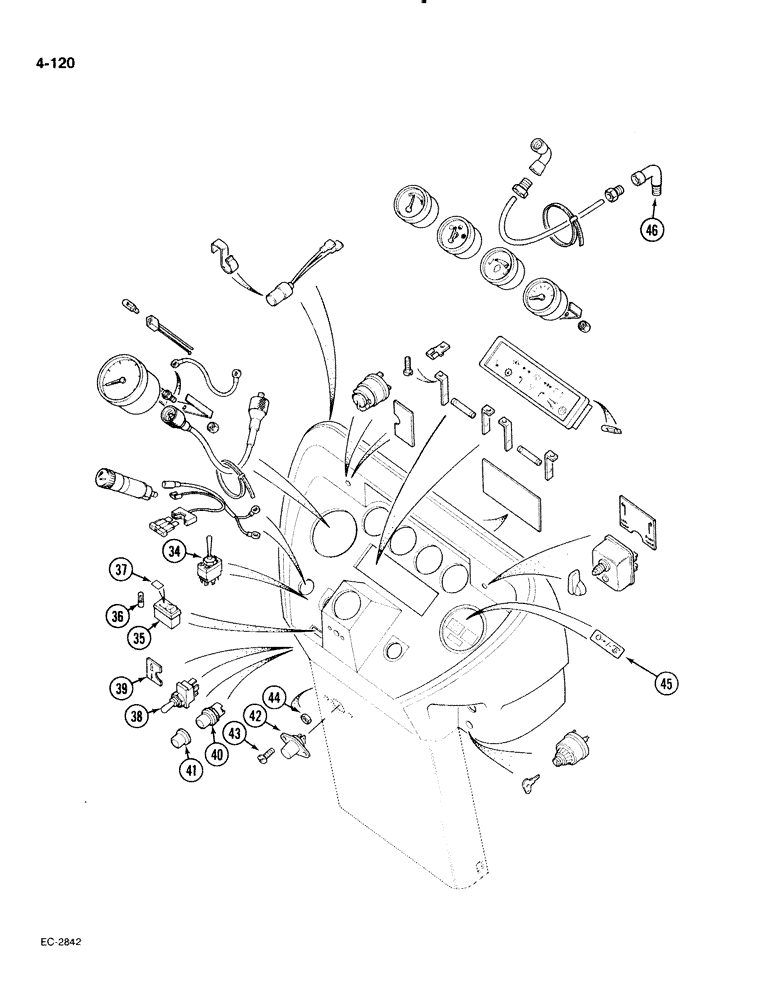

Запчасти Case IH 885 (4-120) - INSTRUMENTS AND SWITCHES, WITHOUT CAB (CONTD) (04) - ELECTRICAL SYSTEMS

34

91858C1

TOGGLE SWITCH

SWITCH - toggle, 2 speed power shift, See Figure 4-128

1шт.

34

1536154C1

TOGGLE SWITCH

SWITCH, 2 speed power shift, Replaces: 91858C1

1шт.

1536155C1

WASHER

1шт.

1536156C1

COVER

KNOB toggle switch

1шт.

35

245909C1

SWITCH ASSY

SWITCH - rocker, 4 wheel drive, Includes: Ref. 36

1шт.

36

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

37

82525C1

DECAL

DECAL - symbol, 4WD switch, green

1шт.

38

3125854R1

SWITCH

- headlight dip

1шт.

38

3121406R1

SWITCH

- headlight dip, Serial Range: optional-3125854R1

1шт.

3112888R1

PLUG

blanking

1шт.

1536001C3

HARNESS

ASSEMBLY instrumant panel

1шт.

39

1273644C1

DECAL

DECAL - headlight dip

1шт.

40

705266R1

SWITCH

- horn

1шт.

41

1288026C1

COVER

- horn switch

1шт.

42

397940R93

SWITCH

- push button, ether start

1шт.

43

436730

LOCK SCREW,Slotted Pan Hd, #10-24 x 3/8"

SCREW - pan slotted, No. 10 x 3/8 inch

2шт.

44

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

45

1093099R1

PRODUCT GRAPHIC

DECAL - IPTO speed chart, dual speed

1шт.

45

1093098R1

PRODUCT GRAPHIC

DECAL - IPTO speed chart, single speed

1шт.

46

36637D

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

1шт.
