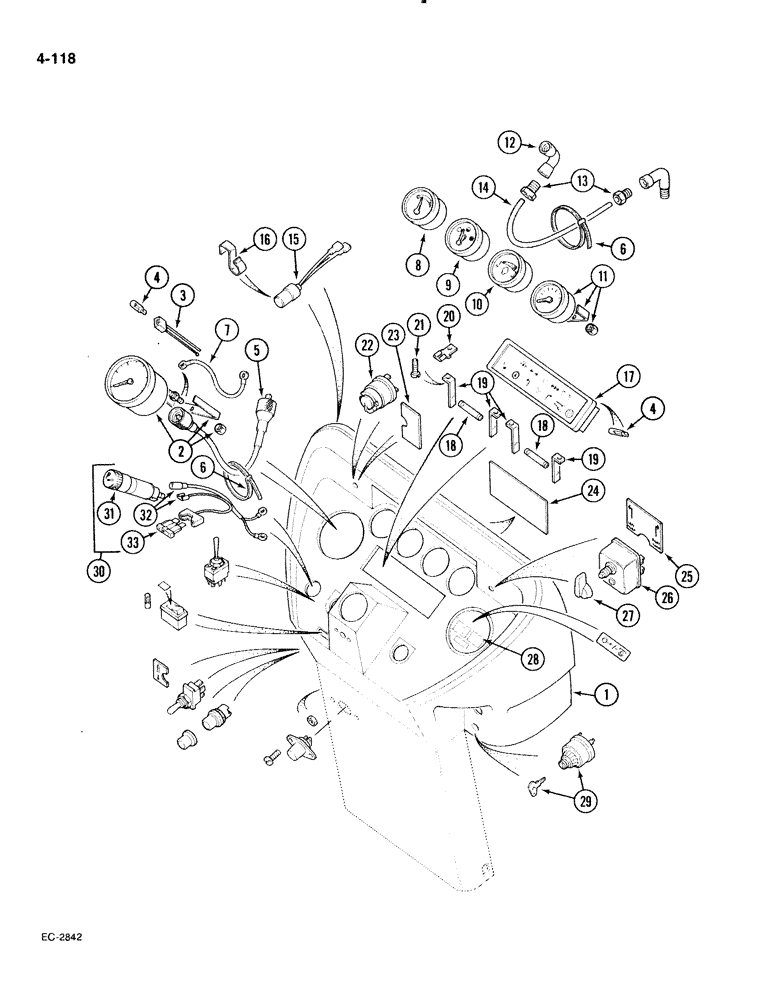

Запчасти Case IH 885 (4-118) - INSTRUMENTS AND SWITCHES, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

1500974C3

PANEL, INSTRUMENTS

HOUSING - instrument panel, without oil pressure gauge and ammeter, See Figure 9-444

1шт.

1

1332884C1

PANEL, INSTRUMENTS

HOUSING - instrument panel, with oil pressure gauge and ammeter, See Figure 9-444

1шт.

2

3125106R92

TACHOMETER

1шт.

3

3123661R1

HOLDER

- lamp, wedge, 10 mm

1шт.

4

529233R1

LAMP

- 12V/3W, wedge type, capless

7шт.

5

529234R1

CABLE,1480.32mm L

CABLE tractormeter drive

1шт.

5

153664C1

CABLE new cluster tach

1шт.

6

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle

4шт.

7

3123431R1

CABLE

- tachometer to fuel gauge ground

1шт.

8

1332882C1

AMMETER

GAUGE - ammeter, Icknield

1шт.

1537041C1

VOLTMETER

new, optional

1шт.

1537111C1

HARNESS

wire, for voltmeter

1шт.

9

3121239R1

FUEL GAUGE

GAUGE - fuel, AC Delco, use with sending unit 529790R1

1шт.

9

3129840R1

FUEL GAUGE

GAUGE - fuel, Icknield, use with sending unit 3129841R91

1шт.

10

3121240R1

ELECTRICAL GAUGE

GAUGE - water temperature, AC Delco, use with sending unit 3073787R91

1шт.

10

3127959R2

GAUGE

- water temperature, Icknield, use with sending unit 3127956R1

1шт.

11

1332883C1

OIL PRESSURE GAUGE

GAUGE - oil pressure, Icknield

1шт.

12

19717R1

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

- 90 degree male, No. 89-LB

1шт.

13

222-500

TUBE NUT,5/16" - 24 NPT

NUT - tube, No. 81-LB

2шт.

14

1332949C1

TUBE,0.096" ID, 0.125" OD

- oil pressure gauge

1шт.

15

3125984R1

FLASHER UNIT

UNIT - flasher, park brake warning

1шт.

16

539015R1

CLIP

- edge, 0.75 max diameter, park brake warning flasher

1шт.

17

1502006C2

HOUSING

HOLDER - warning light Lamp

1шт.

18

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

2шт.

19

3121705R1

CONTACT HOUSING

- Lamp

4шт.

20

3121703R1

TERMINAL CONNECTOR

TERMINAL - 1/4 inch blade

4шт.

21

3121704R1

SCREW

- slotted, No. 4 x 5/16 inch, stainless steel

4шт.

22

107200C2

LIGHT SWITCH

SWITCH - rotary, basic lighting

1шт.

23

1265116C1

PRODUCT GRAPHIC

DECAL - light switch, English, See Figure 9-552

1шт.

24

3125816R1

LENS

- green, translucent

1шт.

25

1265117C1

PRODUCT GRAPHIC

DECAL - turn signal, English, See Figure 9-552

1шт.

26

131066C91

SWITCH

- turn signal and flasher, Includes: Ref. 27

1шт.

27

71485C1

PACKAGE

KIT - switch handle and hardware

1шт.

28

1093095R1

DECAL

- speed chart, mph, flange type rear axle, See Figure 9-554

1шт.

28

1288014C1

DECAL

- speed chart, mph, bar type rear axle, See Figure 9-554

1шт.

29

529800R91

SWITCH ASSY

SWITCH - ignition, with key; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

30

81465C91

KIT

- cigar lighter parts, Includes: Ref. 31 thru 33

1шт.

31

3121407R92

LIGHTER, CIGARETTE

LIGHTER - cigar, if fitted

1шт.

32

92090C1

HARNESS

CABLE - cigar lighter

1шт.

33

A149800

FUSE,10 Amp

- auto type, 10 amp, red

1шт.

3072070R91

FLASHER SWITCH

SWITCH flasher and turn signal, heavy duty

1шт.

92389C2

FLASHER UNIT

FLASHER turn signal, heavy duty, has 7 prongs

1шт.
