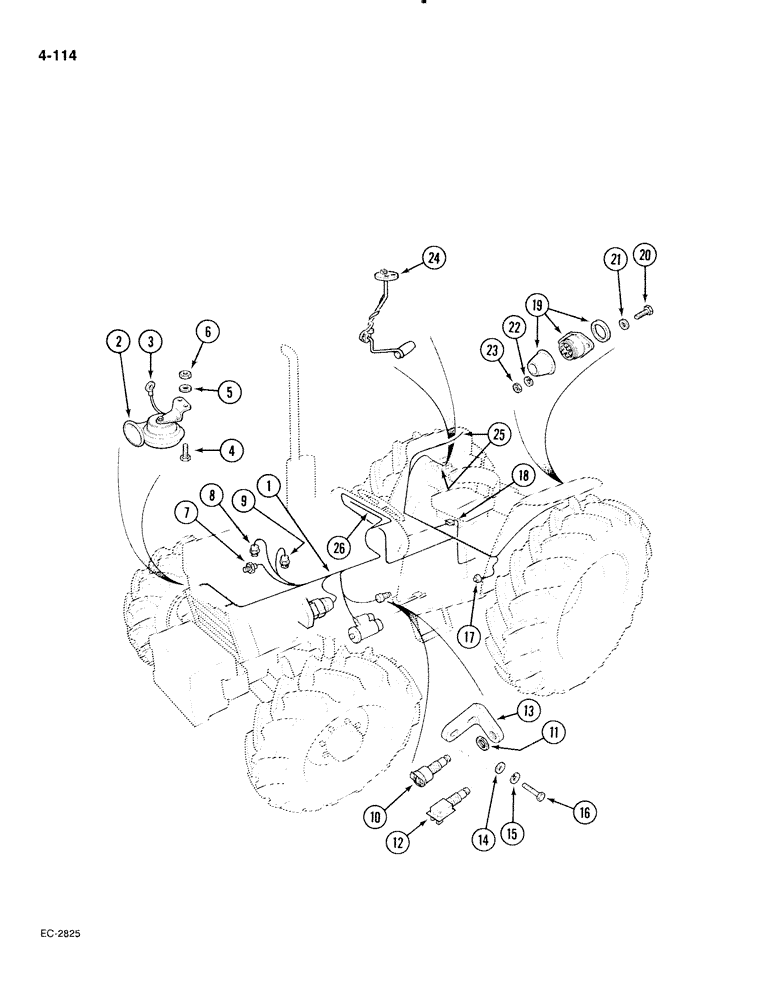

Запчасти Case IH 885 (4-114) - CHASSIS WIRING AND SWITCHES, WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

1500563C95

HARNESS

- main, without oil pressure gauge and ammeter

1шт.

1

1332880C1

HARNESS

- main, with oil pressure gauge and ammeter

1шт.

2

3121205R91

HORN

1шт.

2

1536615C1

HORN new

1шт.

3

3117533R1

CABLE

-, Serial Range: horn-earth

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

120392

WASHER,1/4", SAE

- plain, 0.281 x 0.625 x 0.051 inch

2шт.

6

3119440R1

LOCK NUT

- self-locking, 1/4 inch NC

2шт.

7

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator, See Figure 2-024

1шт.

8

3073787R91

TRANSMITTER

- water temperature, AC Delco, used with AC Delco gauge 3121240R1

1шт.

8

3127956R1

TEMPERATURE SENDER

TRANSMITTER - water temperature, Icknield, used with Icknield gauge 3127959R1

1шт.

9

91450C1

SWITCH, PRESSURE

SWITCH - engine oil pressure, on oil filter base

1шт.

10

121629C2

SWITCH

- neutral starting, without 2SPS, use mounting bracket 1500214C1, Includes: Ref. 11

1шт.

11

3112570R1

NUT

NUT - hex, M16

1шт.

12

1964885C2

SWITCH

- plunger, fine thread, 2SPS neutral starting, se mounting bracket 1500214C1

1шт.

12

83907C2

SWITCH

- plunger, coarse thread, 2SPS neutral starting, use mounting bracket 1331148C1

1шт.

13

1500214C1

BRACKET

- with 5/8-32 inch fine thread hole, use with switches 121629C2 and 1964885C2

1шт.

13

1331148C1

BRACKET

- with M16 x 2.0 mm coarse thread hole, use with switch 83907C2

1шт.

14

95-11041

WASHER,3/8"

flat (0.406 x 0.812 x 0.051") 3/8"

2шт.

15

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, grade 5

2шт.

17

92161C2

PARK BRAKE SWITCH

SWITCH - plunger, park brake warning

1шт.

18

82634C1

CABLE

- 4 wheel drive solenoid, See Figure 4-130

1шт.

4WD solenoid is 81171C1, See Figure 6-304, Ref. 5

1шт.

19

84117C1

SOCKET/RECEPTACLE

SOCKET - 7 pin, with boot, Serial Range: -18001

1шт.

Mating part for this socket is 121646C

1шт.

19

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - 7 Pin, Start Serial: 18001

1шт.

Mating part for this socket is 121646C

1шт.

20

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch, grade 5

2шт.

21

120393

BEARING WASHER,5/16", SAE

WASHER - flat, 0.344 x 0.688 x 0.051 inch

2шт.

22

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

19296R1

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

529790R1

SENDER UNIT

TRANSMITTER - fuel gauge, AC Delco, See Figure 3-096

1шт.

Did not change with the new Instrument cluster

1шт.

24

3129841R91

FUEL GAUGE

TRANSMITTER - fuel gauge, Icknield, See Figure 3-096

1шт.

Did not change with the new Instrument cluster

1шт.

25

3123678R2

HARNESS

- fender, right, crown top fenders

1шт.

25

3123680R3

HARNESS

- fender, right, flat top fenders

1шт.

26

1500963C1

HARNESS

- instrument panel

1шт.

3405561R1

INTERIOR LIGHT

LIGHT dome, before September 1989

1шт.

710196R1

BULB,C5W, 12V, 5W

Before September 1989 C11, 12Vm 5W

1шт.

K303720

INTERIOR LIGHT

LIGHT dome, after September 1989

1шт.

3050958R1

BULB,K, 12V, 10W

after September 1989 K, 12V, 10W

1шт.
