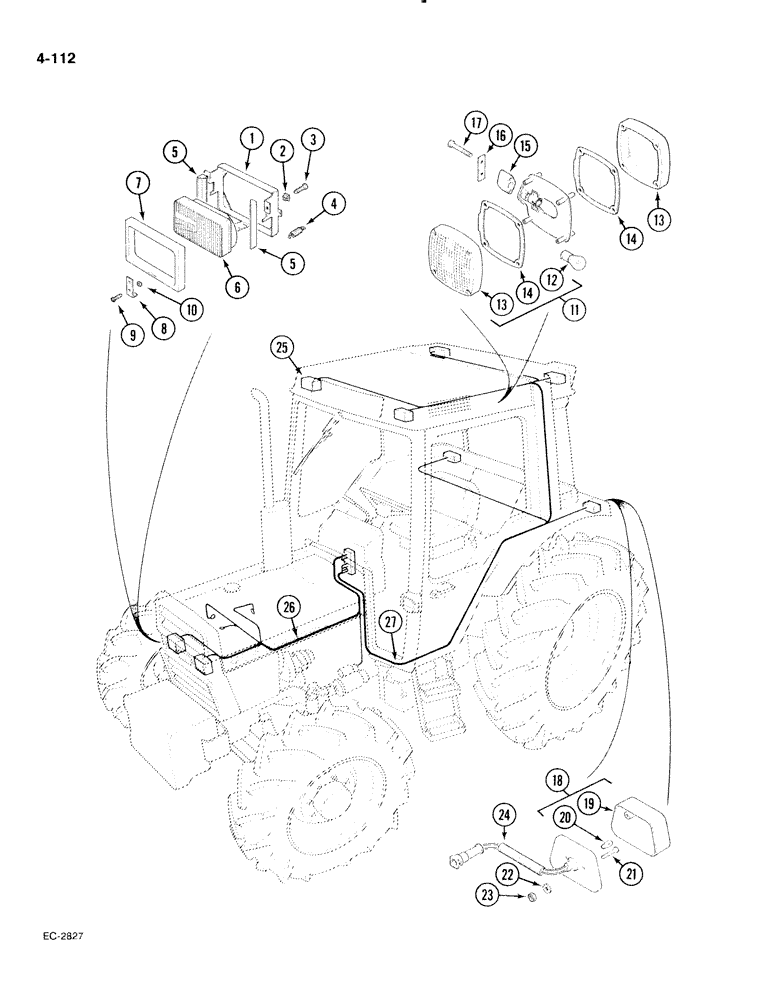

Запчасти Case IH 885 (4-112) - LIGHTING AND CONNECTIONS, WITH CAB (04) - ELECTRICAL SYSTEMS

1

K304824

SUPPORT

HOUSING - headlight

2шт.

2

K603641

SCREW

- adjusting

4шт.

3

K617503

NUT

- nylon

4шт.

4

K658240

SPRING

- Lamp retaining

4шт.

5

K304832

MOLDING

- rubber

4шт.

6

A139458

LAMP

- head, vertical low, Replaces: K300280

2шт.

7

K304831

RUBBER INSULATOR

SHROUD - headlight, Serial Range: -18001

2шт.

7

99791C2

GUARD

SHROUD - headlight, Start Serial: 18001

2шт.

8

94353C1

BRACKET

- spring

4шт.

9

99997C1

SELF-TAP SCREW,Cross Pan Hd, #10-24 x 3/4"

SCREW - pan, No. 10 x 3/4 inch, Polyseal

4шт.

10

26303R1

HARDWARE,#10-24

NUT - hex, No. 10

4шт.

11

91887C91

LIGHT ASSY.

LIGHT - warning, double face, complete, Includes: Ref. 12 - 14

2шт.

12

A41264

BULB,#1156, 12V

32CP

2шт.

13

F63434

LENS

- amber

2шт.

14

A43731

GASKET

- lens

2шт.

15

98005C1

SPACER

- warning light, left

1шт.

15

98006C1

SPACER

- warning light, right

1шт.

16

1330757C1

PLATE

- light mounting

2шт.

17

180042

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

BOLT - hex, 1/4 NC x 1-3/4 inch, grade 5

4шт.

18

91805C91

LAMP

LIGHT - tail, complete, Includes: Ref. 19 and 20

2шт.

19

91929C1

LENS

- red, tail

1шт.

20

26617R1

BULB,C2F, #168, 14V

LAMP - type C-2F, trade No. 168

1шт.

21

31108R1

SCREW,Cross Pan Hd, M5 x 30

- pan, cross recess, M5 x 30 mm, class 4.8

4шт.

22

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER - lock, external tooth, 5 mm

4шт.

23

934871R1

NUT,M5, Cl 5

- hex, 5 mm, class 5

4шт.

24

91860C3

HARNESS

- tail light

2шт.

25

1328615C1

LAMP, WORK

LIGHT - working spot, See Figure 4-132

4шт.

26

92109C2

HARNESS

- front, 25A in-line fuse, Serial Range: -22025

1шт.

26

92348C1

HARNESS

- front, 30A circuit breaker, Start Serial: 22025

1шт.

27

245662C5

HARNESS

- cab, Serial Range: -22025

1шт.

27

1328852C2

HARNESS

- cab, Start Serial: 22025

1шт.

3405561R1

INTERIOR LIGHT

LIGHT dome, before September 1989

1шт.

710196R1

BULB,C5W, 12V, 5W

Before September 1989

1шт.

K303720

INTERIOR LIGHT

LIGHT dome, after September 1989

1шт.

3050958R1

BULB,K, 12V, 10W

after September 1989

1шт.
