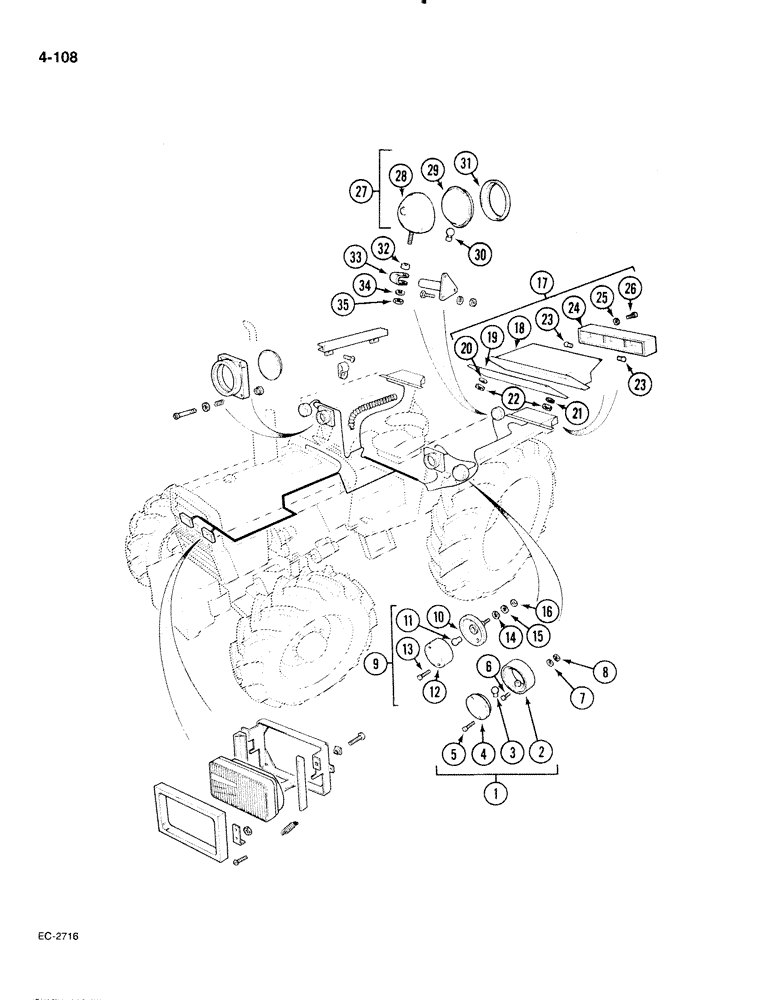

Запчасти Case IH 885 (4-108) - LIGHTING AND CONNECTIONS, WITHOUT CAB, FLAT TOP FENDERS (04) - ELECTRICAL SYSTEMS

1

3123883R91

LIGHT

- front flasher, amber, KD Lamp Co., Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - front flasher

1шт.

3

3025210R91

BULB

LAMP - 12V/21W SCC

1шт.

4

3125166R1

LENS

- amber

1шт.

5

3125167R1

SCREW

- lens mounting

2шт.

6

598794R1

CARRIAGE BOLT,1/4" - 20 x 1/2", Grade 5

BOLT - carriage, 1/4 NC x 1/2 inch, grade 5

4шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

9

3129500R91

INDICATOR LIGHT

LIGHT - front flasher, amber, PMG Thorpe, optional to 3123883R91, Includes: Ref. 10 - 13

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - front flasher

1шт.

11

3025210R91

BULB

LAMP - 12V/21W SCC

1шт.

12

3129540R1

LENS

- amber

1шт.

13

3129541R1

SCREW

- steel, M4 x 45 mm

2шт.

14

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

4шт.

15

933833R1

LOCK WASHER,M6

WASHER - lock, 6 mm

4шт.

16

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

4шт.

17

3123872R91

INDICATOR LIGHT

LIGHT - rear flasher, left , Includes: Ref. 18 - 26

1шт.

17

3123873R91

INDICATOR LIGHT

LIGHT - rear flasher, right, Includes: Ref. 18 - 26

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - flasher light

1шт.

19

3125154R1

CUSHION

- rubber mounting, left light

1шт.

19

3125155R1

CUSHION

- rubber mounting, right light

1шт.

20

3125157R1

WASHER

- clinch bolt

2шт.

21

121801

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

22

3125158R1

NUT

- clinch bolt, Nyloc

3шт.

23

3025210R91

BULB

LAMP - 12V/21W SCC

2шт.

24

3125161R1

LENS

- amber, and reflector

1шт.

25

3112786R1

WASHER

- lens screw

2шт.

26

3125156R1

SCREW

- M4 x 45 mm, lens mounting

2шт.

27

387729R92

LIGHT ASSY.

LIGHT - combination, rear and tail, Includes: Ref. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - combination light

1шт.

29

80627C1

LIGHT ASSY.

LIGHT - with bulb, Includes: Ref. 30

1шт.

30

NLS

NO LONGER SERVICED

LAMP - type C-6, trade No. 1141

1шт.

31

676078R1

RETAINER

- light, shockproof

1шт.

32

365503R1

SPACER

- combination light

1шт.

33

350920R1

CLAMP

- combination light

1шт.

34

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

35

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.
