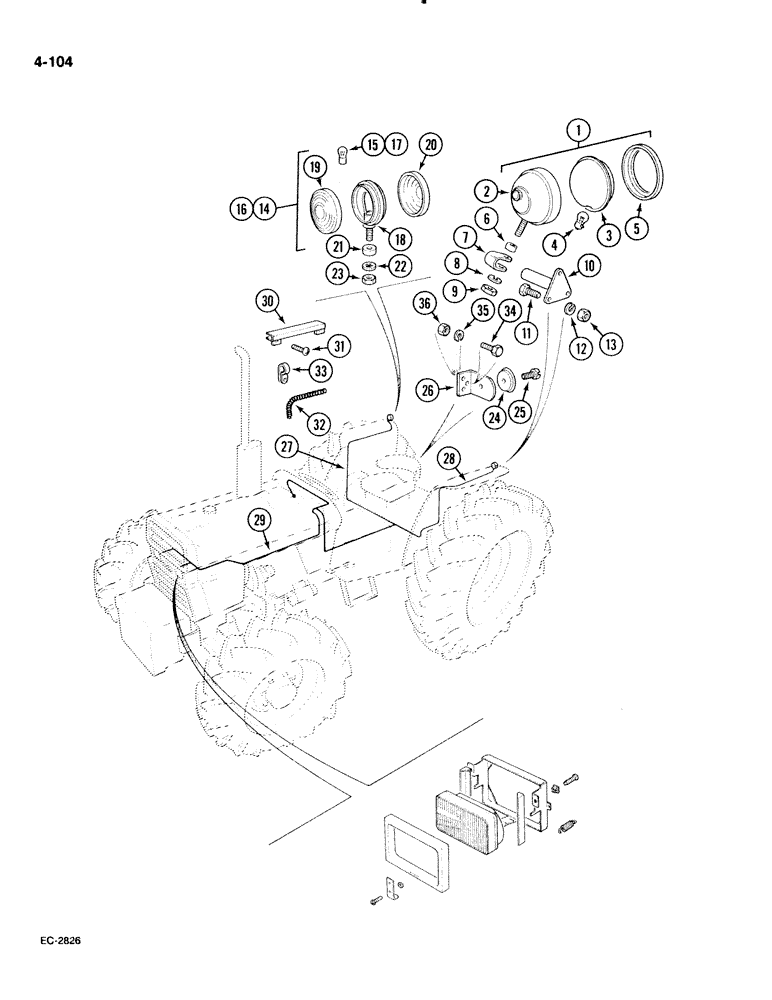

Запчасти Case IH 885 (4-104) - LIGHTING AND CONNECTIONS, WITHOUT CAB, CROWN TOP FENDERS (04) - ELECTRICAL SYSTEMS

1

387729R92

LIGHT ASSY.

LIGHT - combination, rear and tail, Includes: Ref. 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - combination light

1шт.

3

80627C1

LIGHT ASSY.

LIGHT - with bulb, Includes: Ref. 4

1шт.

4

142456

BULB

LAMP - type C-6, trade No. 1141

1шт.

5

676078R1

RETAINER

- light, shockproof

1шт.

6

365503R1

SPACER

- combination light

1шт.

7

350920R1

CLAMP

- combination light

1шт.

8

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

9

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

10

401471R1

POST

- combination light

1шт.

11

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch, grade 5

3шт.

12

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

13

120377

NUT,3/8" - 16, Gr 5

3шт.

14

67538C92

HEADLIGHT

LIGHT - flasher, Includes: Ref. 15

2шт.

15

9417866

BULB,C6, #1156, 12.8V

LAMP

1шт.

16

3123675R93

HEADLIGHT

LIGHT - flasher, optional to 67538C92, Includes: Ref. 17 - 23

2шт.

17

3025210R91

BULB

LAMP - 12V/21W SCC

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - flasher light

1шт.

19

3112682R1

LENS

- amber, rear

1шт.

20

3112683R1

LENS

- amber, front

1шт.

21

899282R1

O-RING

RING - rubber sealing

2шт.

22

131718

SHIM

- lock, internal tooth, 7/16 inch

1шт.

23

272128

ROD

NUT - hex, 7/16 inch NF

1шт.

24

3118665R1

REFLECTOR

- red

2шт.

25

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

- tapping, pan cross recess, No. 10 x 1/2 inch

2шт.

26

3125247R2

BRACKET

reflector

2шт.

26

1537078C1

BRACKET

reflector

2шт.

1537075C1

RIVET

1шт.

27

3123678R2

HARNESS

- fender, right

1шт.

28

3123677R1

HARNESS

- fender, left

1шт.

29

1500563C95

HARNESS

main, without oil pressure gauge and ammeter

1шт.

29

1332880C1

HARNESS

main, with oil pressure gauge and ammeter

1шт.

29

1537028C1

HARNESS

1шт.

30

3123182R2

CABLE SHEATH

CONDUIT - fender, right, without ROPS

1шт.

30

3123179R1

CABLE SHEATH

CONDUIT - fender, left, with ROPS

1шт.

31

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

4шт.

32

1280346C2

CONDUIT

CHANNEL - convolute conduit, with ROPS

1шт.

33

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - harness, with ROPS

6шт.

34

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, grade 5, ZND

2шт.

35

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

36

120376

NUT,5/16"-18, G5

2шт.
