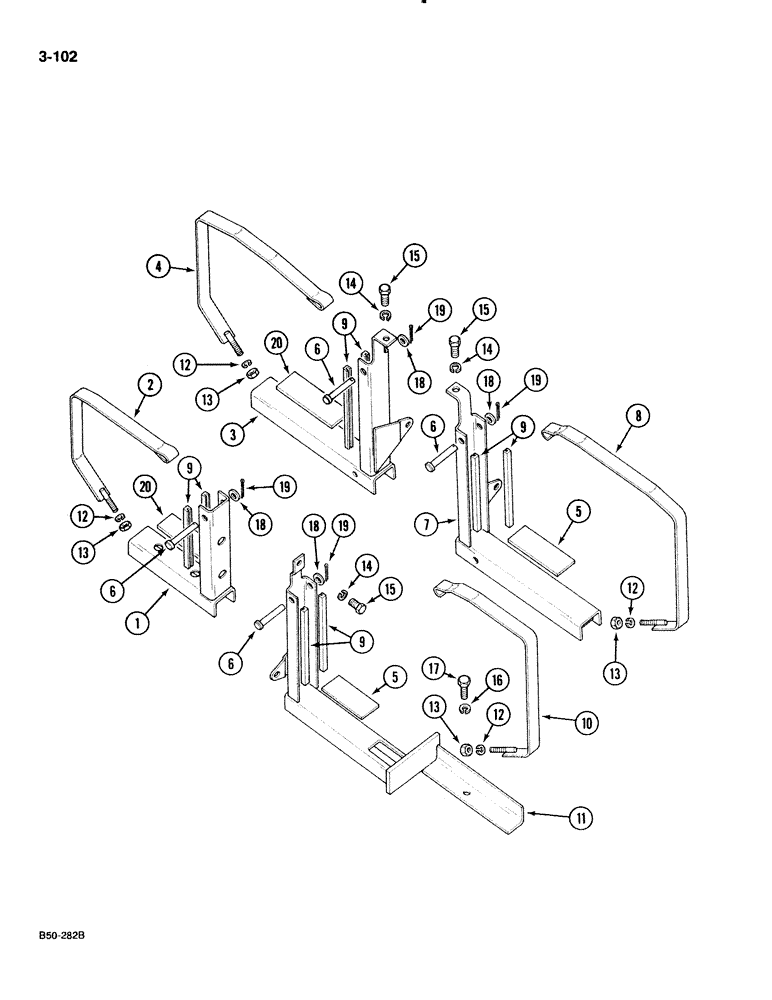

Запчасти Case IH 885 (3-102) - FUEL TANK MOUNTINGS (03) - FUEL SYSTEM

1

1500265C2

SUPPORT ASSY.

SUPPORT - front right

1шт.

2

1500275C1

STRAP

- complete

1шт.

3

1500268C2

SUPPORT ASSY.

SUPPORT - rear right

1шт.

4

1500281C1

STRAP

- complete

1шт.

5

NSS

NOT SOLD SEPARAT

STRIP - rubber, left, cut from 1500482C1

2шт.

5

1500482C1

STRIP

- rubber, bulk length, 100 foot

1шт.

6

1500270C1

HEADED PIN

PIN - headed

4шт.

7

1500262C2

SUPPORT ASSY.

SUPPORT - rear left

1шт.

8

1500278C1

STRAP

- complete

1шт.

9

1502167C1

CHANNEL

STRIP - edging

8шт.

10

1500271C1

STRAP

- complete

1шт.

11

82941C1

CHANNEL

SUPPORT - fuel tank and battery box

1шт.

12

934309R1

LOCK WASHER,M8

WASHER - lock, M8

4шт.

13

30167R1

NUT,M8, Cl 10

- hex, 8 mm, class 10

4шт.

14

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

15

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch, grade 5

3шт.

16

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

17

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

18

933587R1

WASHER,M12 x 24 x 2.5

- flat, 13 mm

4шт.

19

934792R1

COTTER PIN,M3.2 x 20

PIN - cotter, 3.2 x 20 mm

4шт.

20

NSS

NOT SOLD SEPARAT

STRIP - rubber, right, cut from 1500482C1

2шт.

20

1500482C1

STRIP

- rubber, bulk length, 100 foot

1шт.
