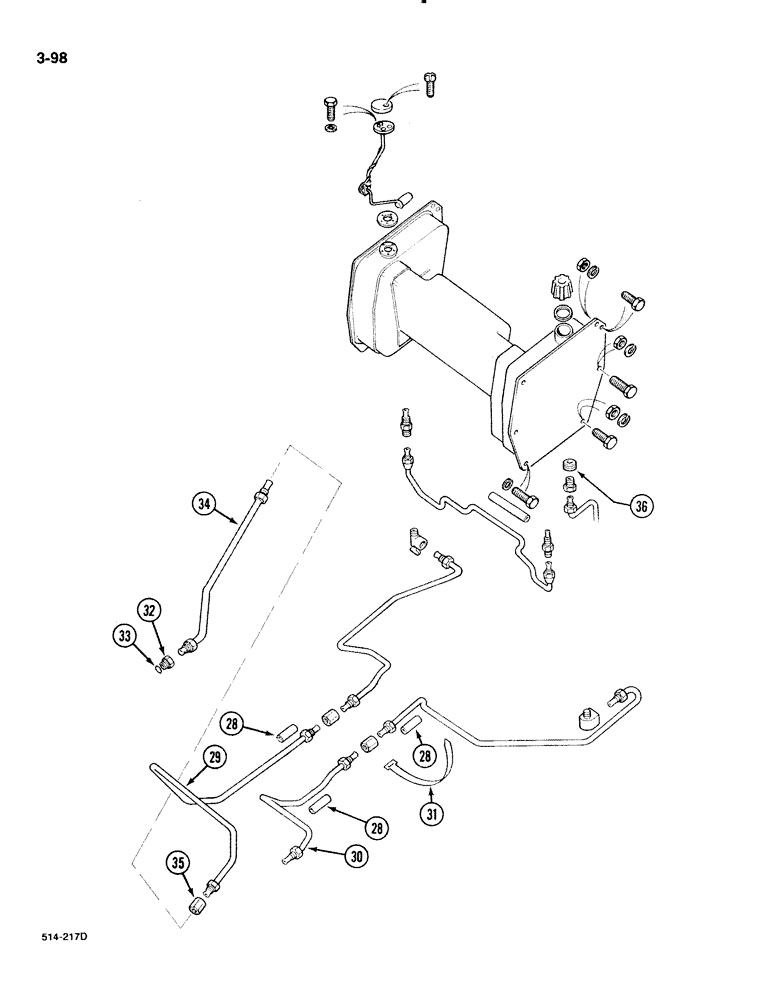

Запчасти Case IH 885 (3-098) - FUEL TANK AND PIPING, WITHOUT CAB (CONTD) (03) - FUEL SYSTEM

28

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

3шт.

29

3125866R1

PIPE ASSY.,7.92 mm OD, 1020, 119 mm Length

PIPE - union to filter, Serial Range: -18001

1шт.

29

99837C1

PIPE

TUBE connector, union to fuel filter, Start Serial: 18001

1шт.

29

1536103C1

PIPE,8 mm OD, 2200, 42 mm Length

TUBE plastic

1шт.

30

3112790R1

PIPE

- fuel return, front

1шт.

31

289862C1

CABLE TIE,3/16" x 7"

STRAP - cable, 1.75 max bundle

3шт.

32

3056600R1

ADAPTER

ADAPTOR - filter, Start Serial: 18001

1шт.

33

933610R1

SEALING RING,M14 x 18 x 1.8

, Start Serial: 18001

1шт.

34

99838C1

PIPE

TUBE union to fuel filter, Start Serial: 18001

1шт.

34

1536098C1

FUEL HOSE,8 mm OD, 2340, 40 mm Length

TUBE plastic

1шт.

35

442337

NUT

UNION - 5/16 inch OD tube, Start Serial: 18001

1шт.

35

442395

FITTING

UNION - 5/16 inch OD tube, Serial Range: optional-442337

1шт.

36

538393R1

FILLER CAP

PLUG - hex socket, 1/8 inch NPTF

1шт.

Used with vertical exhaust

1шт.
