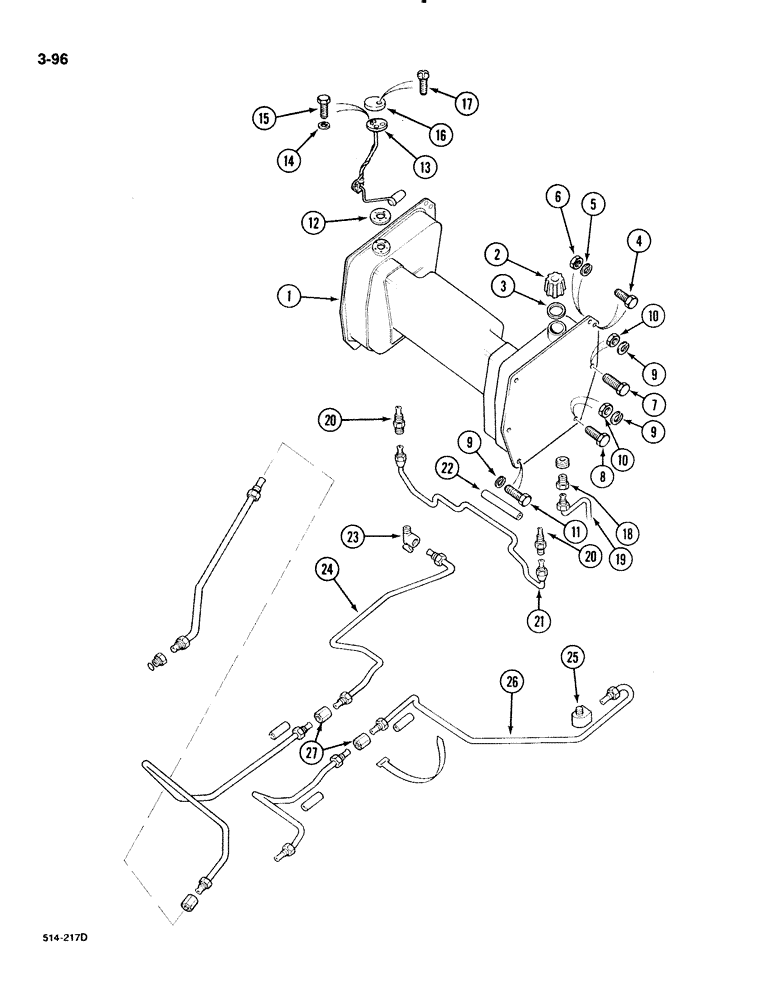

Запчасти Case IH 885 (3-096) - FUEL TANK AND PIPING, WITHOUT CAB (03) - FUEL SYSTEM

1

536035R93

FUEL TANK

TANK - fuel, with filler cap, Includes: Ref. 2 - 3

1шт.

2

536845R1

PLUG

CAP - fuel tank filler

1шт.

2

538063R1

PLUG

CAP - filler, Serial Range: optional-536845R1

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

- fuel tank filler cap

1шт.

4

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 5/8 inch, grade 5

4шт.

5

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

120377

NUT,3/8" - 16, Gr 5

4шт.

7

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, grade 5, ZND

2шт.

8

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch, grade 5

6шт.

9

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

10

120376

NUT,5/16"-18, G5

8шт.

11

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

- hex, 5/16 NC x 1 inch, grade 5

2шт.

12

528359R1

GASKET

- sending unit

1шт.

13

529790R1

SENDER UNIT

TRANSMITTER - fuel gauge, AC Delco, use with AC Delco gauge 3121239R1

1шт.

Did not change with the new Instrument cluster

1шт.

13

3129841R91

FUEL GAUGE

TRANSMITTER - fuel gauge, Icknield, use with Icknield gauge 3129840R1

1шт.

Did not change with the new Instrument cluster

1шт.

14

533199R1

SEALING WASHER

- sending unit cover

4шт.

14

796002R1

COPPER WASHER

WASHER - copper, sending unit cover

1шт.

15

443874

BRACKET

- hex, No. 10 x 1/2 inch

4шт.

15

451625

SCREW

- hex, No. 10 x 1/2 inch

1шт.

16

528360R2

COVER

- sending unit

1шт.

17

440-1106

SCREW,Cross Pan Hd, #10-24 x 3/8"

- pan, cross recess, No. 10 x 3/8 inch

1шт.

18

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

UNION - 1/2 inch NF x 1/8 inch NPTF, Serial Range: -18001

1шт.

Used with underslung exhaust

1шт.

19

539938R1

VENTILATION PIPE

TUBE - tank breather, Serial Range: -18001

1шт.

Used with underslung exhaust

1шт.

20

1502069C1

PIPE

- clearance

2шт.

21

1502067C2

PIPE,0.312" OD, 811.5, 96.5 mm Length

TUBE - crossover

1шт.

21

1333089C1

PIPE

TUBE - crossover, orchard tractor

1шт.

22

530107R1

FUEL HOSE,0.31" ID x 10.00"

Balance Tube Spacer 0.31" ID x 10.00"

1шт.

23

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

- shut-off

1шт.

24

3129561R1

PIPE,8 mm OD, 932.2, 259.1 mm Length

TUBE - union to shut-off valve

1шт.

25

137422

ELBOW

- 90 degree, rear fuel return tube

1шт.

26

3129262R2

PIPE

TUBE - fuel return, rear

1шт.

27

442337

NUT

UNION - 5/16 inch OD tube

2шт.

27

442395

FITTING

UNION - 5/16 inch OD tube, Serial Range: optional-442337

2шт.
