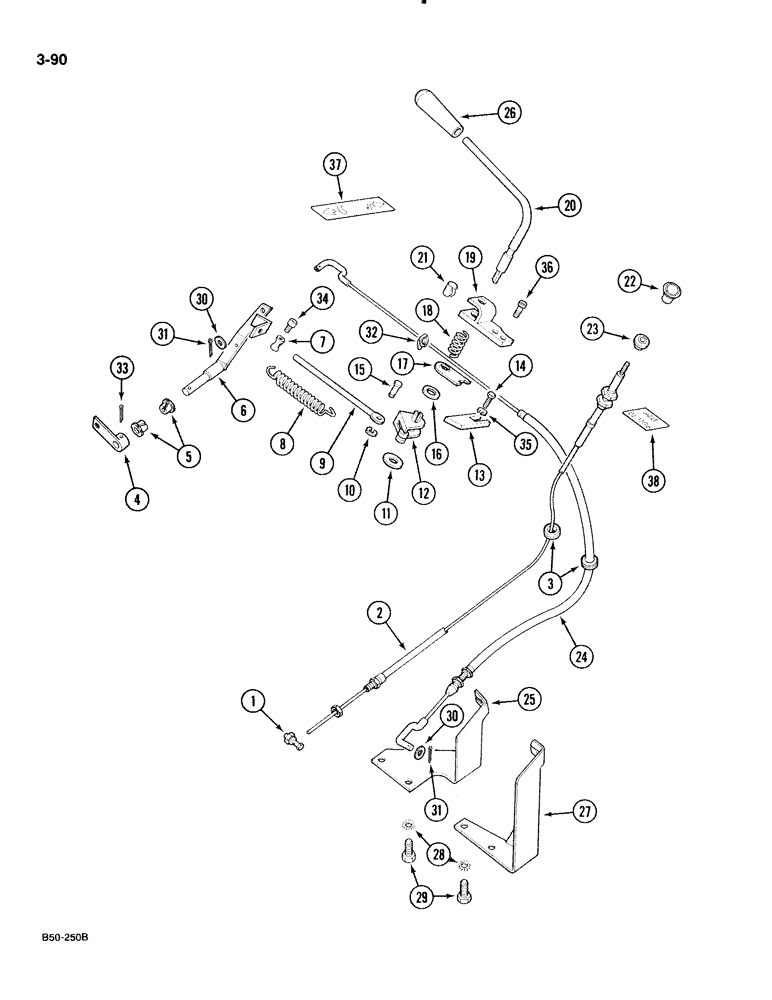

Запчасти Case IH 885 (3-090) - GOVERNOR AND FUEL SHUT OFF CONTROL (03) - FUEL SYSTEM

1

787190R1

COLLAR

PIVOT - fuel shut-off lever

1шт.

2

3234947R2

CABLE

- fuel shut-off control, VA injection pump

1шт.

2

1333179C1

CABLE

- fuel shut-off control, 1254 mm, VE injection pump

1шт.

3

117959

GROMMET,5/16" ID x .719" x .062"

- rubber, 5/16 x 23/32 x 5/16 inch

2шт.

4

3234928R1

ARM ASSY.

ARM - governor control

1шт.

5

3234944R1

BUSHING

- governor control lever

2шт.

6

3234940R4

LEVER ASSY.

LEVER - governor control

1шт.

7

3234925R3

BUSHING

COLLAR - stop

1шт.

8

1534651C1

RING ASSY.

SPRING - tension, Replaces: 3234916R1

1шт.

9

3234939R2

ROD

- governor control

1шт.

10

934030R1

CIRCLIP,M7

RING - retaining, external, 5.26 mm

1шт.

11

3229934R1

DISC

WASHER - friction, lower

1шт.

12

3229938R1

LEVER ASSY.

LEVER - governor control

1шт.

13

3234923R1

STOP

- adjustable

1шт.

14

717797R1

BOLT,Hex, M6 x 1 x 18mm, Cl 8.8, Full Thd

- hex, M6 x 18 mm, class 8.8

1шт.

15

3234920R1

PIN

- headed

1шт.

16

3229935R1

FRICTION WASHER

WASHER - friction, upper

1шт.

17

3234919R1

PLATE

- governor control

1шт.

18

3229932R1

SPRING

- compression

1шт.

19

3234926R1

SUPPORT ASSY.

SUPPORT - governor control handle

1шт.

20

3234942R1

ROD,10mm OD

ROD - handle, governor control

1шт.

21

3234968R1

SPRING CLIP

CLIP - governor control handle

1шт.

22

3221357R1

BUTTON

KNOB - fuel shut-off control

1шт.

23

3223919R1

CAP

GROMMET - instrument panel

1шт.

24

3401585R2

CABLE ASSY.

CABLE - hand throttle

1шт.

25

1500101C1

SUPPORT

BRACKET - governor control, VA injection pump

1шт.

26

3221355R1

KNOB

HANDLE - governor control

1шт.

27

1332947C1

SUPPORT

BRACKET - governor control, VE injection pump

1шт.

28

934491R1

LOCK WASHER,Ext Tooth, M10

WASHER - lock, external tooth, 10 mm

2шт.

29

931695R1

BOLT,Hex, M10 x 1.5 x 12mm, Cl 8.8, Full Thd

2шт.

30

934948R1

WASHER,M6

- flat, 6.4 x 12.5 x 1.6 mm

2шт.

31

934790R1

COTTER PIN,M3.2 x 16

PIN - cotter, 3.2 x 16 mm

2шт.

32

3221347R2

CIRCLIP

RING - retaining

1шт.

33

932196R1

LOCK PIN,M5 x 20, Slotted

PIN - spring slotted, 5 x 20 mm

1шт.

34

931381R1

HEX SOC SCREW,M5 x 8mm, Cl 8.8

- cap, hex socket, M5 x 8 mm, class 8.8

1шт.

35

934055R1

WASHER,M6.4

- lock, 6 mm

1шт.

36

934600R1

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

37

533592R1

PRODUCT GRAPHIC

DECAL - governor control

1шт.

38

1333014C1

DECAL

- fuel control, VE injection pump

1шт.

38

1135126R2

DECAL

- fuel control, VA injection pump

1шт.
