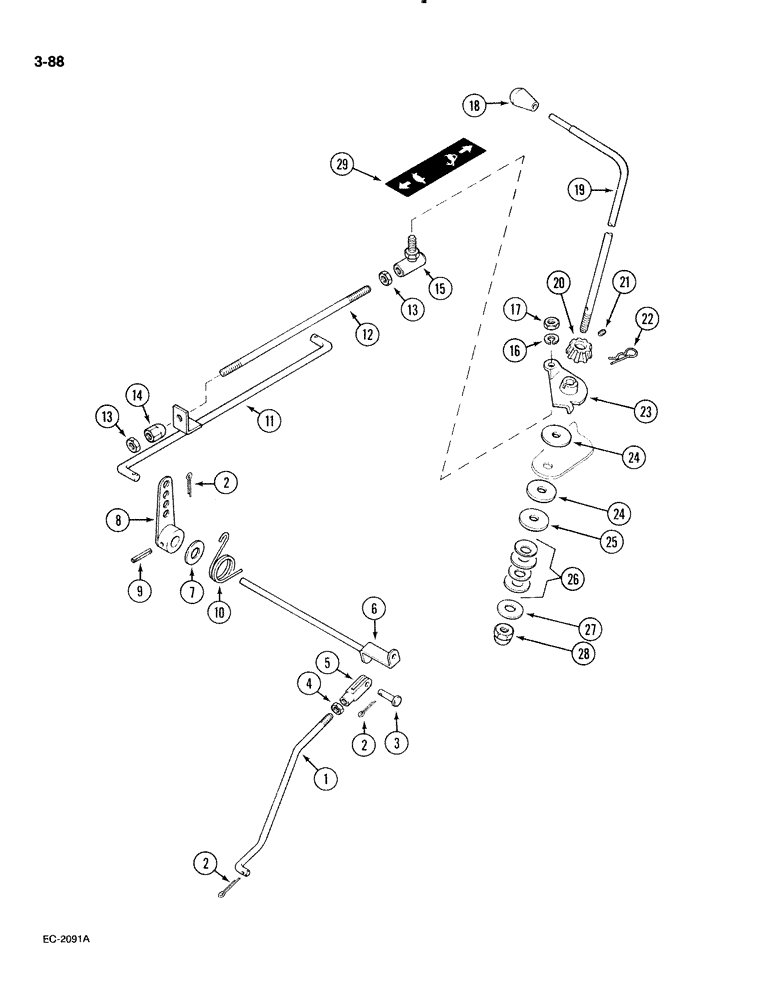

Запчасти Case IH 885 (3-088) - GOVERNOR CONTROLS, WITHOUT CAB (03) - FUEL SYSTEM

1

1332945C1

ROD

- front governor control, VE injection pump

1шт.

1

528334R4

ROD

- front governor control, VA injection pump

1шт.

2

NLS

NO LONGER SERVICED

PIN - cotter, 1/16 x 1/2 inch

3шт.

3

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN - clevis, 1/4 x 0.770 inch

1шт.

4

114492

JAM NUT,Jam, 1/4"-28, G5

- hex jam, 1/4 inch NF, grade 5

1шт.

5

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS - adjustable, 1/4 NF x 1-11/16 inch

1шт.

5

1500842C1

YOKE

CLEVIS - adjustable, Serial Range: optional-116534

1шт.

6

528325R2

ARM

- idler, governor control

1шт.

7

Q1597

WASHER

- plain, 0.406 x 0.734 x 0.056 inch

1шт.

7

20285H

WASHER

- plain, 0.406 x 0.75 x 0.105 inch, Serial Range: optional-Q1597

1шт.

8

539572R2

LEVER

- idler arm

1шт.

9

19313R1

PIN,5/32" x 7/8", Coiled

1шт.

10

539012R1

SPRING

- torsion

1шт.

11

528767R1

ROD ASSY.

ROD - pull, bellcrank

1шт.

12

528775R1

ROD

- pick-up, foot accelerator

1шт.

13

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

2шт.

14

528776R1

NUT

- swivel, foot accelerator pick-up rod

1шт.

15

191474

BALL JOINT

JOINT - ball, 1/4 inch NF, type C

1шт.

15

19318R1

BALL JOINT

JOINT - ball, 1/4 inch NF, type F, Serial Range: optional-191474

1шт.

15

192227

BALL JOINT

JOINT - ball, 1/4 inch NF, type A, Serial Range: optional-191474

1шт.

15

27258R1

BALL JOINT

JOINT - ball, 1/4 inch NF, type G, Serial Range: optional-191474

1шт.

16

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

17

120367

NUT,Hex, 1/4" - 28, Gr 5

- hex, 1/4 inch NF, grade 5

1шт.

18

402584R1

BUTTON

KNOB control handle

1шт.

18

1536683C1

HANDLE GRIP

KNOB control handle, new

1шт.

1536684C1

SPACER

RING, new

1шт.

19

3121391R3

ROD

- control handle

1шт.

19

3121391R5

ROD

LEVER short, 387 mm

1шт.

19

1343240C3

LEVER

long, 526 mm

1шт.

20

528290R1

GUIDE RING

COLLAR - control handle

1шт.

21

222335

SET SCREW,Hex Soc, #8-32 x 3/8"

SCREW - set, hex socket, No. 8 x 3/8 inch

1шт.

22

720631R1

LINCH PIN

PIN - quick attach, cotter

1шт.

23

528291R3

ARM ASSY.

ARM - governor control rod

1шт.

24

3123275R1

FRICTION WASHER

DISC - governor control friction

2шт.

25

1332789C1

PLATE

- friction backing

1шт.

26

1500778C1

DISC

- spring, 24.4 x 12.9 x 0.90 mm

4шт.

27

22187R1

WASHER

- flat, 17/32 x 1-1/8 x 3/64 inch

1шт.

28

894980H1

LOCK NUT

- hex, self-locking, 1/2 inch NF

1шт.

29

533592R1

PRODUCT GRAPHIC

DECAL - governor control

1шт.
