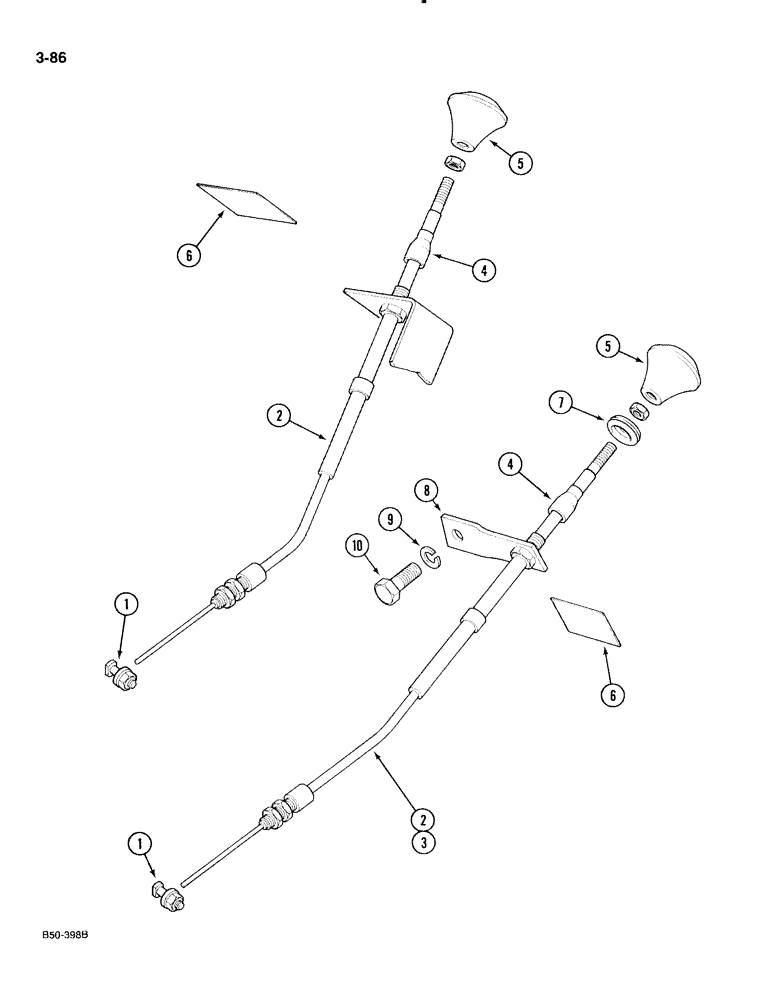

Запчасти Case IH 885 (3-086) - FUEL SHUT OFF CONTROL, WITHOUT CAB (03) - FUEL SYSTEM

1

787190R1

COLLAR

PIVOT - fuel shut-off lever

1шт.

2

3234947R2

CABLE

- fuel shut-off control, VA injection pump

1шт.

2

1333179C1

CABLE

- fuel shut-off control, 1254 mm

1шт.

VE injection pump, prior to engine S/N 26399

1шт.

3

1333003C1

CABLE ASSY.

CABLE - fuel shut-off control, 980 mm

1шт.

VE injection pump, engine S/N 26399 and after

1шт.

4

1288353C1

BOOT

- rubber

1шт.

5

3221357R1

BUTTON

KNOB - fuel shut-off control

1шт.

6

1135126R2

DECAL

- fuel control, VA injection pump

1шт.

1333014C1

DECAL

- fuel control

1шт.

VE injection pump, prior to engine S/N 26399

1шт.

VE injection pump, engine S/N 26399 and after

1шт.

7

1333007C1

GROMMET

- diaphram, 3/4 inch

1шт.

VE injection pump, engine S/N 26399 and after

1шт.

8

1333002C1

BRACKET

- mounting, fuel shut-off control

1шт.

VE injection pump, engine S/N 26399 and after

1шт.

1536068C1

SUPPORT

BRACKET mounting, new

1шт.

9

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- hex, 3/8 NC x 3/4 inch, grade 5

1шт.
