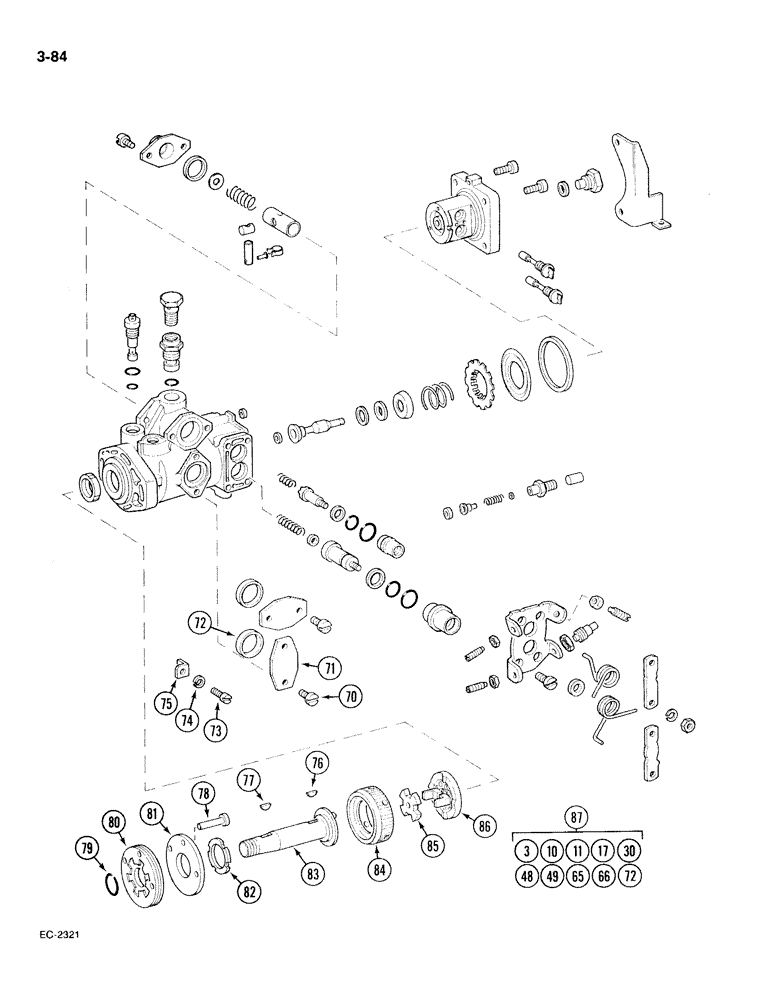

Запчасти Case IH 885 (3-084) - FUEL INJECTION PUMP, V.A. (CONTD) (03) - FUEL SYSTEM

3228395R91

PUMP

- fuel injection, VA 4/11H 1200 CR93/3, Includes: Ref. 70 thru 86 in this figure and parts in Figures 3-078 thru 3-082

1шт.

70

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, pan head, M6 x 12 mm, class 8.8

2шт.

71

3078486R1

COVER

- timing window

1шт.

72

3078485R1

RING

- packing, timing window cover

1шт.

Part of Injection Pump Gasket Kit, P/N 3078526R91

1шт.

73

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- machine, pan head, M4 x 5 mm

1шт.

74

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm

1шт.

75

3132598R1

INDICATOR

POINTER - timing

1шт.

76

3132395R1

KEY

- woodruff

1шт.

77

3079101R1

WOODRUFF KEY

KEY - woodruff

1шт.

78

3078477R1

BOLT,CSK

- supporting ring

2шт.

79

3078474R1

RING

- retaining

1шт.

80

3078475R91

PUMP

- charge

1шт.

81

3078476R1

RING

- support, charge pump

1шт.

82

3078479R1

THRUST WASHER

- thrust roller retainer

1шт.

83

3078473R1

SHAFT

- drive

1шт.

84

3078478R91

RETAINER

- roller assembly

1шт.

85

3059007R1

DISC

- cam face, cross type

1шт.

86

3078480R1

CAM

- face

1шт.

87

3078526R91

GASKET KIT

KIT - gasket, injection pump, Includes: Ref. 3, 10, 11 and 17 in Figure 3-078, Ref. 30 in Figure 3-080, Ref. 48, 49, 65, and 66 in Figure 3-082, and Ref. 72 in this figure

1шт.
