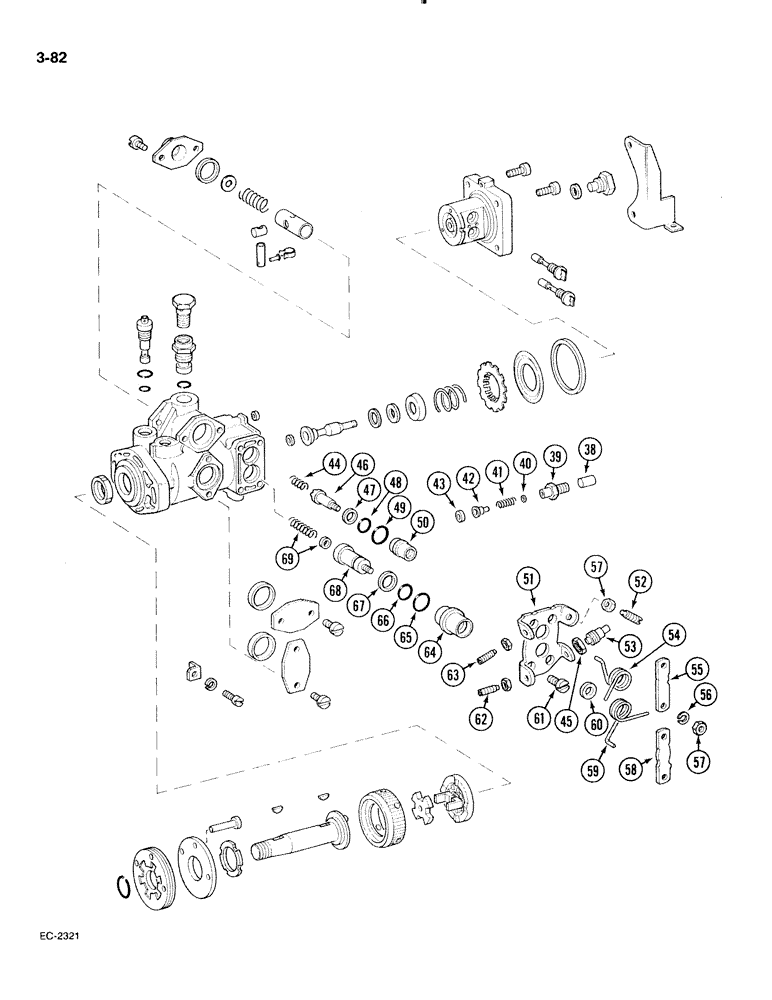

Запчасти Case IH 885 (3-082) - FUEL INJECTION PUMP, V.A. (CONTD) (03) - FUEL SYSTEM

3228395R91

PUMP

- fuel injection, VA 4/11H 1200 CR93/3, Includes: Ref. 38 thru 69 in this figure and parts in Figures 3-078, 3-080 and 3-084

1шт.

38

3079097R2

CAP

- protection

4шт.

39

3079109R1

HOLDER

- delivery valve

4шт.

40

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

- delivery valve

4шт.

41

3132408R1

SPRING

- delivery valve

4шт.

42

3079160R1

VALVE

- delivery

4шт.

43

3078362R1

SEALING WASHER

- delivery valve

4шт.

44

3078555R1

SPRING

- throttle

1шт.

45

3079141R1

NUT

- hex, stop screw

1шт.

46

3078517R1

SHAFT

- throttle

1шт.

47

3078519R1

WASHER

- throttle shaft

1шт.

48

3078354R1

O-RING,2mm Thk x 6.5mm ID

- throttle shaft

1шт.

Part of Injection Pump Gasket Kit, P/N 3078526R91, Figure 3-084

1шт.

49

785602R1

O-RING

- control plunger and throttle shaft bushing

1шт.

Part of Injection Pump Gasket Kit, P/N 3078526R91, Figure 3-084

1шт.

50

3078556R1

BUSHING

- throttle shaft

1шт.

51

3078557R1

PLATE

- stop

1шт.

52

3132885R1

BOLT

- stop

1шт.

53

3132251R1

STOP LOCK

SCREW - stop

1шт.

54

3132588R1

SPRING

- torsion throttle shaft

1шт.

55

3132590R1

LEVER

- throttle

1шт.

55

3132591R1

LEVER

- throttle, Serial Range: optional-3132590R1

1шт.

56

933987R1

LOCK WASHER,M6

WASHER - lock, 6 mm

2шт.

57

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

- hex, 6 mm, class 8

4шт.

58

3059077R1

LEVER

- control plunger

1шт.

58

3059078R1

LEVER

- control plunger, Serial Range: optional-3059077R1

1шт.

59

3132589R1

SPRING

- torsion control plunger shaft

1шт.

60

3059076R1

WASHER

- control plunger shaft

1шт.

61

931320R1

SCREW,M6 x 12mm, Cl 8.8

- flat head, M6 x 12 mm

4шт.

62

3059074R1

SCREW

- stop

1шт.

63

3136136R1

SCREW

- stop

1шт.

64

3078524R1

BUSHING

1шт.

65

785602R1

O-RING

- control plunger and throttle shaft bushing

1шт.

Part of Injection Pump Gasket Kit, P/N 3078526R91, Figure 3-084

1шт.

66

3078363R1

O-RING

- control plunger shaft

1шт.

Part of Injection Pump Gasket Kit, P/N 3078526R91, Figure 3-084

1шт.

67

3078523R1

WASHER

- control plunger shaft

1шт.

68

3078521R1

SHAFT

- control plunger

1шт.

69

3078610R1

PACKAGE

KIT - service, control plunger spring

1шт.
