(3-080) - FUEL INJECTION PUMP, V.A. (CONTD)

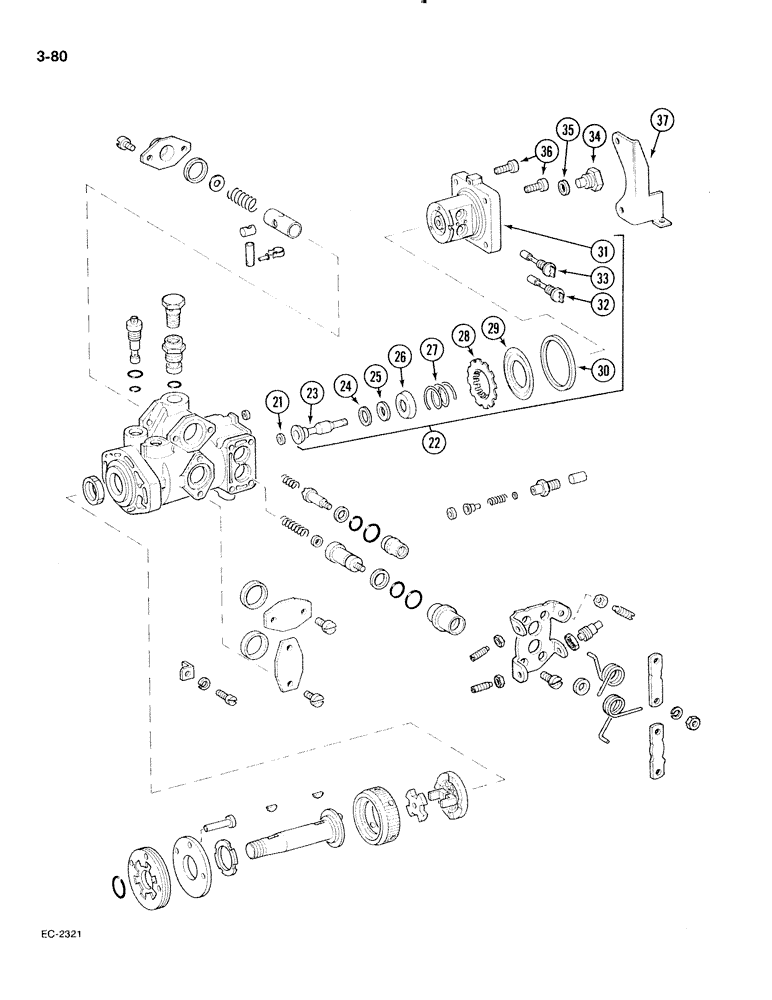

Запчасти Case IH 885 (3-080) - FUEL INJECTION PUMP, V.A. (CONTD) (03) - FUEL SYSTEM

№

Артикул

Название

Примечание

Количество

3228395R91

PUMP

- fuel injection, VA 4/11H 1200 CR93/3, Includes: Ref. 21 thru 37 in this figure and parts in Figures 3-078, 3-082 and 3-084

1шт.

21

3078785R2

WASHER

- 2.28 mm

1шт.

21

3078787R2

WASHER

- 2.32 mm

1шт.

21

3078789R2

WASHER

- 2.36 mm

1шт.

21

3078791R2

WASHER

- 2.40 mm

1шт.

21

3078793R2

WASHER

- 2.44 mm

1шт.

21

3078795R2

WASHER

- 2.48 mm

1шт.

21

3078797R2

WASHER

- 2.52 mm

1шт.

21

3078799R2

WASHER

- 2.56 mm

1шт.

21

3078801R2

WASHER

- 2.60 mm

1шт.

21

3078803R2

WASHER

- 2.64 mm

1шт.

21

3078805R2

WASHER

- 2.68 mm

1шт.

21

3078807R2

WASHER

- 2.72 mm

1шт.

21

3078809R2

WASHER

- 2.76 mm

1шт.

21

3078811R2

WASHER

- 2.80 mm

1шт.

21

3078813R2

WASHER

- 2.84 mm

1шт.

21

3078815R2

WASHER

- 2.88 mm

1шт.

22

3079107R91

HEAD

- distributor, Includes: Ref. 23 - 33

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

24

3078540R1

WASHER

- plunger, 1.35 mm

1шт.

24

3078541R1

WASHER

- plunger, 1.60 mm

1шт.

24

3078542R1

WASHER

- plunger, 1.85 mm

1шт.

25

3078537R1

WASHER

- plunger, 1.65 mm

1шт.

25

3078571R1

WASHER

- plunger, 2.35 mm

1шт.

26

3078516R1

SEAT

- spring plunger

1шт.

27

3078515R1

SPRING

- plunger

1шт.

28

3078576R1

SPRING WASHER

- spring

1шт.

29

3078578R1

FILTER, FUEL

FILTER

1шт.

30

3078366R1

O-RING

- distributor head

1шт.

Part of Injection Pump Gasket Kit, P/N 3078526R91, Figure 3-084

1шт.

31

NSS

NOT SOLD SEPARAT

HEAD

1шт.

32

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

33

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

34

3078514R1

PLUG

1шт.

35

3078915R1

RING

- packing

1шт.

36

3078600R1

SCREW

- pump to distributor head

4шт.

37

3078549R1

SUPPORT

BRACKET - support, fuel shut-off cable

4шт.
